Contact us to receive an offer.
| Manufacturer | PINACHO |
|---|---|
| Model | SE 325x2000x80 |
| Year | 2017 |
| Location | Italy
|

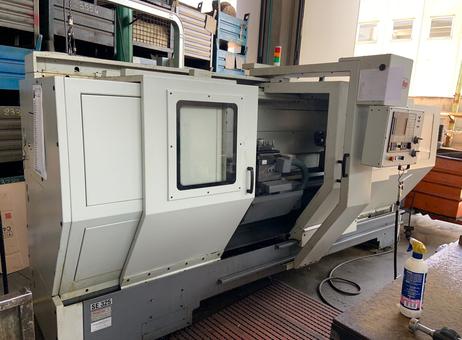

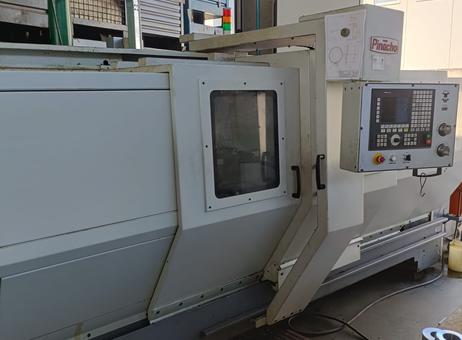

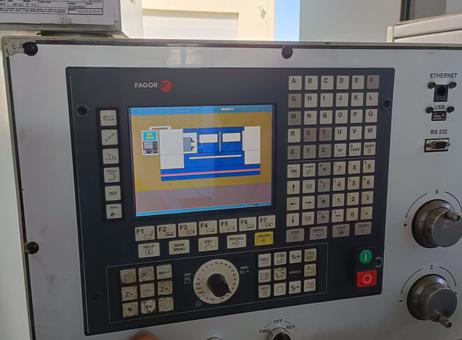

This listing features a PINACHO CNC lathe, model SE 325x2000x80, manufactured in 2017. The machine is equipped with a FAGOR 8055 CNC control panel, which includes a display screen and various operational buttons, knobs, and an emergency stop, providing a comprehensive interface for precision machining tasks.
The lathe has a center height of 325 mm and a center distance of 2000 mm, with a turning length suitable for a variety of medium-sized workpieces. It offers a spindle bore diameter of 80 mm, enabling the machining of sizable bars. The turning speed ranges up to 1700 rpm, powered by a 7.5 kW spindle motor. The spindle features a self-centering design with an A2-8 spindle nose and a Morse taper MT5.
The machine's bed diameter is 595 mm, and the diameter above the transversing slide is 450 mm, allowing for versatile turning operations. It includes an automatic rotating turret with four positions, enhancing tooling flexibility and operational efficiency.

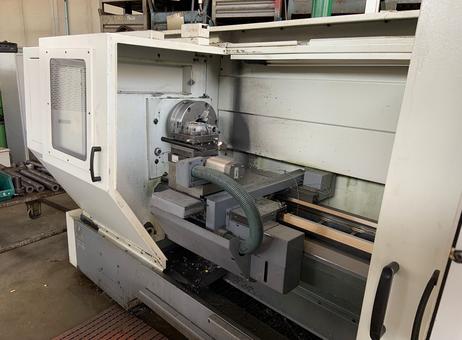

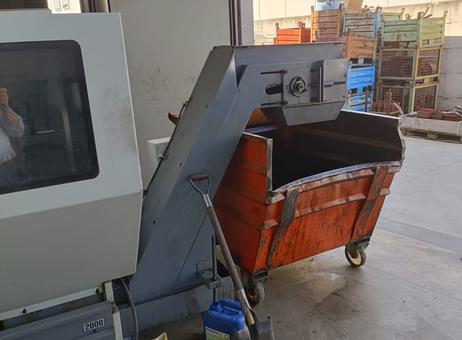

The lathe is housed within an enclosed work area with a viewing window, providing safety and visibility during machining. A green flexible hose is attached near the cross slide area, likely serving coolant or chip removal functions. Additionally, there is a chip conveyor system with an orange collection bin beneath, facilitating efficient chip evacuation.
The machine dimensions are approximately 3850 mm in length, 1350 mm in width, and 1810 mm in height, with a weight of 2600 kg. The machine appears clean with some signs of use, including minor dirt and usage marks, but no visible structural damage. Some black discoloration or residue is present inside the work area on the back wall, and a small liquid spill and tools are noted near the chip conveyor.
Included with the machine are the use and maintenance manual, wiring diagrams, EC declaration, and integral fairing protections. This CNC lathe is suitable for various turning applications requiring precision and flexibility in an industrial setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Used CNC self-learning lathe
"PINACHO Mod. SE 325x2000x80 "
and CNC FAGOR 8055
MACHINE ACCESSORIES:
-Automatic rotating turret 4 positions
-Self-centering spindle
-Use and maintenance manual and wiring diagrams
-EC declaration
-Protections with integral fairing
Center Height: 325 mm
Center Distance: 2000 mm
Diameter Over the Bench: 652 mm
Width of Bench: 350 mm
Diameter On Carriage: 595 mm
Diameter On Transverse Slide: 450 mm
Transverse Slide: 300 mm
Bar Passage: 80 mm
Spindle Nose: A2-8 / C. L. 8"
Spindle Morse Taper Mt: 5
Rotation Speed: n.3 / 30-1700 min-1
Motor Power: 7.5 kW
Machine Dimensions: 3850x1350x1810H mm
Machine Weight: 2600 Kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
