Contact us to receive an offer.
| Manufacturer | Partena-Cam |
|---|---|
| Model | M 82/BF |
| Year | 1990 |
| Location | Italy
|
| Category | Blister machines |
| Cycle/min | 50 |
| Engine Power | 4.5 kW |
| Length x width x height | 3470.0 × 500.0 × 1400.0 |
| Weight | 1800 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 19/10/2026 |
| Product id | P60208176 |
| Language |
Partena-Cam M 82/BF
Blistrovací stroj Partena-Cam M 82/BF
Partena-Cam M 82/BF
Partena-Cam M 82/BF Blistermaschine
Partena-Cam M 82/BF
PARTENA-CAM Mod. M 82/BF - AUTOMATIC BLISTERING MACHINE
Máquina blister Partena-Cam M 82/BF
Blistéreuse Partena-Cam M 82/BF
Partena-Cam M 82/BF
Partena-Cam M 82/BF
PARTENA-CAM Mod. M 82/BF - BLISTERATRICE AUTOMATICA
Partena-Cam M 82/BF
Partena-Cam M 82/BF
Blistrownica Partena-Cam M 82/BF
Partena-Cam M 82/BF
Partena-Cam M 82/BF
Partena-Cam M 82/BF Блистеровочная машина
Partena-Cam M 82/BF
Partena-Cam M 82/BF
Blister ambalaj makinesi Partena-Cam M 82/BF
|

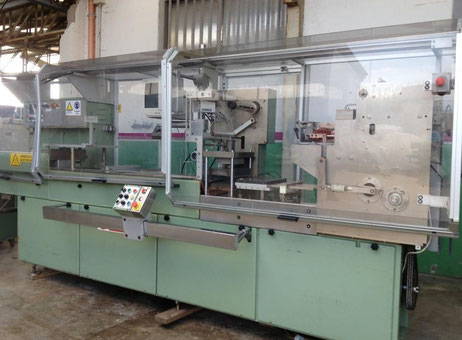

This Partena-Cam M 82/BF is an automatic industrial blister packaging machine designed primarily for pharmaceutical applications, particularly suitable for packaging tablets, capsules, or lozenges in unit-dose blister packs. Manufactured in 1990, the machine measures 3470 mm in length, 500 mm in width, and 1400 mm in height, with a net weight of 1800 kg. It operates at a cycle speed of up to 50 cycles per minute and is powered by a 4.5 kW engine.
The machine features a form-fill-seal process that forms blister packs from flat sheet or film, fills them with the product, and seals them on the same equipment. It is pneumatically operated and controlled via a programmer that manages two motor speeds to optimize packaging cycles. The machine includes multiple workstations such as preheating, forming, loading, closing, and cutting stations to ensure a streamlined packaging process.

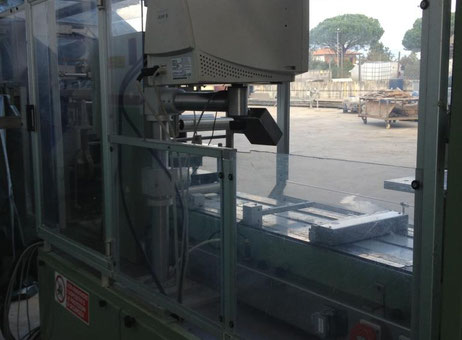

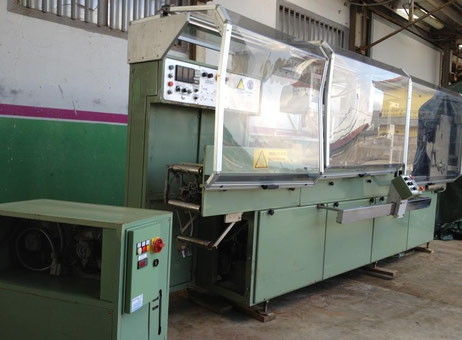

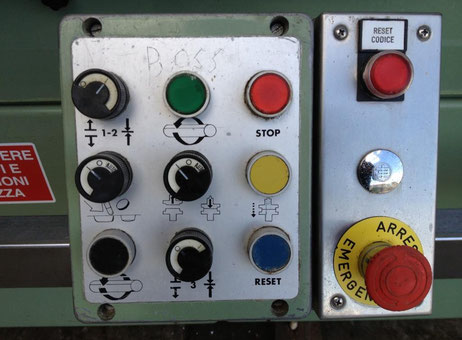

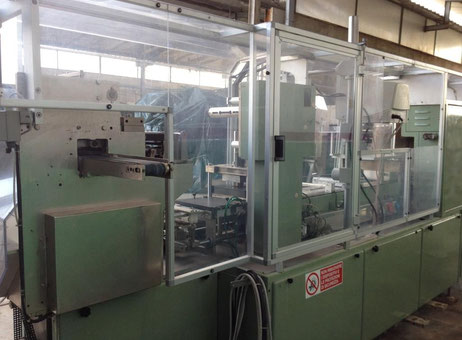

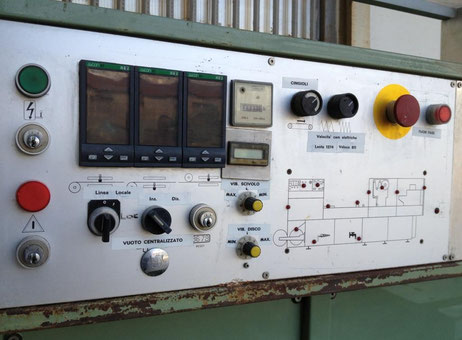

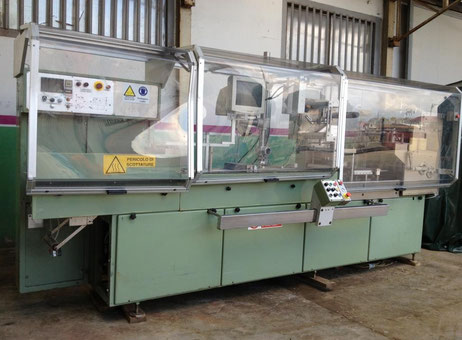

Safety and usability are key design aspects; the machine is equipped with transparent protective covers that provide visibility of the mechanical parts inside while protecting operators. Warning labels indicate potential burn hazards, emphasizing operator safety. The control panel is located on the right side and includes multiple buttons, dials, and emergency stop functions, allowing for straightforward operation and quick response in emergencies.
The machine is designed to accommodate blister packages that hold 10 ampoules of types 1 ml, 2 ml, and tubular injection ampoules. It supports a wide range of packaging materials, including polypropylene and aluminum, aiming to minimize packaging material waste and noise during operation. The design facilitates easy access to all stations, simplifying cleaning and maintenance tasks. Additionally, a cooling unit with fans is positioned adjacent to the main machine to support operational stability.
This blister machine is suitable for pharmaceutical and food industries, including dairy farming applications, where reliable and efficient packaging is required. Its robust construction and comprehensive safety features make it a practical solution for high-output packaging needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
DESCRIPTION:
Blister packs are commonly used as unit-dose packaging for pharmaceutical tablets, capsules or lozenges. Blister packs can provide barrier protection for shelf life requirements, and a degree of tamper resistance, they are created by means of a form-fill-seal process at the pharmaceutical company or designated contract packer. A form-fill-seal process means that the blister pack is created from rolls of flat sheet or film, filled with the pharmaceutical product and closed (sealed) on the same equipment. Partena S.p.A. has many years experience in the packaging of the blister, primarily in the pharmaceutical sector.
SECTORS OF USE:
Suitable for the use in food industries, specifically for the dairy farming.
MAIN FEATURES:
Designed and built in perfect harmony with the most demanding needs, provides users with a solution to all problems of packaging (maximum output, minimum packaging material waste, large range of packaging materials including also polypropylene, aluminum) environment (minimum noise, smoke extraction, simplified lubrication system), management (rational design of controls, maximum simplicity in the format changes, reduced scheduled maintenance, preparation design for connection with any tipe of machine).

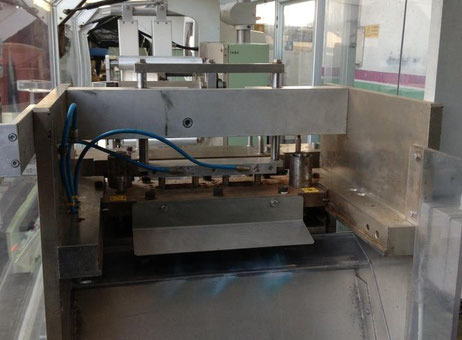

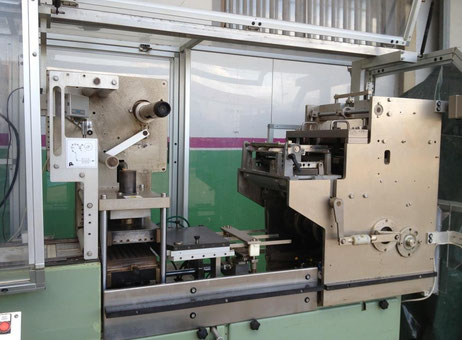

Workstations: preheating, forming, loading, closing and cutting station. The machine is pneumatically operated, the working cycle is obtained by means of a programmer operated by two motors for the choice of the two speeds of the packaging machine. All the stations are remarkably easy to access and all the movements are fully visible so that the line is very straightforward to clean. This machine is equipped with various safety devices to protect the operator. Current format: blister package which accommodates 10 ampoules type 1 ml, 2 ml and tubular injection ampoules.
Year of construction: 1990
TECHNICAL DATA
Length mm 3470
Width mm 500
Height mm 1400
Net weight Kg 1800
Water consumption l/h 350
Air consumption Nl/min 550
Frequency Hz 50
Voltage Volt 380
Potenza max. installata KVA 4,5
Cutting device quick shear
Closing screening type CM 120 P08
Contratura print stretching aluminum
Control product presence CF 45
loaders ampoules
Beats per min (format dependent) 50
Format PF 1067/1
Step up to 156 mm
Belt width max 225 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| partena-cam-m-82bf-p60208176_16.pdf | Download |
| Client type | Machinery dealer |
| Active since | 2009 |
| Offers online | 1275 |
| Last activity | Oct. 27, 2026 |
DESCRIPTION:
Blister packs are commonly used as unit-dose packaging for pharmaceutical tablets, capsules or lozenges. Blister packs can provide barrier protection for shelf life requirements, and a degree of tamper resistance, they are created by means of a form-fill-seal process at the pharmaceutical company or designated contract packer. A form-fill-seal process means that the blister pack is created from rolls of flat sheet or film, filled with the pharmaceutical product and closed (sealed) on the same equipment. Partena S.p.A. has many years experience in the packaging of the blister, primarily in the pharmaceutical sector.
SECTORS OF USE:
Suitable for the use in food industries, specifically for the dairy farming.
MAIN FEATURES:
Designed and built in perfect harmony with the most demanding needs, provides users with a solution to all problems of packaging (maximum output, minimum packaging material waste, large range of packaging materials including also polypropylene, aluminum) environment (minimum noise, smoke extraction, simplified lubrication system), management (rational design of controls, maximum simplicity in the format changes, reduced scheduled maintenance, preparation design for connection with any tipe of machine).
Workstations: preheating, forming, loading, closing and cutting station. The machine is pneumatically operated, the working cycle is obtained by means of a programmer operated by two motors for the choice of the two speeds of the packaging machine. All the stations are remarkably easy to access and all the movements are fully visible so that the line is very straightforward to clean. This machine is equipped with various safety devices to protect the operator. Current format: blister package which accommodates 10 ampoules type 1 ml, 2 ml and tubular injection ampoules.
Year of construction: 1990
TECHNICAL DATA
Length mm 3470
Width mm 500
Height mm 1400
Net weight Kg 1800
Water consumption l/h 350
Air consumption Nl/min 550
Frequency Hz 50
Voltage Volt 380
Potenza max. installata KVA 4,5
Cutting device quick shear
Closing screening type CM 120 P08
Contratura print stretching aluminum
Control product presence CF 45
loaders ampoules
Beats per min (format dependent) 50
Format PF 1067/1
Step up to 156 mm
Belt width max 225 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
