PANHANS 245 Spindle moulder
| Manufacturer | PANHANS |
|---|---|
| Model | 245 |
| Year | 2013 |
| Location | Germany
|
| Category | Moulders - Spindle moulding machines |
| Spindle Ø | 30 mm |
| Max. spindle speed | 9000 rpm |
| Table length | 1100 mm |
| Table width | 760 mm |
| Engine power | 5.5 kW |
| Length x width x height | 5000.0 × 2800.0 × 880.0 |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Product id | P260323432 |
| Language |
Фреза с долен шпиндел PANHANS 245
Spodní frézka PANHANS 245
PANHANS 245 Spindelfræser
PANHANS 245 Tischfräse
Φρέζα με κάθετο άξονα PANHANS 245
PANHANS 245 Spindle moulder
Tupí PANHANS 245
Toupie PANHANS 245
Donjovretena glodalica PANHANS 245
PANHANS 245 Alsómaró
Toupie PANHANS 245
PANHANS 245 Apatinio veleno frezavimo staklės
PANHANS 245 Tafelfrees
Frezarka dolnowrzecionowa PANHANS 245
Tupia PANHANS 245
Mașină de frezat cu ax vertical PANHANS 245
PANHANS 245 Фрезерный станок с нижним шпинделем
Donjovretena glodalica PANHANS 245
PANHANS 245 Spindelfräs
Alt milli freze makinesi PANHANS 245
|

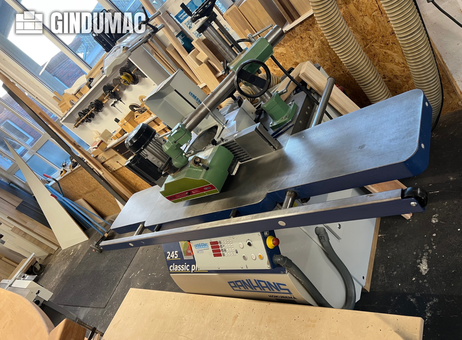

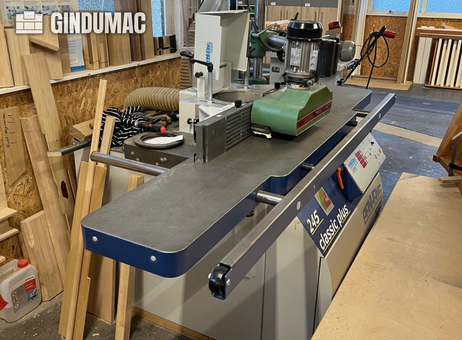

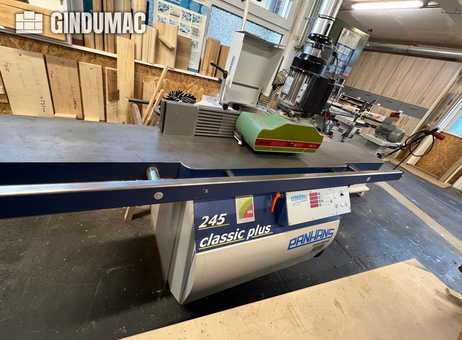

This PANHANS 245 spindle moulder, manufactured in 2013, is a robust woodworking machine designed for precision and versatility. It features a large metal table measuring 1100 × 760 mm with rounded edges and metal guide rails on both sides, providing stable support and accurate material guidance during operation. The machine's overall required space is approximately 5000 × 2800 mm, with a height of 880 mm.
The spindle has a diameter of 30 mm and offers a maximum speed of 9000 rpm, with selectable speeds at 3000, 4500, 6000, and 9000 rpm to accommodate various woodworking applications. The spindle height adjustment allows for a range of 125 mm, and the tilting range extends from -5° to +45.5°, enabling complex shaping tasks.

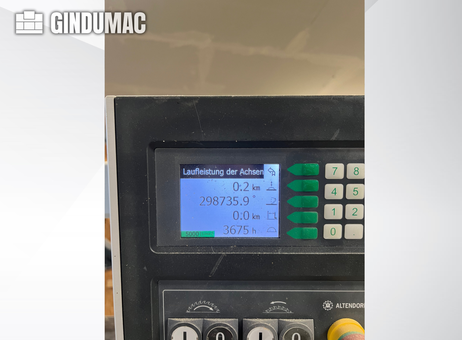

Powered by a 5.5 kW motor operating on 400 V, 50 Hz, and 3-phase AC current, this machine is equipped with a green spindle motor mounted on the table surface. It includes a control panel with buttons, a numeric keypad, and a display screen that shows machine usage data, including operating hours, which total 3,675 hours.
For dust extraction, the machine has two 120 mm extraction connections, with a dust extraction hose connected at the back and spindle motor area, helping maintain a cleaner working environment.
The machine weighs approximately 880 kg and has noise levels of 67.4 dB(A) when idle and 82.4 dB(A) during operation. The sound power levels are 83.0 dB(A) idle and 91.2 dB(A) working.
Overall, the PANHANS 245 spindle moulder is presented in clean and well-maintained condition, with minor signs of use visible on the surface and table. It is situated in a woodworking workshop environment and offers reliable performance for professional woodworking tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Spindle moulder manufactured in 2013. This PANHANS 245 features a robust table size of 1100 × 760 mm and a spindle height adjustment of 125 mm. It operates at spindle speeds of 3000, 4500, 6000, and 9000 rpm, making it suitable for various woodworking applications. If you are looking to get high-quality woodworking capabilities, consider the PANHANS 245 spindle moulder we have for sale. Contact us for further details.Voltage: 400 V
Frequency: 50 Hz
Phases: 3
Current type: AC
Motor power: 5.5 kW
Spindle speeds: 3000 / 4500 / 6000 / 9000 rpm
Table size: 1100 × 760 mm
Table height: 880 mm
Spindle height adjustment: 125 mm
Spindle diameter: 30 mm
Tilting range: −5° to +45.5°
Extraction connection: 2 × 120 mm
Required space: approx. 5000 × 2800 mm
Noise level (idle): 67.4 dB(A)
Noise level (working): 82.4 dB(A)
Sound power level (idle): 83.0 dB(A)
Sound power level (working): 91.2 dB(A)
Operating hours: 3,675 h
Machine Weight: 880 kg
Spindle Power: 5.5 kW
Spindle Speed: 9000 RPM
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
