| Manufacturer | Outros / GTurn |
|---|---|
| Model | SZ-256F |
| Year | 2024 |
| Location | Portugal
|

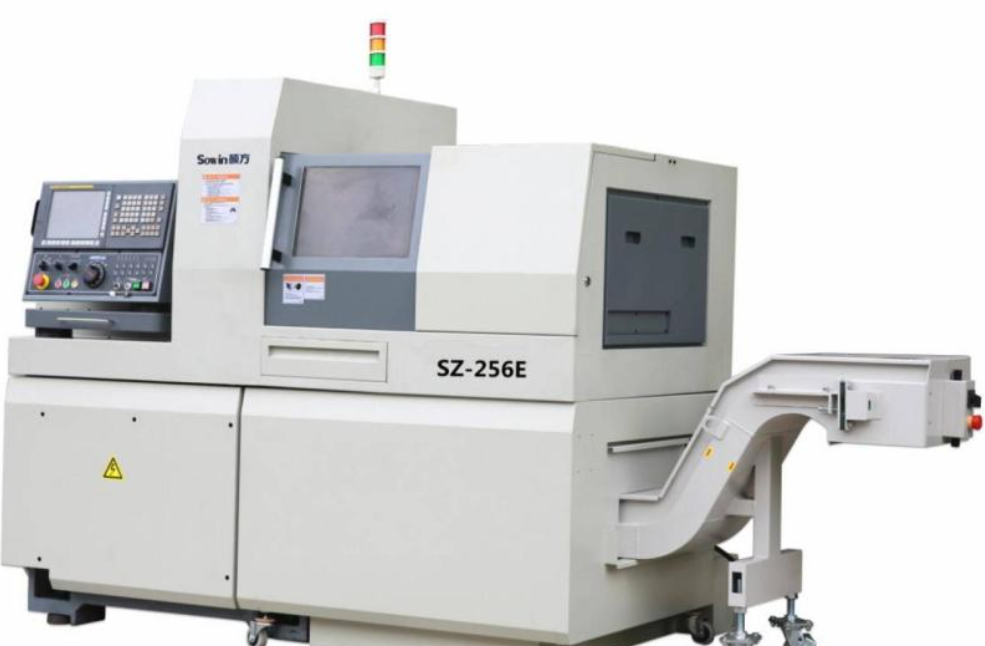

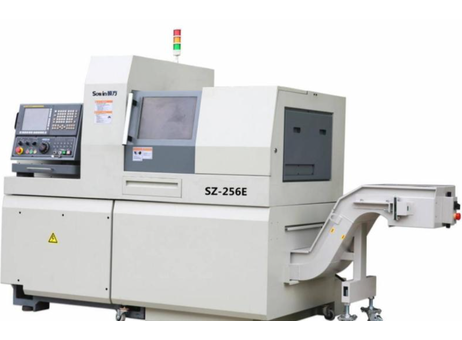

GT urn SZ-256F sliding headstock lathe, manufactured in 2024 and listed as new. The machine is available in stock and offered on an as-is, where-is basis. It is equipped with a FANUC 0i-TF Plus CNC control and has a stated maximum turning diameter of 25 mm and maximum turning length of 340 mm. The listed axis travels are 350 mm on X, 340 mm on Y and 240 mm on Z. Feed rate is specified as 30,000 mm/min, and the power connection is listed as 11 kW.

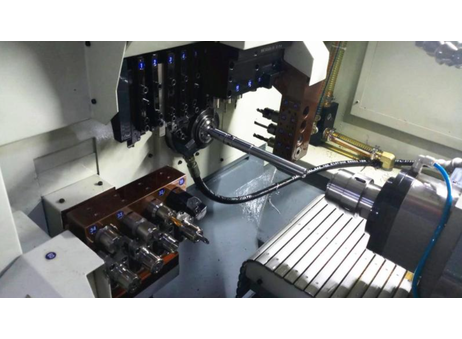

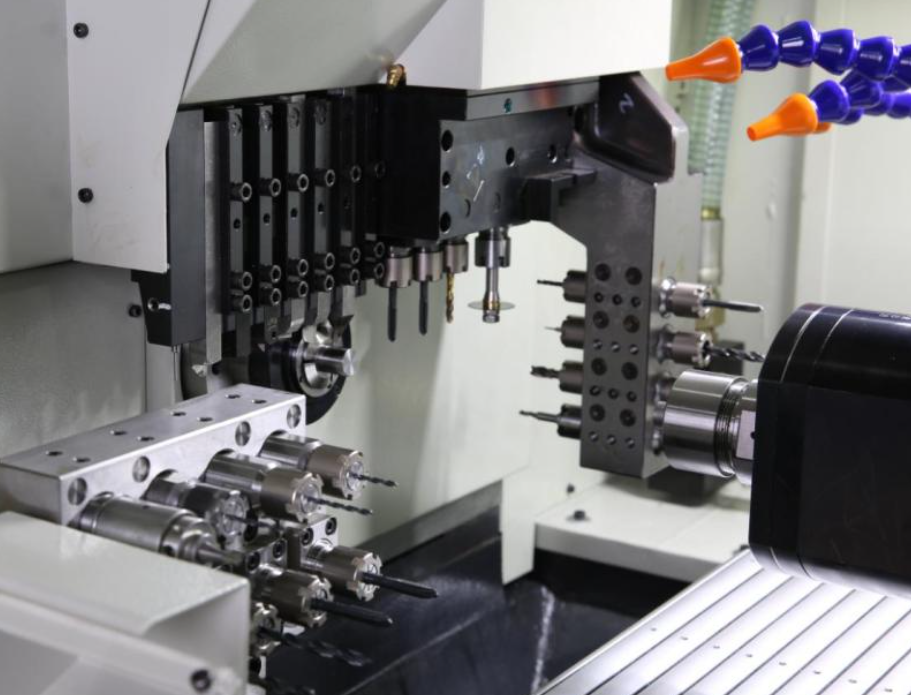

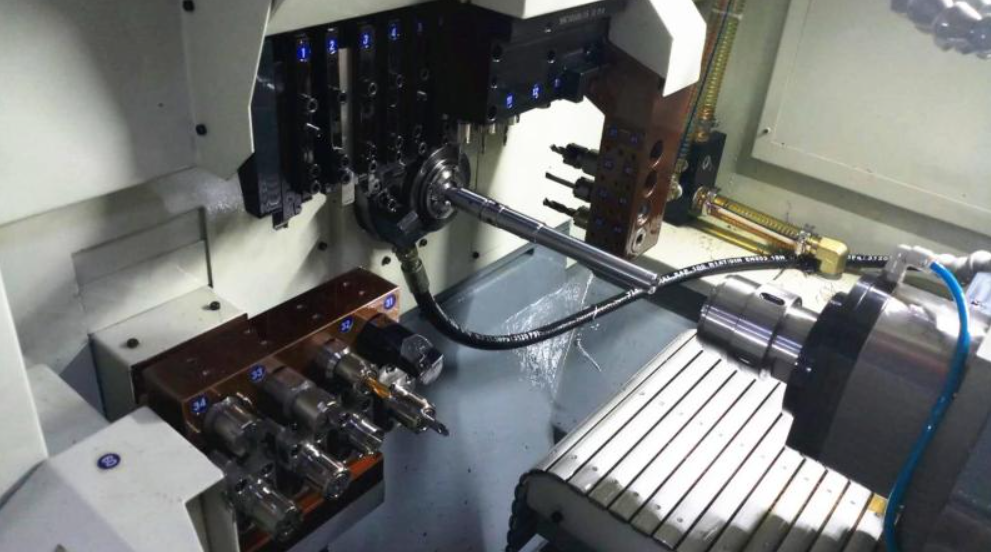

The machine has both a main spindle and a sub-spindle. The main spindle is equipped with five live tools, with a stated live-tool speed of 4,000 rpm. The sub-spindle has a listed turning diameter of 25 mm and three live tools, also specified at 4,000 rpm. A tool turret is included, with a stated capacity of 30. The main support configuration is 6 × 12OD plus 5 × ER16 motorized OD, with 19 static supports. Powered tooling is specified at 4,000 rpm; the milling spindle power is listed as 0.75 kW. The description lists 11 powered tool holders, comprising eight radial and three axial holders.
A belt-type chip extractor is included, with a listed motor power of 3.7 kW and speed of 9,000 rpm. The specified bar feeder is a PRO RAY326, with a stated length of 3 m and maximum bar diameter of 32 mm. These details describe the listed machine configuration and accessories; the sale condition remains as-is, where-is.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: GTurn
Model: SZ-256F
Machine type: Sliding headstock lathe
Year of manufacture: 2024
Condition: New
Availability: In stock
Sale condition: As-is, where-is
CNC control: FANUC 0i-TF Plus
Maximum turning diameter: 25 mm
Maximum turning length: 340 mm
X-axis travel: 350 mm
Y-axis travel: 340 mm
Z-axis travel: 240 mm
Feed rate: 30,000 mm/min
Power connection: 11 kW
Main spindle: Yes
Main spindle live tools: 5
Main spindle live-tool speed: 4,000 rpm
Sub-spindle: Yes
Sub-spindle turning diameter: 25 mm
Sub-spindle live tools: 3
Sub-spindle live-tool speed: 4,000 rpm
Tool turret: Yes
Tool capacity: 30
Main support configuration: 6 × 12OD + 5 × ER16 motorized OD
Static supports: 19
Powered tools: Yes
Powered-tool speed: 4,000 rpm
Milling spindle power: 0.75 kW
Powered tool holders: 11
Radial tool holders: 8
Axial tool holders: 3
Chip extractor: Yes
Chip extractor type: Belt
Chip extractor motor power: 3.7 kW
Chip extractor speed: 9,000 rpm
Bar feeder: PRO RAY326
Bar feeder length: 3 m
Maximum bar diameter: 32 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
