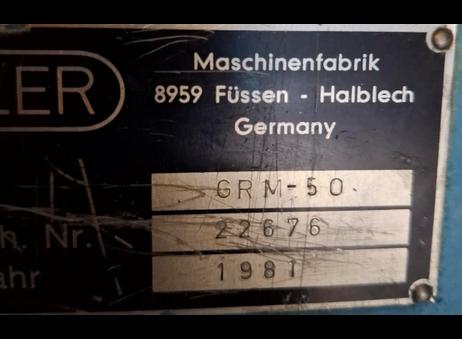

Manufacturer: Otto Bihler KG, Maschinenfabrik (D-8959 Halblech/Füssen, Germany)
Model: GRM 50
Year of Manufacture: 1981
Power: 4.0 kW
Tool Set Length: 400 mm
Description:

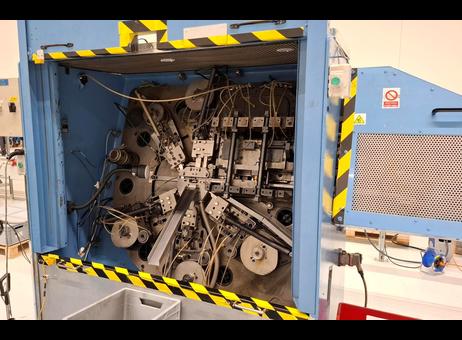

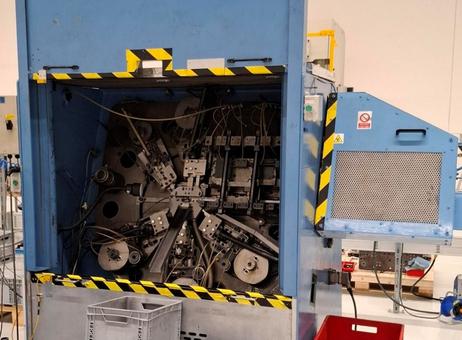

The Bihler GRM 50 is a mechanically cam-driven multi-slide forming machine engineered for the simultaneous cutting, punching, bending, and shaping of parts made from strip and wire materials in a single work cycle. This machine is recognized worldwide for its precision in mass production, effectively replacing the need for separate presses with progressive tooling, bending operations, and manual handling between stations.
The GRM 50 was primarily used with strip material and is currently shut down due to the completion of the project for which it was acquired. This is not due to any malfunction or defect but rather unused capacity. The machine is offered as a complete package, including a noise-reducing cover and a professional Whitelegg HIT 200 HB uncoiler, providing a fully functional workstation.
Key Features:
- Capable of up to 132 cycles per minute, performing feeding, cutting, punching, bending, and shaping simultaneously.
- Equipped with five independent pressing units delivering forces from 80 kN to 250 kN.
- Clamp feed accuracy of ±0.005 mm ensures precise material handling.
- Main motor of 4 kW paired with a continuously adjustable Stöber gearbox.
- Central lubrication system with nine outlets for tools and dies.
Applications:
Ideal for manufacturing clips, clamps, brackets, spring contacts, and shaped wire parts using materials such as spring steel, stainless steel, brass, and copper.
Suitability:
Best suited for manufacturers currently employing a combination of press and bender, those seeking cost-effective production capacity increases, and operations focusing on long production runs of stable parts.
Additional Information:
- Adjustment and setup require an experienced technician.
- Not designed for frequent production changes; optimal for long series.
- Mechanical operation without CNC control; new parts require custom tool sets.
Condition and Sale:

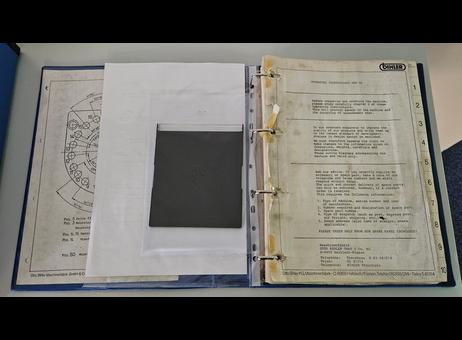

The machine was fully operational before being disassembled and is now sold as-is, without warranties. The original German operating manual is included.
Summary:
This offer includes a proven multi-slide forming system that delivers reliable high-volume production with relatively low tooling investment, making it a valuable asset for suitable manufacturing environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: Otto Bihler KG, Maschinenfabrik (D-8959 Halblech/Füssen, Germany)
Model: GRM 50
Year of Manufacture: 1981
Technical Condition: As-is, where-is
Length of Tool Set: 400.0 mm
Engine Power: 4.0 kW
Description:
The Bihler GRM 50 is a mechanically cam-driven multi-slide forming machine designed for cutting, punching, bending, and shaping parts made of strip and wire – all in a single work cycle. This machine is renowned for its precision in mass forming, effectively replacing the need for a combination of a press with progressive tooling, bending operations, and the handling of parts between these processes.
The GRM 50 was primarily utilized with strip material in our operation, but the project for which it was purchased has concluded. As a result, the machine is currently shut down and ready for new use. This shutdown is not due to any malfunction but rather due to unused capacity.

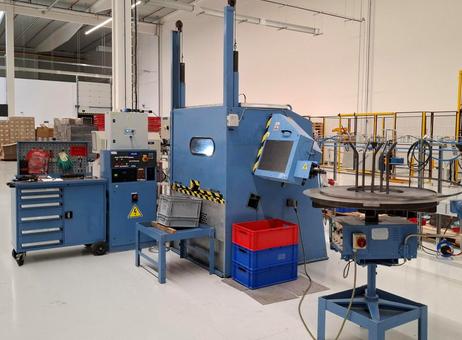

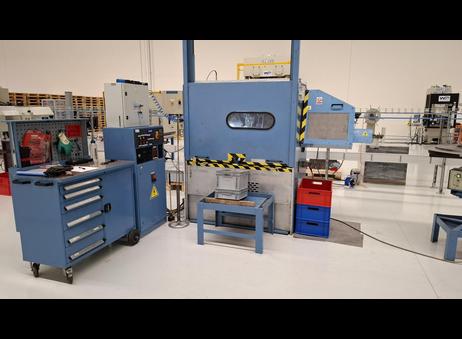

Included in the offer is a complete package featuring a noise-reducing cover and a professional Whitelegg HIT 200 HB uncoiler, creating a fully functional workstation.
Key Features:
- Up to 132 cycles per minute, handling feeding, cutting, punching, bending, and shaping in one cycle.
- Ideal for producing clips, clamps, brackets, spring contacts, and shaped wire parts from materials such as spring steel, stainless steel, brass, and copper.
- Five independent pressing units with forces ranging from 80 kN to 250 kN.
- Clamp feed accuracy of ±0.005 mm.
- Main motor with a power of 4 kW and a continuously adjustable Stöber gearbox.
- Central lubrication system with 9 outlets for tools and dies.
Ideal For:
- Manufacturers of strip parts currently using a combination of press and bender.
- Companies looking to increase production capacity cost-effectively.
- Operations focused on long series of stable parts.
Accessories:
- Noise reduction cover to enhance the working environment and safety.
- Whitelegg HIT 200 HB uncoiler for smooth and stable material feeding.
Considerations:
- Requires an experienced technician for adjustments.
- Not suitable for frequent production changes; best for long series.
- Mechanical machine without CNC control; new parts require custom tool sets.
Condition and Reason for Sale:
The machine was fully functional until the project ended and is now disassembled, making it unavailable for demonstration. It is sold as seen, without any provided or implied warranties. The original German operating manual ("Operating Instructions GRM 50") is included in the original Otto Bihler binder.
Conclusion:
The buyer will acquire a complete functional workstation ready for production. The Bihler GRM 50 is a proven multi-slide system that continues to deliver reliable high-volume production with relatively low tooling investment, even after four decades.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
