| Manufacturer | Otinus |
|---|---|
| Model | PBO-3212-CNC OT-41 - 125x3200 |
| Year | 2025 |
| Location | Poland
|

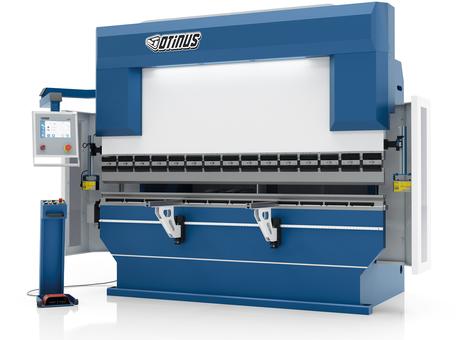

The Otinus PBO-3212-CNC OT-41 is a hydraulic press brake designed for precision bending tasks with a nominal bending force of 1250 kN (125 tons). It supports a maximum bending length of 3200 mm and a throat depth of 320 mm, allowing for versatile sheet metal forming. The machine features a vertical stroke of 120 mm and a daylight opening of 390 mm, providing ample space for various bending operations. The distance between uprights is 2600 mm, and the folding length measures 3200 mm.
Powered by a 7.5 kW motor, this press brake is equipped with a CNC controller, the Otinus OT-41, which includes a large color touchscreen with an intuitive menu. The software can automatically calculate bending angles, and the controller can store up to 2,000 programs with 30 steps each, enhancing productivity and repeatability.
The machine incorporates high-quality components such as Rexroth hydraulic valves, Schneider electrical parts, and Omron and Schneider safety circuit elements. Hydraulic lines are made of steel tubing to minimize leak risks. Safety features include visible safety labels, side guards, rear safety doors, accessible safety switches, and light curtains to protect the operator.
Ergonomically designed, the press brake allows free movement with a mobile foot switch and a controller mounted on a swivel arm. Additional LED lighting ensures clear visibility of workpieces. The machine includes front supports (2 pcs.) and a backgauge with servo motor drive for X-axis travel and manual finger positioning for the R-axis. The ram is also servo motor-driven along the Y-axis.
The press brake measures approximately 3740 mm in length, 1550 mm in width, and 2460 mm in height, weighing around 7025 kg. It is finished in blue and white and appears clean and well-maintained. The control panel with touchscreen is located on the left side, and a foot pedal control is positioned at the bottom left. The upper and lower bending tools are secured with clamps.
Additional features include an oil cooling system to maintain stable performance during extended use, CE marking, and an EU declaration of conformity. The machine comes with a comprehensive manual and includes a specialist support package offering technical consultation, installation, and training.
This press brake is suitable for bending materials up to 6.0 mm thickness (S235) and is designed for professional workshop environments requiring reliable CNC bending capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
A part of our machines is available IMMEDIATELY.
Hydraulic press brake PBO-3212-CNC OT-41
Specifications
Maximum bending thickness (S235): up to 6.0 mm
Nominal bending force: 1250 kN
Maximum bending length: 3200 mm
Throat depth: 320 mm
Maximum stroke: 120 mm
Daylight: 390 mm
Distance between side frames: 2600 mm
Backgauge travel distance: 600 mm
Motor power output: 7.5 kW
Length: 3870 mm
Width: 1550 mm
Height: 2400 mm
Weight: 7900.0 kg
Tools
Front supports: 2 pcs.
Backgauge drive (travel along the X-axis): servo motor
Ram drive (travel along the Y-axis): servo motor
Backgauge fingers positioning (R-axis): manual
Punch quick change tooling system form AMADA
Otinus CNC OT-41 control
The CNC controller Otinus is featured with convenient and intuitive menu. The software calculates the bending angle on its own. The large color touchscreen is readable from any angle.
The controller can store up to 2,000 programs of 30 steps each.
Top quality components
Rexroth hydraulic valve
Schneider electrical components
Omron and Schneider safety circuit parts.
Steel hydraulic line tubings
Hydraulic lines made of steel instead of rubber reduce the risk of future leaks.
Ergonomics
The operator can work freely throughout the machine's working area thanks to the mobile foot switch and the controller on the swivel arm. Additional LED lighting ensures a comfortable view of the workpieces in any situation.
Safety
We attach great importance to the safety of our Clients and their employees; therefore our press brakes are equipped with visible safety labels, side guards, rear safety doors, easily accessible safety switches and light curtains that protect the operator against inserting their hands between the upper and lower dies.
The machines comes with carefully prepared instructions manual.
The machine has a CE marking and EU declaration of conformity.
Oil cooling system
The Oil Cooling System guarantees the stability of the machine's performance even after long, continuous operation.
Assistance by a specialist
We strive to maintain constant communication with our Customers. To support this, every machine purchase includes a specialist support package with hours of expert guidance.
Within the service, our technicians may:
Specify the bending steps for intricate parts.
Advise on material and gas selection
Assist in the selection of operating parameters for different materials
Technical Consultation
Our specialists help select the right machine and accessories based on technical drawings of the parts you plan to produce.
Included in the price
3-day training including machine installation
1 day to 8 hours—machine installation and training
2 day up to 8 hours—independent work on the machine with the assistance of an Otinus technician with possibility of making specific parts used by the Customer—1 day to 8 hours
3 day up to 8 hours—an additional training session online available within 12 months for any questions that may arise during machine operation.
Telephone consultation with an Otinus specialist—8-hour package
from 7:30 a.m. to 9:00 p.m.—8-hour support package valid for 12 months.
Terms of cooperation
The Customer is responsible for the machine during unloading and transport within their facility.
