| Manufacturer | Otinus |
|---|---|
| Model | FLC-3015-12000W |
| Year | |
| Location | USA
|

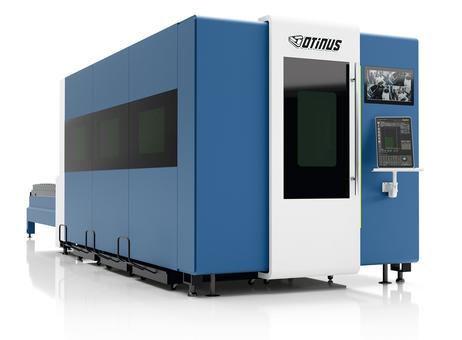

The Otinus FLC-3015-12000W is a fiber laser cutting machine designed for precision and efficiency in industrial applications. It accommodates metal sheets up to 2997.2 mm in length and 1498.6 mm in width, with a maximum cutting thickness of 35.56 mm. Powered by a 12,000 W motor, this machine offers robust performance suitable for cutting various metals.
The machine features a stable welded structure supported by massive legs, ensuring durability and reliability during operation. It incorporates high-quality Fuji Japanese servo drives combined with a bevel rack and pinion drive system, delivering high-speed movement and exceptional cutting accuracy. An automatic grease replenishment system (ABL) maintains the rails, contributing to smooth and consistent operation.
User convenience is enhanced by embedded ball transfer units on the heavy plate surface, facilitating easier handling and loading of materials. Waste collection trolleys with convenient handles aid in the efficient removal of small cut parts. The cutting head is equipped with a RayTools auto-focus system, optimizing the cutting process.
Control is managed via a panel featuring a screen, keyboard, and mouse, running Windows and CypCut software with lifetime licenses. This software supports part programming, file import/export, and adjustment of power output and cutting speed. Additionally, a wireless remote control allows for flexible operation of the laser head.
Safety features include emergency lights and an audible alarm system to alert operators in hazardous situations. The machine is enclosed in a blue and white housing with multiple dark tinted windows and a front door with a window and handle for interior access. A mounted monitor above the control panel displays multiple camera views to assist in monitoring operations. The machine rests on adjustable feet and includes multiple access panels along its lower sides. The large metal grate bed extends from the rear, providing ample space for material placement.
Overall, the Otinus FLC-3015-12000W is a well-maintained, clean fiber laser cutter offering advanced features for precise metal cutting tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!
Specifications
-Maximum sheet size: 9.84 × 4.92 ft
-X/Y positioning accuracy: ±0.05 mm/m
-X/Y positioning repeatability: ±0.03 mm
-Maximum travel speed: 393.70 ft/min
-Maximum acceleration: 1.5 G
-Motor power output: 12.0 kW
-Energy consumption: 73.0 kW
-Source brand: Raycus or MAX Photonics to choose from
-Input voltage: ~3×400 V 50 Hz
-Ingress protection rating: IP54
Cutting thickness
-Carbon steel: recommended thickness 1 3/8 in, maximum thickness 1 3/8 in
-Stainless steel: recommended thickness 1 in, maximum thickness 1 in
-Aluminum: recommended thickness 11/16 in, maximum thickness 11/16 in
-Brass: recommended thickness 11/16 in, maximum thickness 11/16 in
Structure
The machine is very stable due to its welded structure on massive legs. Fuji Japanese servo drives with robust bevel rack and pinion drive ensure high speed and exceptional accuracy of the cutting head.
The ABL system automatically replenishes the grease in the rails.
User-friendliness
The fiber laser cutter is fully adapted to the needs of the user, ensuring maximum comfort during its operation. The heavy plates are made easier to handle with ball transfer units embedded in the surface, allowing the plates to roll smoothly during loading. Collecting small parts is much easier thanks to the waste collection trolleys, which can be pulled out using a convenient handle.
RayTools cutting head with auto-focus.
Control panel
The control of the fiber laser occurs is carried out via the control panel with keyboard and mouse. The computer includes the Windows system and CypCut software, which comes with functions such as:
-part programming,
-file import and export,
-adjustment of power output and cutting speed.
Installed software has lifetime licenses
Wireless remote
The control of the laser head is carried out by a wireless remote control.
Safety
The fiber laser cutting machine is delivered with all necessary measures to ensure the safety of users. Emergency lights with an audible alarm system activate in situations that compromise user safety, alerting to the danger.
Assistance by a specialist
We strive to maintain constant communication with our Customers. To support this, each purchased machine includes a Specialist Assistance Package with dedicated hours of expert guidance.
Within the service, our technicians may:
-Prepare or redesign CAD drawings,
-Advise on material and gas selection,
-Assist in the selection of operating parameters for different materials.
Free drawing package
Each Otinus laser cutter includes a comprehensive set of ready-to-use CAD drawings. The designs included are ready-made as they can be immediately cut in any format. Our technician will show you how to do that during training. The drawings will be useful to anyone who wants to make various types of decorative items.
Technical Consultation
Our specialists help select the right machine and accessories based on technical drawings of the parts you plan to produce.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery manufacturer |
| Active since | 2026 |
| Offers online | 22 |
| Last activity | Oct. 26, 2026 |
Otinus Corp. is a U.S.-based provider of high-performance metalworking machinery, empowering manufacturers to work faster, smarter, and more efficiently. Headquartered in the United States, Otinus delivers advanced CNC solutions tailored to the evolving needs of modern fabrication shops and industrial producers.
Specializing in laser cutting systems, tube lasers, press brakes, plasma cutters, and guillotine shears, Otinus offers a carefully selected portfolio of machines built for precision, durability, and consistent output. Each solution is designed to optimize production workflows, reduce operating costs, and help customers stay competitive in demanding markets.
What sets Otinus apart is its customer-first approach. With machines stocked locally for fast delivery, flexible financing options, and end-to-end support including installation, training, and technical service, Otinus ensures a seamless experience from purchase to production. Their team works closely with clients to recommend the right equipment for specific applications, production volumes, and growth plans.
Serving customers across the U.S. and internationally, Otinus Corp. combines global manufacturing expertise with reliable local support. For businesses seeking dependable technology, rapid ROI, and a trusted long-term partner, Otinus is the smart choice in metal fabrication solutions.
OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!
Specifications
-Maximum sheet size: 9.84 × 4.92 ft
-X/Y positioning accuracy: ±0.05 mm/m
-X/Y positioning repeatability: ±0.03 mm
-Maximum travel speed: 393.70 ft/min
-Maximum acceleration: 1.5 G
-Motor power output: 12.0 kW
-Energy consumption: 73.0 kW
-Source brand: Raycus or MAX Photonics to choose from
-Input voltage: ~3×400 V 50 Hz
-Ingress protection rating: IP54
Cutting thickness
-Carbon steel: recommended thickness 1 3/8 in, maximum thickness 1 3/8 in
-Stainless steel: recommended thickness 1 in, maximum thickness 1 in
-Aluminum: recommended thickness 11/16 in, maximum thickness 11/16 in
-Brass: recommended thickness 11/16 in, maximum thickness 11/16 in
Structure
The machine is very stable due to its welded structure on massive legs. Fuji Japanese servo drives with robust bevel rack and pinion drive ensure high speed and exceptional accuracy of the cutting head.
The ABL system automatically replenishes the grease in the rails.
User-friendliness
The fiber laser cutter is fully adapted to the needs of the user, ensuring maximum comfort during its operation. The heavy plates are made easier to handle with ball transfer units embedded in the surface, allowing the plates to roll smoothly during loading. Collecting small parts is much easier thanks to the waste collection trolleys, which can be pulled out using a convenient handle.
RayTools cutting head with auto-focus.
Control panel
The control of the fiber laser occurs is carried out via the control panel with keyboard and mouse. The computer includes the Windows system and CypCut software, which comes with functions such as:
-part programming,
-file import and export,
-adjustment of power output and cutting speed.
Installed software has lifetime licenses
Wireless remote
The control of the laser head is carried out by a wireless remote control.
Safety
The fiber laser cutting machine is delivered with all necessary measures to ensure the safety of users. Emergency lights with an audible alarm system activate in situations that compromise user safety, alerting to the danger.
Assistance by a specialist
We strive to maintain constant communication with our Customers. To support this, each purchased machine includes a Specialist Assistance Package with dedicated hours of expert guidance.
Within the service, our technicians may:
-Prepare or redesign CAD drawings,
-Advise on material and gas selection,
-Assist in the selection of operating parameters for different materials.
Free drawing package
Each Otinus laser cutter includes a comprehensive set of ready-to-use CAD drawings. The designs included are ready-made as they can be immediately cut in any format. Our technician will show you how to do that during training. The drawings will be useful to anyone who wants to make various types of decorative items.
Technical Consultation
Our specialists help select the right machine and accessories based on technical drawings of the parts you plan to produce.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
