Contact us to receive an offer.
| Manufacturer | Orth |
|---|---|
| Model | VACUUM ROTARY BICONE DRYER 2500 LITRES |
| Year | 1982 |
| Location | France
|

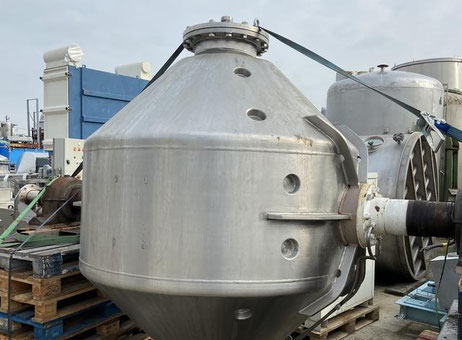

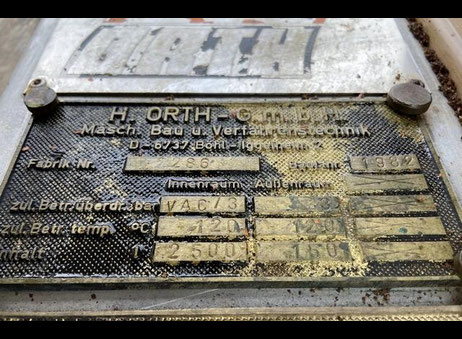

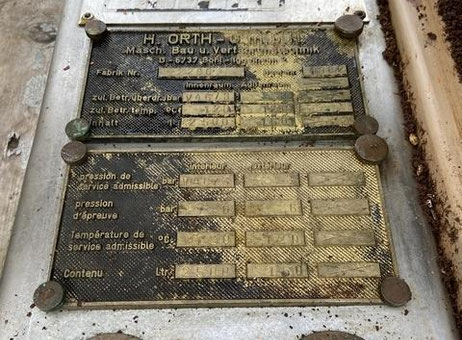

This listing is for a vacuum rotary bicone dryer manufactured by Orth in 1982, model name VACUUM ROTARY BICONE DRYER 2500 LITRES. The dryer features a stainless steel tank with an internal capacity of 2500 liters. The tank interior is constructed from stainless steel grade 316L, with an internal diameter of 1650 mm and an internal height of 2305 mm. The tank is designed to operate under vacuum conditions and can withstand pressures up to 3.0 bar. It also has a double jacket made of stainless steel 304L with a volume of 150 liters, rated for a maximum temperature of 120°C and pressure of 3 bars. The tank includes a manhole with a diameter of DN400 and a discharge outlet of DN150. The rotary dryer is equipped with a motor brake rated at 5.5 kW, providing rotation speeds adjustable between 1.1 and 6.7 rpm. The unit is supported by a metal frame and secured with straps from above for stability. The exterior stainless steel surfaces show minor signs of wear and slight discoloration but no major damage. The manufacturer plate is present but shows signs of rust and dirt accumulation, making some details difficult to read; however, the main specifications and manufacturing information remain legible. An electric motor coupled with a gearbox and chain drive is included, mounted on a wooden pallet; these components exhibit surface rust and dirt consistent with used equipment. An instruction manual is provided with the unit. This vacuum rotary bicone dryer is suitable for processes requiring controlled temperature and pressure conditions in a stainless steel environment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Brand : ORTH
Stock : 1
Tank S/S 316L inside Ø 1650 x inside height 2305 mm – Vacuum / +3 bars
Double jacket S/S 304L – 150 litres – 3 bars – 120°c
Manhole DN400
Discharge DN150
Motor brake 5,5KW
Rotation speed from 1,1 to 6,7 rpm
Vacuum
With instruction manual
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2012 |
| Offers online | 170 |
| Last activity | Oct. 22, 2026 |
Brand : ORTH
Stock : 1
Tank S/S 316L inside Ø 1650 x inside height 2305 mm – Vacuum / +3 bars
Double jacket S/S 304L – 150 litres – 3 bars – 120°c
Manhole DN400
Discharge DN150
Motor brake 5,5KW
Rotation speed from 1,1 to 6,7 rpm
Vacuum
With instruction manual
