Contact us to receive an offer.
| Manufacturer | Optima |
|---|---|
| Model | Limoline |
| Year | |
| Location | Germany
|
Offer: Optima Limoline – automatic filling and capping line for liquids
Manufacturer: Optima
Model: Limoline
Technical condition: Good
Automation level: Automatic
Previous industry: Pharmaceutical
Overview

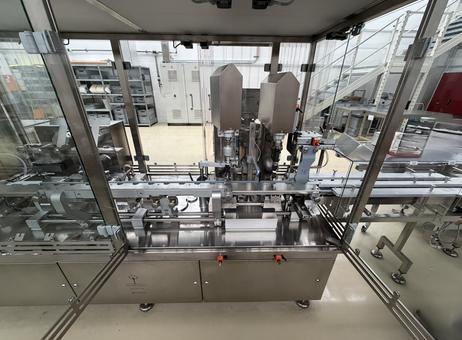

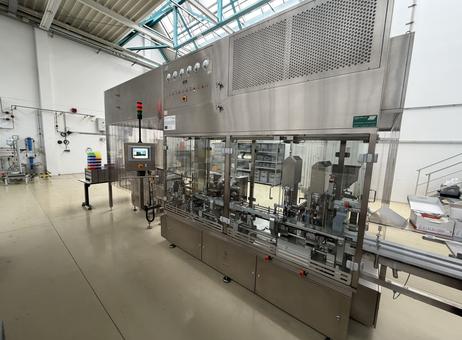

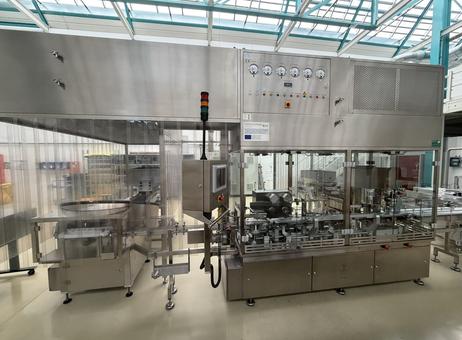

This Optima Limoline is an automatic piston-filling and capping line configured for plastic containers (vials/ampoules/bottles) used in pharmaceutical applications. It is supplied as a complete line with feed, filling, capping and downstream wrap-around labelling equipment and associated handling and quality-control features.
Key features and components

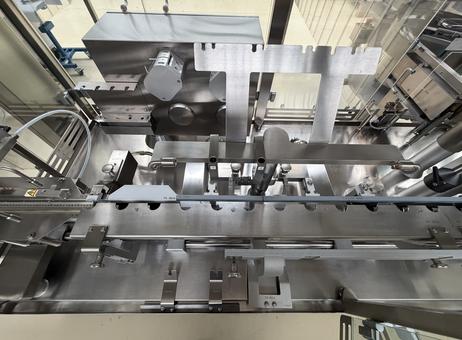

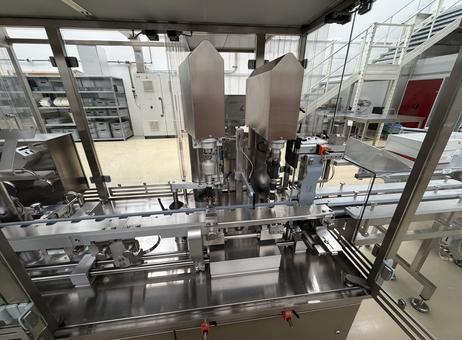

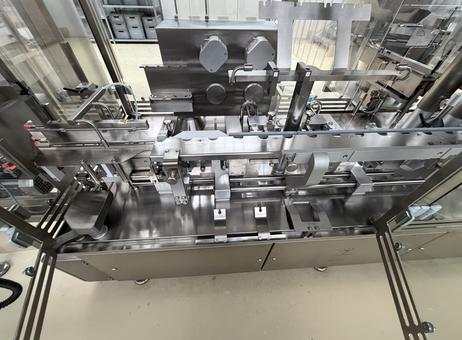

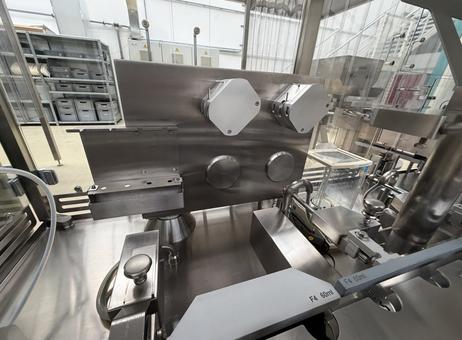

- Filling technology: piston with two micro-dosing filling stations using peristaltic pumps (two filling heads).
- Dosing range per peristaltic pump: 1.0–125 ml; stated filling accuracy: ±1% at 1.0 ml.

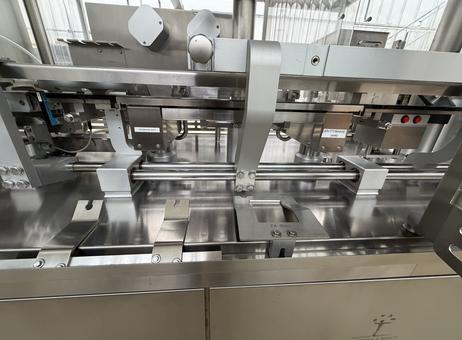

- Cap handling: cap feeder and capping station plus a post-capping station; suitable for screw caps up to 50 mm diameter.
- Container compatibility: round container diameters 30–95 mm; square containers 30–90 mm; container heights 35–175 mm; container material: plastic.

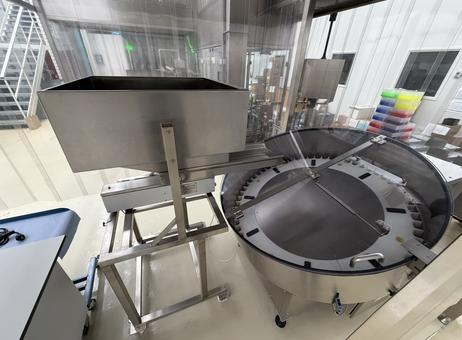

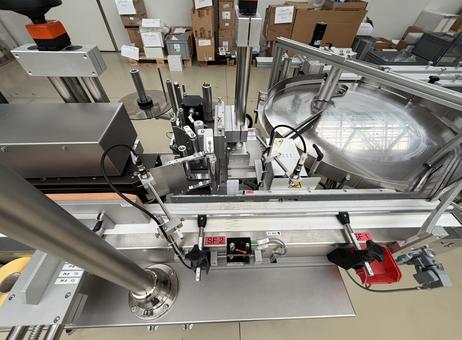

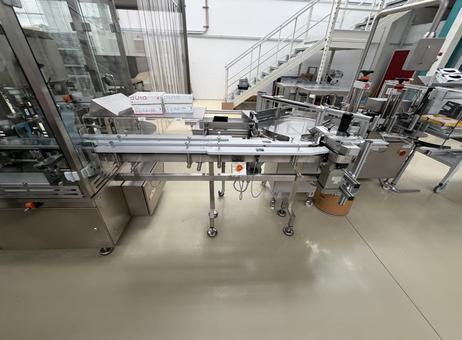

- Infeed/unscrambling: bottle unscrambler with a sorting disc (Ø 1250 mm) and a vacuum conveyor (length 1,800 mm).

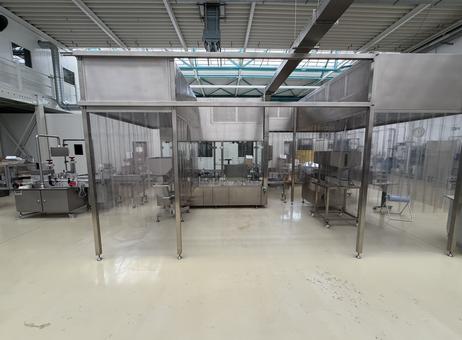

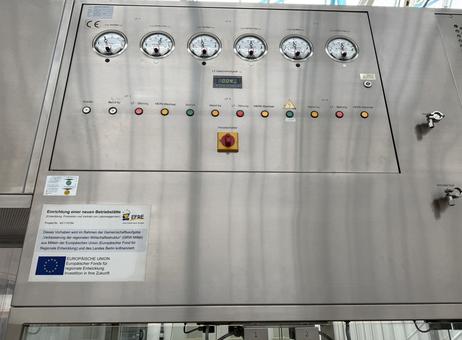

- Hygiene/cleanroom support: Franz Ziel laminar flow hood and ionisation present.
- Weighing and rejects: tare scale and gross weighing scale; reject chute with slide-out mechanism.

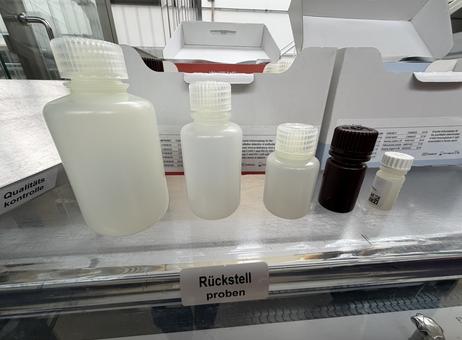

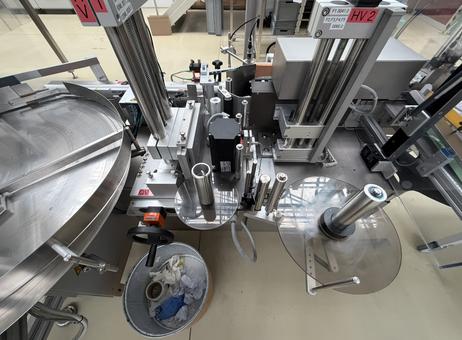

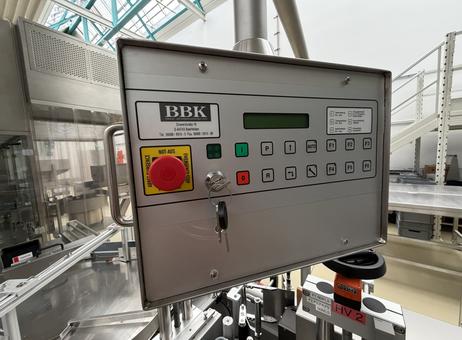

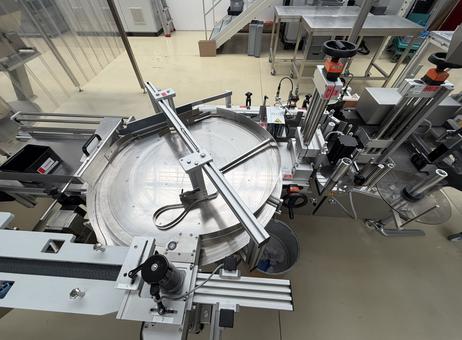

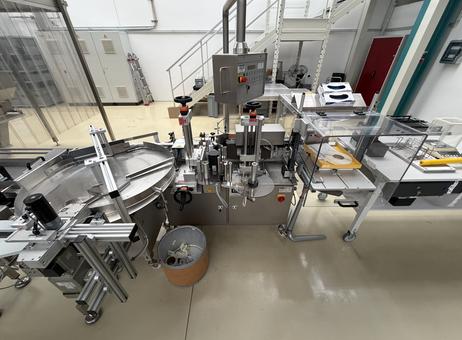

- Downstream labelling: direct feed to BBK wrap-around labelling machine with Rapid SL160M label dispenser; format parts provided for plastic bottles of 4, 15, 30, 60 and 125 ml.
Performance, utilities and dimensions
- Output capacity: up to 1,600 items/hour
- Running direction: left to right
- Working height: 900 mm ±25 mm
- Footprint (L x W): approx. 7,070 x 3,750 mm
- Machine height: approx. 2,950 mm
- Machine net weight: approx. 2,800 kg

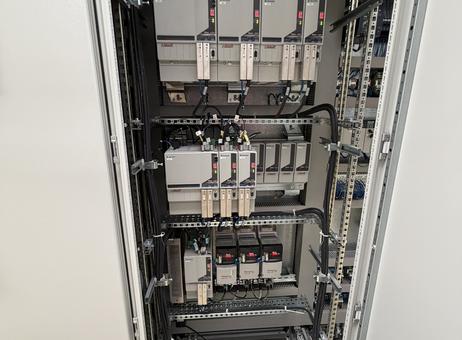

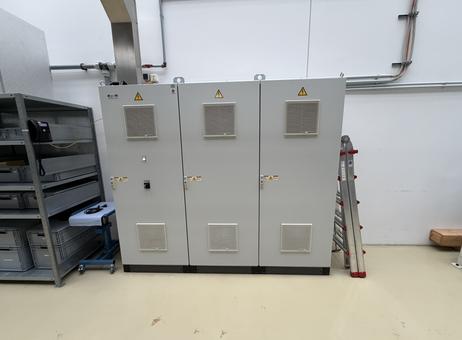

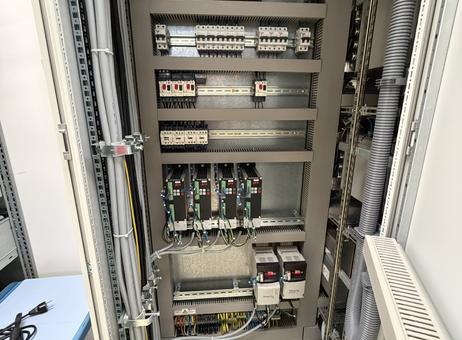

- Electrical connection: 230/400 V, 50 Hz
Condition and scope
The listing specifies the machine’s components and format parts as detailed above and notes the technical condition as “Good.” No additional functional claims (e.g., tested or warranty) are provided in this listing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer title: Optima Limoline Vials / ampoules filling machine
Manufacturer: Optima
Model: Limoline
Technical condition: Good
State: Visible
Product type: Automatic filling and capping line for liquids
Filling technology: Piston
Dosing system: 2 filling stations for micro-dosing using peristaltic pumps
Dosing range per pump: 1.0 to 125 ml
Filling accuracy: ±1% at 1.0 ml
Number of filling heads: 2
Product substance: Liquids
Container material: Plastic
Container diameter (round): 30.0 to 95.0 mm
Container diameter (square): 30 to 90 mm
Container height: 35 to 175 mm
Cap type: Screw caps
Cap diameter: Up to 50 mm
Cap feeding and capping: Includes cap feeder and post-capping station
Capping station: Present
Reject handling: Reject chute with slide-out mechanism
Unclamba and conveying: Bottle unscrambler with sorting disc 1250 mm diameter
Conveyor: Vacuum conveyor belt length 1800 mm
Laminar flow: Franz Ziel laminar flow hood included
Ionisation: Included
Weighing: Tare scale and gross weighing scale
Output capacity: Up to 1,600 items per hour
Running direction: Left to right
Working height: 900 mm ± 25 mm
Footprint: 7,070 x 3,750 mm (L x W)
Machine height: 2,950 mm
Net weight: 2,800 kg
Downstream labelling: Direct feed to BBK labelling machine for wrap-around labeling with self-adhesive labels
Label dispenser: Rapid SL160M label dispenser
Label formats: 4 ml, 15 ml, 30 ml, 60 ml, 125 ml
Format parts: For plastic bottles of 4 ml, 15 ml, 30 ml, 60 ml & 125 ml
Electrical connection: 230/400 V, 50 Hz
Previous industry: Pharmaceutical
Automation level: Automatic
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
