| Manufacturer | OMIS |
|---|---|
| Model | Bipoutre 35T 15.980 mm |
| Year | 2023 |
| Location | France
|
This OMIS Bipoutre double girder bridge crane, model Bipoutre 35T 15.980 mm, manufactured in 2023, offers a maximum load capacity of 35 tons and a span of 15,980 mm. The crane features a hook travel height of 12 meters, suitable for a wide range of heavy lifting applications in industrial settings.
The crane is equipped with numerous advanced features and options to enhance performance and safety. It includes MEC steering and travel motors with IP55 motor protection and tropicalized motors, ensuring durability in various environments. A removable maintenance gangway runs the full length of the bridge girder, facilitating safe and convenient access for inspections and maintenance.
The crane utilizes a festoon cart on IPE80 and overhead travelling crane switchgear in the IP55 version, complemented by an electrical cabinet with thermostat resistance. The hoist is driven by a vector encoder drive, and control is managed through the AUTEC LK NEO industrial radio control system.
Electrical systems are provided for powering and controlling accessories such as spreader bars, rotation motors, and hydraulic opening/closing units. These systems include max and min opening limit switches and load detection both vertically and horizontally. The control interface offers button box and radio control options with dedicated keys for clamping, opening, closing, and rotation functions.
Additional equipment includes a flat cable daisy chain connecting the accessory's electrical panel to the trolley-mounted cable reel, an extra connector in the cart's junction box for cable reel connections, a spring reel, power cable reel support clamp, and installation and connection of the cable reel. A socket is also available for connecting the cable reel to the clamp.

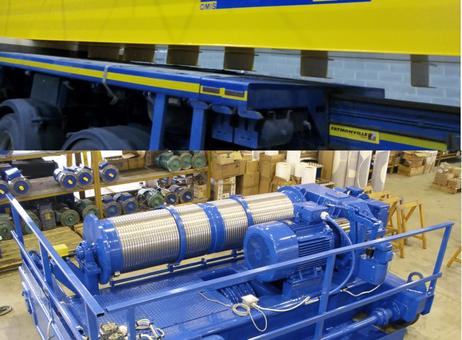

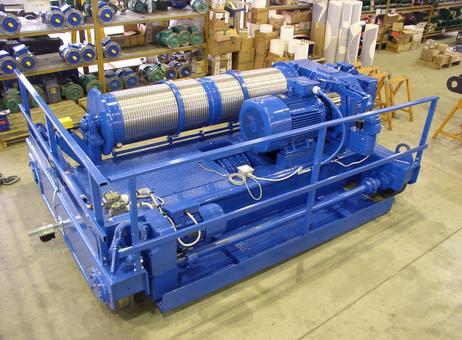

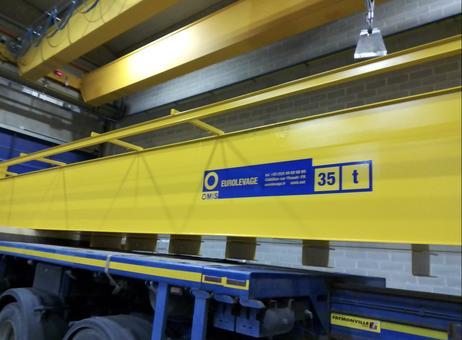

Visually, the crane beam is painted yellow and prominently displays the OMIS EUROLEVAGE logo along with the 35-ton capacity marking. The hoist mechanism is blue, featuring a large drum and electric motor, surrounded by a blue safety railing. The equipment appears clean and well maintained, reflecting careful upkeep.
Located in Italy, this new crane is ready for delivery by truck, offering a robust and feature-rich solution for heavy lifting requirements.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
New equipment, stocked in Italy, delivery by truck possible.
Capacity 35T / Reach 15,980 mm (reducible) / Hook travel: 12m
Numerous equipment/options included such as :
- MEC steering and travel motors
- IP55 motor protection
- Tropicalized motors
- Removable maintenance gangway running the full length of a bridge girder
- Festoon cart on IPE80
- Overhead travelling crane switchgear in IP55 version
- Electrical cabinet with thermostat resistance
- Vector encoder drive on hoist
- AUTEC LK NEO industrial radio control system
- Electrical system for powering and controlling a spreader bar or accessory:
- Electrical system for powering and controlling the rotation motor
- Electrical system for powering and controlling the hydraulic opening/closing unit,
complete with max. and min. opening limit switches and load detection in vertical and horizontal
vertical and horizontal
- Button box / radio control with appropriate keys for clamping, opening, closing, right and left rotation.
right and left rotation.
- Flat cable daisy chain for connecting the accessory's electrical panel to the trolley-mounted cable reel.
- Additional connector in the cart's junction box for connection between the ribbon cable and the cable reel.
- Spring reel
- Power cable reel support clamp
- Cable reel installation and connection
- Socket for connecting cable reel to clamp
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the capacity of this overhead crane?
This overhead crane has a capacity of 35 tons.
What is the span of this overhead crane?
This overhead crane features a span of 15,980 mm.
What is the hook travel distance of this overhead crane?
This overhead crane has a hook travel of 12 meters.
When was this equipment manufactured?
This equipment was manufactured in the year 2023.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
