| Manufacturer | OMET |
|---|---|
| Model | Variflex 850 |
| Year | 2011 |
| Location | Germany
|

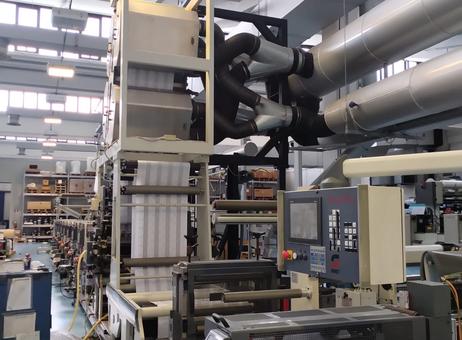

The OMET Variflex 850 is a versatile industrial flexographic printing machine manufactured in 2011, designed for high-precision web handling with a working width of 850 mm. This equipment features an unwinding and infeed system equipped with constant web tension control, web alignment, and stabilization units to ensure accurate and stable material feeding. The electronically controlled infeed system maintains precise tension management supported by a complete drive system for optimal web handling.
The machine includes a single-shaft rewinder capable of handling a maximum diameter of 1000 mm, also equipped with constant tension control to maintain stable winding throughout operation. Surface treatment and web cleaning are addressed with a corona treatment unit to optimize surface energy for pre-print processes and an ACE single-side contact roller web cleaner designed to remove dust and particles effectively.
The printing section is comprehensive, comprising eight flexographic printing units with print drums and removable inking drawers (excluding anilox rollers). Additional features include options for explosion-proof configurations, drum cooling systems, lightweight anilox rollers with gearing, and multiple printing sleeves and ink drawers supported by a dedicated trolley.
Special flexo units include a cold foil trolley and a sliding cold foil unit with a rail-free design, allowing flexible positioning to any print station. The rotogravure printing section contains one unit capable of front or reverse-side printing, equipped with a tilting bar and designed for PETROCOLL cold-seal coating. It also includes an extended hot air drying system with a "Super Hood," methane gas burner heating, integrated cooling, and an electrostatic assist system.
Drying and curing are managed through eight UV curing units, each rated at 22 kW, featuring integrated cooling systems and drum cooling to protect temperature-sensitive substrates. The die-cutting and finishing section includes a rotary die-cutting unit with a working width up to 530 mm, a trim removal system, and a scrap pressure system.
The slitting section uses a scissor-type system with six Helios box-type knives paired with self-sharpening counter blades. Electronic control is advanced, with OMET electronic register control for eight-color operation, including a "gate" function for precise registration, a vision system for real-time print inspection, and a motorized E+L Elscan camera for high-resolution web monitoring.
Safety is ensured with complete CE-compliant guarding and emergency stop systems, designed for ergonomic operation and quick format changes. Observations confirm the machine is clean and well-maintained, featuring a control panel labeled "OMET" and "EasyFlex," multiple rollers for web guidance, and ventilation ducts and flexible hoses likely used for air handling or dust extraction.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: OMET
Model: Variflex 850
Construction Year: 2011
Web Width: 850 mm
1. Unwinding and Infeed System
Unwinder with constant web tension control
Web alignment and stabilization unit
Electronically controlled infeed with precise tension management
Complete drive system for accurate web handling
2. Rewinding System
Single-shaft rewinder, max diameter: 1000 mm
Constant tension control for stable winding
3. Surface Treatment & Web Cleaning
Corona treatment unit for surface energy optimization (pre-print treatment)
ACE single-side contact roller web cleaner for dust and particle removal
4. Printing Units
Flexographic Printing Section
8 flexo printing units with:
Print drum
Removable inking drawer (excluding anilox rollers)
Optional features for flexo units:
Explosion-proof configuration (applied per printing unit)
Drum cooling system
Lightweight anilox rollers:
5 units (195–300 lpi) with gear
5 units (>300 lpi) with gear
24 printing sleeves with cams
2 additional ink drawers (tray + rubber roller)
1 trolley for ink drawers (3 slots – 2 active + 1 spare)
Special Flexo Units
1 cold foil trolley
1 sliding cold foil unit (movable to any print station, rail-free design)
Rotogravure Printing Section
1 rotogravure unit for front-side or reverse-side printing, equipped with:
Tilting bar for reverse (back) printing
Designed for PETROCOLL cold-seal coating (2.8–3.2 g/m² at 180 m/min on paper)
Rotogravure trolley for mobile positioning
Extended hot air drying system:
“Super Hood” with 32 high-efficiency blowers
Heating via methane gas burner
Integrated cooling unit
Electrostatic assist system for ink transfer
3 rotogravure printing formats (16”–26”)
Solvent ink viscometer
Pump and ink supply tank
5. Drying and UV Curing Systems
8 UV curing units, 22 kW each, one per print station
Integrated cooling system for UV lamps
Drum cooling for temperature-sensitive substrates
6. Die-Cutting and Finishing Units
Rotary die-cutting unit, working width up to 530 mm
Base for die-cutting station
Trim removal system (up to 530 mm width)
Scrap pressure system (limit 530 mm)
7. Slitting Section
Scissor-type slitting system
6 Helios box-type knives with self-sharpening counter blades
8. Electronic Control & Inspection
OMET electronic register control for 8-color operation
Includes “gate” function for precise registration
Vision system for real-time print inspection
Motorized E+L Elscan camera for high-resolution web monitoring
9. Safety and Compliance
Complete CE-compliant safety guarding and emergency stop systems
Designed for ergonomic operation and quick format changes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
