Contact us to receive an offer.
| Manufacturer | OMERA |
|---|---|
| Model | OPI 2 630 |
| Year | 1990 |
| Location | Italy
|
This listing features a robust OMERA hydraulic press, model OPI 2 630, manufactured in 1990 in Italy. It is a C-frame type press with a maximum pressing force of 630 tons (6300 kN), suitable for heavy-duty industrial applications. The machine measures 4000 mm in length, 2200 mm in width, and 6000 mm in height, and weighs approximately 100,000 kg.
The press is equipped with a large working table measuring 2500 mm by 2500 mm, providing a substantial surface area for various pressing tasks. The ram stroke is 1000 mm, allowing for significant material deformation capabilities. The machine operates with an engine power of 75 kW, driven by a single motor. It features an oleodynamic screw system with a link motion knuckle joint, contributing to its reliable and powerful pressing action.
The press includes two thrust points and four guides for the sled, ensuring stability and precision during operation. The blade presser cushion offers a total force of 315 to 400 tons and is hydraulically moved. The machine's approach speed is 300 mm/s, with a working speed of 20 mm/s at 100% capacity.
Electrical components are present and functional, with a working electric panel and connections. Safety features include photocells installed at the front and rear. The machine does not have a removable front side T-track on the table.

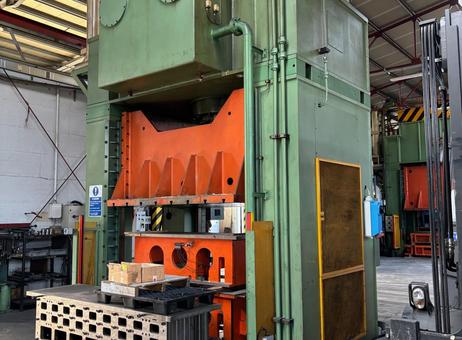

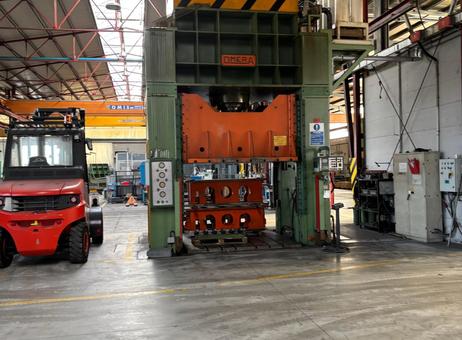

Visually, the hydraulic press is painted in green and orange and appears clean and well-maintained with no visible damage. The control panel with gauges and buttons is located on the left side of the machine. The surrounding area is organized and clean, indicating careful upkeep. Metal pallets and cardboard boxes are placed on the press table in the current setting.
This OMERA OPI 2 630 hydraulic press is a substantial industrial machine designed for demanding pressing operations, combining powerful performance with a large working surface and solid construction.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Ton: 630/700
Table Width Mm: 2500x2500
Sled Stroke Mm: 1000
Subtype Dm Cdc: DM2C hydro
Ce Mark: No
Condition: Working
Eccentric Drive System Link Motion Knucle Joint Oleodynamic Screw Fly: Oleodynamicj
Table Removable Front Side T Track: No
Slide Width Mm: 2500x2500
Thrust Points: 2
Sled Number Of Guides: 4
Approach Speed: 300
Working Speed At 100: 20
Light Pms Mm: 1640
Blade Presser Cushion Total Force Ton: 315/400
Blade Presser Cushion Hydraulic Pneumatic Movement: Hydraulic
External Dimensions Width Mm: 4000x2200
External Dimensions Height Above Ground Mm: 6000
Weight Ton: 100
Foundation Cm: 3000
Electrical Components N Motors: 1
Motor Power Kw: 75
Electric Panel Conections Working Missing Overhauled To be Overhauled: Working
Photocells Front Rear: Yes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
