| Manufacturer | OMEC |
|---|---|
| Model | F11 |
| Year | |
| Location | Spain
|
| Category | Wood milling machines |
| Engine power | 4.2 kW |
| Length x width x height | 1600.0 × 700.0 × 1200.0 |
| Weight | 550 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 09/10/2026 |
| Product id | P241028156 |
| Language |
Фреза за дърво OMEC F11 CN
Dřevoobráběcí frézka OMEC F11 CN
OMEC F11 CN Træfræser
OMEC F11 CN Fräsmaschine
Μηχανή φρεζαρίσματος ξύλου OMEC F11 CN
OMEC F11 CN Wood router-milling machine
Enlazadora-Fresadora automática a CNC OMEC F11 de ocasión
Fraiseuse à bois OMEC F11 CN
Glodalica za drvo OMEC F11 CN
OMEC F11 CN Fa marógép
Fresatrice OMEC F11 CN
Medienos frezavimo stakles OMEC F11 CN
OMEC F11 CN Hout freesmachine
Frezarka do drewna OMEC F11 CN
Fresadora de madeira OMEC F11 CN
Mașină de frezat lemn OMEC F11 CN
OMEC F11 CN Фрезерный станок по дереву
Mašina za glodanje drveta OMEC F11 CN
OMEC F11 CN Träfräsmaskin
Ahşap freze makinesi OMEC F11 CN
|
The OMEC F11 CN is an automatic two-axis CNC router-milling machine specifically designed for producing dovetail assemblies, French and parallel mortises, primarily used in drawer and furniture part manufacturing. This versatile machine supports the production of up to ten different types of dovetails, offering flexibility in joinery tasks. Equipped with a spindle unit featuring a milling cutter, it enables the creation of sockets with varying heights, allowing for the simultaneous production of simple female parts, simple male parts, and combined male-female parts.
The machine’s operation involves manual clamping of pieces through pneumatic valves, ensuring secure positioning during milling. Control is facilitated via a keyboard and a numerical control panel, which allows the operator to adjust several production variables within set limits. These variables include the type, pitch, number, and depth of the sockets, dimensions of the pieces, cutting and tool running speeds, as well as the compression of the tool beam.
Technical specifications include an installed power of 4.2 kW and a working pressure of 0.7 MPa. The machine features a single spindle with a maximum speed of 18,000 revolutions per minute. It is capable of producing approximately 70 drawers per hour. The machine’s dimensions are 1600 mm in length, 700 mm in width, and 1200 mm in height, with a total weight of 550 kg.
Minimum and maximum dimensions for pieces processed by the machine are as follows: length ranges from 170 mm to 1500 mm, width from 60 mm to 770 mm, and assembly height from 6 mm to 25 mm. Thickness for the front and sides varies from a minimum of 8 mm to a maximum of 55 mm and 30 mm respectively.

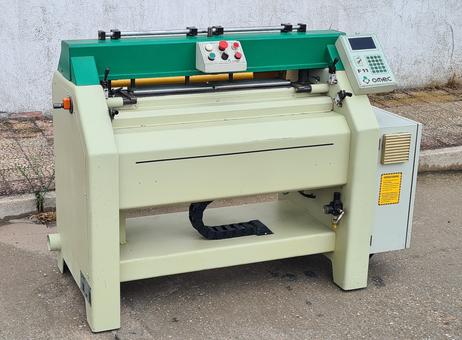

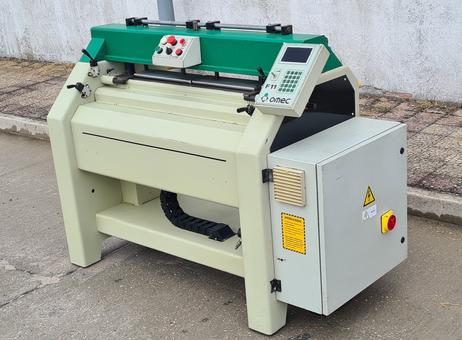

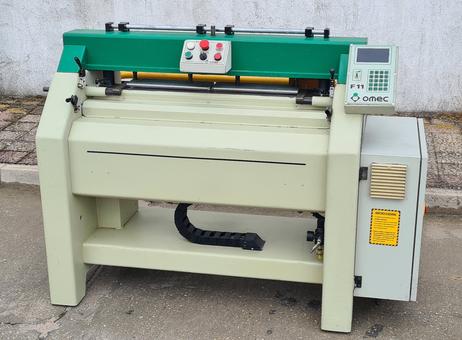

The machine features a green top section and a beige body. The control panel, located on the front top center, includes buttons and switches along with a digital keypad and screen labeled 'F11' and 'OMEC' on the right side. A large electrical box with warning labels and an emergency stop button is positioned on the right side, also equipped with ventilation grilles. For cable management, a black cable carrier chain is installed underneath the machine. Safety features include two yellow safety bars across the rear and a yellow protective cover with warning labels on mechanical parts at the rear left side.
This OMEC F11 CN wood milling machine is designed to provide high production flexibility and precision in woodworking joinery applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Used OMEC F11 CN CNC automatic CNC router-milling machine
Automatic two-axis numerically controlled milling machine for dovetail assemblies. It has been designed to make dovetail assemblies, French and parallel mortises on drawers and various parts of furniture. The machine is very flexible and allows the production of ten different types of dovetails. The F11CN model is equipped with a spindle unit with milling cutter that allows the production of sockets of different heights. The machine can produce simple female parts, simple male parts and male-female parts at the same time. The clamping of the pieces is done manually by means of pneumatic valves, as well as the clamping of the pieces. The controls are made through a keyboard and a control panel with numerical control.
The F11 model is controlled by a numerical control that has been programmed to obtain the maximum production flexibility and allows the modification of the following variables within the production limits.
- The type of sockets
- The pitch of the sockets
- The number of sockets
- The depth of the sockets
- The dimension of the pieces
- The speed of cutting and running tools
- The compression of the tool beam variation.
TECHNICAL CHARACTERISTICS:
- Power installed on the machine 4,2 KW
- Working pressure 0,7 Mpascal
- Spindles No. 1
- Spindle revolutions N1 18.000
- Distance between the axes of the joints mm variable to fixed
- Drawer production 70 n/h
- Machine weight 550 kg
- Machine dimensions 70x160x120 cm
MINIMUM AND MAXIMUM DIMENSIONS OF THE PIECES
Size Length Width Assembly height Thickness front Thickness sides
Minimum 170 mm 60 mm 6 mm 8 mm 8 mm 8 mm
Maximum 1500 mm 770 mm 25 mm 55 mm 30 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
