| Manufacturer | Olbrich |
|---|---|
| Model | Tief-/Siebdruckstation 5 |
| Year | 2010 |
| Location | Poland
|
Overview:
This is a post-press varnishing and coating production line for wallpaper that applies a seven-color coating to a base material and produces final consumer rolls. It is described as suitable for producing foamed vinyl and paintable wallpaper.
Production capabilities:
- Web width range: 0.53–1.06 m
- Maximum mechanical speed: 150 m/min
- Typical production speed range: 60–110 m/min
- Total rolls produced (as listed): 16 million
- Year of equipment conservation: 2018
Utility and services (as listed):
- Effective power consumption of electricity: 300 kW/h
- Heat transfer agent (oil) temperature (as listed): 3000 ℃
- Compressed air pressure: 6 bar

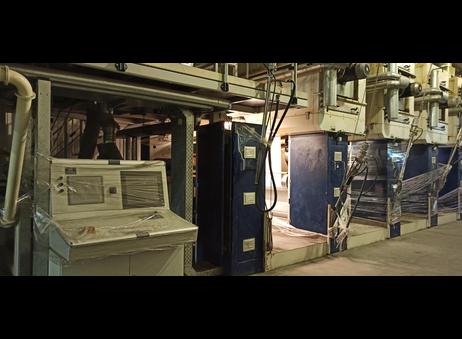

Main components of the printing/finishing line (as listed):
- Automatic bobbin unwinding and gluing unit
- Unit for preliminary drying, tensioning and cooling of the base
- Table for longitudinal leveling of base
- Seven printing stations/racks:
- 1st rack/column: intaglio/gravure printing or screen printing (selectable), with double drying chamber and cooling system
- 2nd–6th racks/columns: screen printing only, each with one drying chamber and cooling system
- 7th rack/column: screen printing only, without oven and cooling
- Video monitoring system for the base
- Glitter scattering unit
- Longitudinal drying channel (six sections)
- Cooling unit and printed cloth flatten area
- Cutting, trimming and edge removal system
- Pulling accumulation for wallpapers
- Winding and cutting into rolls machine
- Packing machine
- Main control panel and electrical switchboards (electronic equipment by Siemens)
Notes:
All specifications and component listings are taken from the provided product information. No additional condition, testing status, or undisclosed accessories are claimed here.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Post Press & Bindery & Finishing > Varnishing & Coating Equipment
Is applying a seven-color coating to the base with final packaging in consumer rolls
Can produce the following groups of wallpaper: foamed vinyl, paintable wallpaper
Width: 0.53 - 1.06 m
Maximum mechanical speed: 150 m/minute
Production speed: 60-110 m/minute
Effective power consumption of electricity: 300 kW/h
Temperature of heat transfer agent (oil): 3000 ℃
Pressure of compressed air: 6 bar
Rolls produced: 16 million
Year of equipment conservation: 2018
MAIN COMPONENTS OF THE PRINTING LINE:
Automatic bobbin unwinding and gluing unit
Unit for preliminary drying, tensioning and cooling of the base
Table for longitudinal leveling of base
Printing stations - 7 racks/columns:
- 1-st rack/column – intaglio/gravure printing or screen printing (to choose from), with double drying chamber and cooling system
- 2-nd – 6-th racks/columns – only for screen printing, with one drying chamber and cooling system
- 7-th rack/column - only for screen printing, without oven and cooling;
Video monitoring system of the base
Glitter scattering unit
Longitudinal drying channel (six sections)
Cooling unit
Printed cloth flatten area
Cutting, trimming and edge removal system
Pulling accumulation of wallpapers
Winding and cutting into rolls machine
Packing machine
Main control panel
Electrical switchboards (electronic equipment by Siemens
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
