Contact us to receive an offer.
| Manufacturer | OKUMA |
|---|---|
| Model | LB3000EXII MYW800 |
| Year | 2014 |
| Location | Czech Republic
|

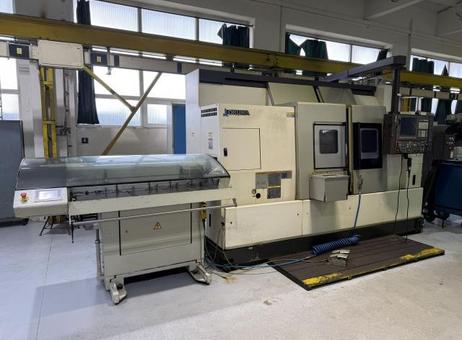

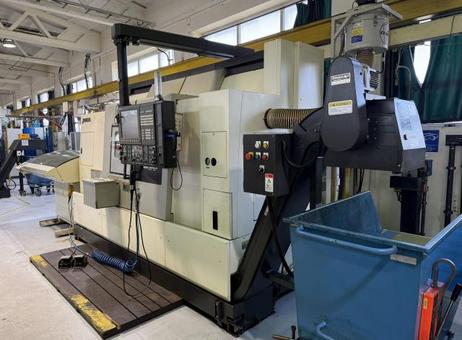

This listing features an OKUMA LB3000EXII MYW800 CNC lathe, manufactured in 2014. It is equipped with the OSP-P300L CNC control system, which includes a 15-inch color touchscreen for user-friendly operation. The machine offers a maximum turning diameter of 480 mm above the bed, with a maximum machined diameter of 340 mm and a turning length capacity of 785 mm. The spindle bore diameter is 80 mm. The lathe's X-axis travel is 260 mm, and the Z-axis travel is 510 mm.
The main spindle has a speed range of 45 to 5,000 rpm, powered by a 22 kW motor (continuous power 15 kW), with a JIS A2-6 end and integrated motor. It features a continuously controlled C-axis with 360° rotation and 0.001° increments. The sub-spindle operates between 50 and 6,000 rpm, powered by an 11 kW motor (continuous power 7.5 kW), with a 140 mm diameter end and 62 mm bore. It also includes a continuously controlled C-axis with similar precision.
The turret head has 12 tool positions, fixed and driven, with tool clamping sizes of 25 x 25 mm internally and 40 mm externally. Driven tools have a power of 7.1/4.1 kW and speed range from 45 to 6,000 rpm. Rapid traverse rates are 25 m/min in the X-axis, 30 m/min in the Z-axis, and 200 rpm in the C-axis.
Additional features include a hydraulic through-type cylinder with pull tube for both spindles, a chuck with a 10-inch hydraulic chuck on the main spindle, and a 6-inch hydraulic chuck on the sub-spindle. The machine includes a tailstock clamping mechanism on the secondary spindle and W-axis overload monitoring.
The lathe is accompanied by an ILS material feeder (model MUK 7012) with a bar magazine for 6–70 mm diameter bars, and a FILTERMIST FX4002 extraction system. It also features a chip conveyor system with a black cover and blue collection bin.
The machine measures approximately 3,330 mm in width, 1,800 mm in depth, and 2,250 mm in height, weighing around 5,250 kg. The lathe is installed on a platform with yellow safety markings. The control panel includes multiple buttons, dials, an emergency stop button, and a handheld barcode scanner.

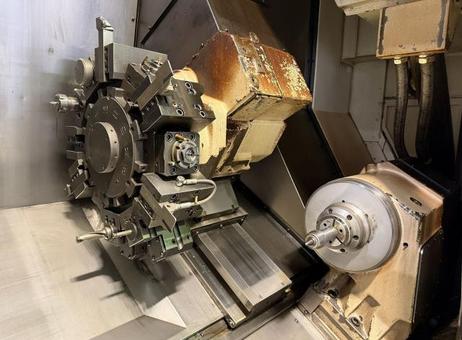

Visible signs of wear and some rust are noted on internal parts near the turret, indicating prior use. The machine is located indoors in a clean industrial environment.

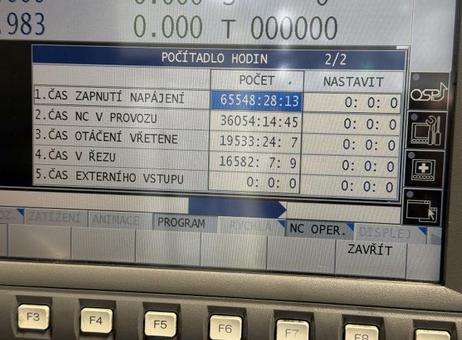

Operating hours as of March 18, 2026, are as follows: power-on time approximately 65,458 hours, NC runtime about 36,054 hours, spindle rotation time around 19,533 hours, and cutting time approximately 16,582 hours. Power consumption is rated at 33.1 kVA.
This OKUMA LB3000EXII MYW800 CNC lathe is a robust, versatile machine suitable for precision turning operations, featuring advanced control capabilities and comprehensive accessories for efficient manufacturing processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Inventory No.: 109026
Type: LB3000EXII MYW800
Specifications:
Manufacturer: OKUMA
Year of manufacture/SO/GO: 2014/-/-
Location: Czech Republic

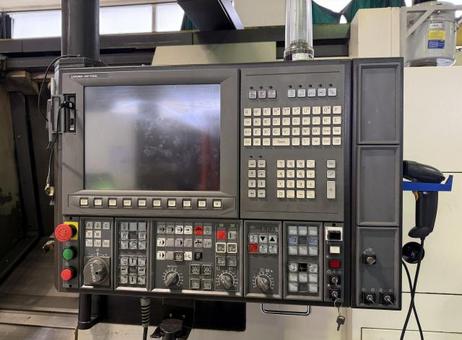

Description: OSP-P300L CNC control system with a 15" color touchscreen. Operating hours Power-on time: 65,458 h
as of March 18, 2026 NC runtime: 36,054 h
Spindle rotation time: 19,533 h
Cutting time: 16,582 h
Figures are still increasing.
Power consumption: 33.1 kVA.
Technical data
Max. swivel diameter: 480 mm (approx., depending on the current design of the workpiece removal blade)
Max. machined diameter: 340 mm
Max. turning length: 785 mm
Chuck + 10" hydraulic chuck B210-A06-01, 3x soft jaws (Schunk KM-WBL 103)
1x hard jaws (Schunk SHB-J 100)
Hydraulic through-type cylinder SS 1770, pull tube
Main spindle
Spindle with JIS A2-6 end, bore diameter 80 mm, integrated motor
Speed range 45 – 5,000 rpm
Power/continuous operation 22 kW/15 kW
Continuously controlled C-axis, 360° with 0.001° increment
Sub-spindle
Speed range 50 – 6,000 rpm
Power/continuous operation 11 kW/7.5 kW
Spindle with 140 mm diameter end, 62 mm bore, integrated motor
Continuously controlled C-axis, 360° with 0.001° increments
Collet + 6" hydraulic chuck B206-01, 3 sets of soft jaws (Schunk KM-WBL 62)
Hydraulic through-type cylinder SS1243, pull tube
Side spindle travel - NC W-axis stroke for W450: 595 mm
Spring-loaded ejection of workpieces from the counter spindle
W-axis overload monitoring (drive torque)
Tailstock clamping in the secondary spindle
Turret head
Number of tool positions: 12, fixed and driven BMT60 (not VDI)
Tool clamping (internal): 25 x 25 mm
Tool clamping (external): 40 mm
Driven tools
Drive power 7.1/4.1 kW
Speed range 45 – 6,000 rpm
Feed rates
Rapid traverse in X and Z axes 25/30 m/min.
Rapid traverse in C axis 200 rpm
Travel ranges
X-axis 260 mm
Z-axis 510 mm
Y-axis 115 mm (+70 mm / -45 mm)
Machine specifications
Width 3,330 mm – without feeder and conveyor
Depth 1,800 mm
Height 2,250 mm
Machine weight 5,250 kg
Accessories:
OSP-P300L Advanced One Touch CF-M-E package containing:
Coordinate transformation function
Profile generation function
Advanced One Touch IGF
3D machining process simulation
Machining time limit check
Load monitoring (spindle, feed axes)
Monitoring of NC operations (including piece counting)
Cycle time reduction function
Hi-Cut Pro function
Spindle speed control function
High-pressure cooling, max. 20 bar, max. 50 l/min
ILS material feeder, model MUK 7012, with bar magazine 6–70 mm/1250 mm, manufactured in May 2014, manufacturer Kurt Breuning – IRCO Maschinenbau GmbH, Steinenbronn.
FILTERMIST FX4002 extraction system
Machine accessories:
Collet chuck: SMW AUTOBLOK: KSZ-DZN-065-A06 201342 (currently on the main spindle)
collet sizes (mm): 6-7-8-9-10-11-12-13-14-15-16-17-18-19-20-21-22-23-24-25-26-27-28-29-30
31-32-34-35-36-38-39-40-41-42-44-45-46-48-50-51-53-55-57-60-64-65
grooved collets (mm): 55-60-65
Collet holder: SMW AUTOBLOK: KSZ-DZN-042 Z140 205073 (currently on the sub-spindle)
collets dia. (mm): 6-7-8-9-10-11-12-13-14-15-16-17-18-19-20-21-22-23-24-25-26-27-28-30
31-32-34-35-36-39-38-40-41
Holders: Axial holder - 5X
Knife holder - 5x
Blade holder - 2X
Double-sided face guide - 3X
Cross guide - 3X
Reducing insert tube (made to length)
Reducers - nylon (mm): 12-14-15.5-17-20-22-24-26-28-30-31-34-36-38-40-42-44-47-50-52
