| Manufacturer | Okuma |
|---|---|
| Model | GENOS L200E-M |
| Year | 2010 |
| Location | Italy
|
This Okuma GENOS L200E-M is a 3-axis CNC lathe machine manufactured in 2010, designed for precision turning tasks. It offers a maximum turning diameter of 200 mm and a turning length of 380 mm, making it suitable for medium-sized workpieces. The spindle speed reaches up to 4,500 rpm, supported by a spindle bore of 62 mm, allowing for efficient machining operations. The machine's X-axis travel is 165 mm and the Z-axis travel is 400 mm, providing substantial movement range for various turning applications.
The lathe has a maximum swing over the bed of 450 mm, accommodating larger diameter parts. Its overall dimensions are 2081 mm in length, 1550 mm in width, and 1569 mm in height, with a total weight of approximately 3800 kg, reflecting its robust construction.

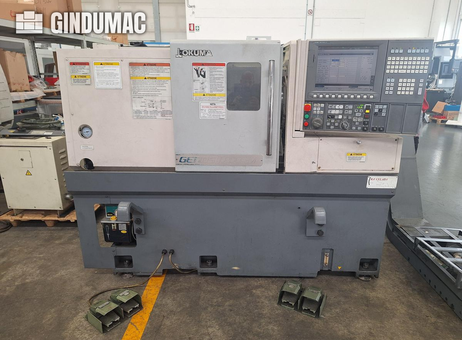

Equipped with an integrated control panel featuring a screen, multiple buttons, and dials, the machine facilitates user-friendly operation. Foot pedals are positioned on the floor in front of the machine for additional control convenience. The exterior shows minor wear, indicating it has been used but remains in good condition.
This CNC lathe is well-suited for shops requiring reliable turning capabilities with precise axis control. The manufacturer is Okuma, known for producing durable and accurate machine tools. This model does not include a counter spindle or driven tools. For further technical specifications or to discuss how this machine can meet your production needs, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3-axis Okuma GENOS L200E-M was manufactured in 2010. It features a maximum turning diameter of 200 mm and a turning length of 380 mm. The machine is equipped with a spindle speed of 4,500 rpm and a main spindle power of 11 kW. If you are looking to get high-quality turning capabilities, consider the Okuma GENOS L200E-M horizontal turning machine we have for sale. Contact us for further details.Max swing over covers: 450 mm
Max turning diameter: 200 mm
Max turning length: 380 mm
Spindle nose: ASA A2-6
Front bearing diameter: 100 mm
Spindle bore: 62 mm
Bar capacity: 50 mm
Rapid traverse (X/Z): 20–25 m/min

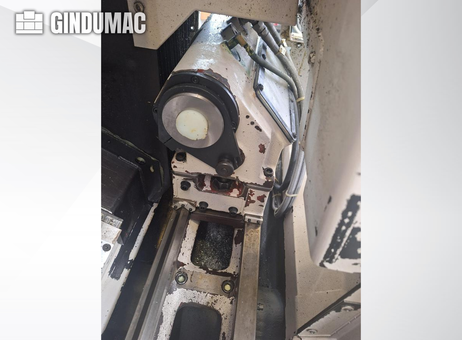

Tailstock taper: MT No. 5
Tailstock quill stroke: 100 mm

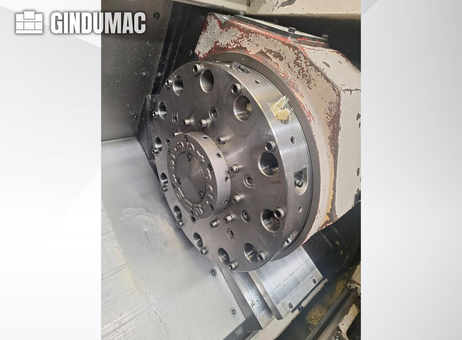

Turret type: VDI-30 V12
Indexing time (1 position): 0.1 sec
OD tool size: 20 x 20 mm
ID tool size: 32 mm
Live tool speed: 6,000 rpm
Live tool power: 4.0 / 1.8 kW
Floor space: 2.081 x 1.550 m
Total power on time: 23,498 hours
Operating time: 6,490 hours
Cutting time: 5,278 hours
Additional equipment
Static tool holder kit included
Control Brand: OKUMA
Control Model: OSP P200 L
Counter Spindle: no
Driven Tools: no
Machine Height: 1569 mm
Machine Weight: 3800 kg
Number of Axes: 3
Spindle Power: 11 kW
Spindle Speed: 4500 RPM
X-axis Travel: 165 mm
Z-axis Travel: 400 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
