| Manufacturer | OERLIKON |
|---|---|
| Model | C28 |
| Year | 2000 |
| Location | Germany
|
This listing is for an OERLIKON C28 bevel gear cutting machine with curved toothing, manufactured in the year 2000. It is equipped with CNC control, specifically a Siemens 840C system, allowing for precise and automated gear cutting operations. The machine is designed to handle bevel gears with a maximum wheel diameter of 275 mm and a wheel width of 55 mm. It supports gear modules ranging from 1.5 to 6.5, providing versatility for different gear sizes.
The C28 model offers multiple gear cutting processes. The Face Hobbing Continuous process enables simultaneous rotation of the workpiece and tool, producing all teeth in one operation. The cutter head contains several cutter groups that are not arranged in a circle. For parallel teeth, the machine produces a conical tooth head surface. The Single Part Process involves the tool plunging into the workpiece to cut each tooth individually, with the cutter head's knives arranged on a circular path. This process requires the machine to be prepared with a direct measuring system, part gear brake workpiece axis, and the appropriate license file.

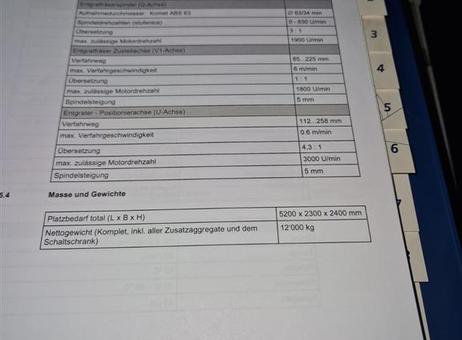

The machine can machine both wheels and pinions, offering flexibility for gear manufacturing. It measures 5200 mm in length, 2300 mm in width, and 2400 mm in height, with a total weight of 12,000 kg.

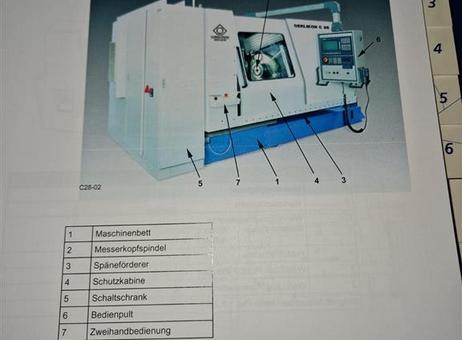

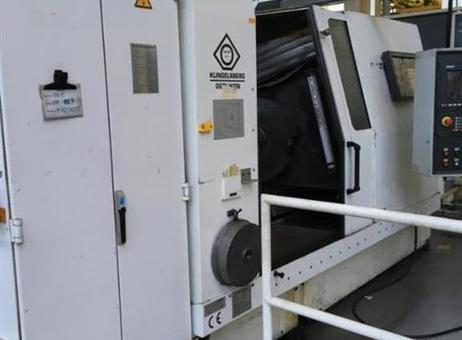

Visible components include a control panel with buttons and display located on the right side, facilitating operator interaction. Safety features such as warning signs for electrical hazards are present on the machine doors. Inside the enclosure, a rotating spindle or chuck is visible, which is integral to the gear cutting process. The machine is labeled with the 'KLINGELNBERG' brand, indicating possible association or branding.
The machine is offered in as-is, where-is condition. No claims regarding testing, refurbishment, or warranty are made.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Machine type: Bevel gear cutting machine - curved toothing
Make: OERLIKON
Type: C28
Year of construction: 2000
Control type: CNC
Control name: Siemens 840C
Wheel diameter - max.: 275 mm
Wheel width: 55 mm
Module - max.: 6.5
Module - min.: 1.5
Face Hobbing-Continious Process:
- Continuous process: Workpiece and tool (usually spiron) rotate simultaneously, all teeth are produced simultaneously in one operation.
- Cutter head has several cutter groups (not arranged in a circle).
Parallel tooth:
- Conical tooth head surface.
Single part process:
- Workpiece stands and tool (usually Arcon) turns and cuts a tooth by plunging the tool.
- Once a tooth has been cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished.
- The cutter head has all knives arranged on a circular path.
Conical tooth height:
- Parallel tooth head surface.
Special features:
- The C28 can machine both wheel and pinion.
- However, a C28 must be "prepared" for the single part process, i.e. direct measuring system + part gear brake workpiece axis + license file for producing single part processes.
Technical condition: as-is, where-is
CNC: Yes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
