Contact us to receive an offer.
| Manufacturer | NORDSON |
|---|---|
| Model | E DRIVER 4 |
| Year | |
| Location | Italy
|
The Nordson E DRIVER 4 is an electronic control unit specifically designed for operating Nordson electric dispensing guns. These guns are commonly used for precise application of adhesives, sealants, hot melts, cold glues, and various other fluids. The unit replaces traditional pneumatic actuation with programmable electric control, enhancing accuracy, repeatability, and process stability in dispensing operations.
This model is a four-channel electric controller capable of independently managing up to four Nordson electric dispensing guns. Each channel can be configured separately for timing, stroke, and speed, ensuring consistent drop, bead, or spray formation even at high production speeds. This eliminates the need for air regulators and solenoid valves typically found in pneumatic systems, reducing instabilities associated with those methods.
The E DRIVER 4 serves as the central control "brain" of the dispensing system, delivering power, control signals, and managing open/close cycles of the guns. When synchronized with a programmable logic controller (PLC) or line encoder, it facilitates highly accurate material positioning, which is critical for high-speed manufacturing processes and those with stringent regulatory requirements.
The unit features four Nordson E DRIVER gun driver modules labeled P1, P2, P3, and P4, each equipped with dials for X and Y dot time adjustments and multiple indicator lights displaying power, trigger, output, fault, warning, OK, open, short, and dot mode statuses. These modules are mounted in a blue metal enclosure that shows some surface wear, indicating prior use. Multiple cables are connected to the left side and rear input/output ports of the modules, including trigger input and fault output connections.
Technical specifications include a voltage requirement of 200-240 volts, frequency of 50/60 Hz, and single-phase power supply. The unit measures 430 mm in width, 250 mm in depth, and 280 mm in height, with a weight of approximately 15 kg. The enclosure is mounted on a metal table secured with screws. Overall, the Nordson E DRIVER 4 is a robust and precise controller suitable for pharmaceutical, chemical, cosmetic, food, dietary, and medical device manufacturing applications where accurate fluid dispensing is essential.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
TYPE OF MACHINERY:
Electronic control unit for dispensing guns.
AREA OF USE:
Pharmaceutical, chemical, cosmetic, food, dietary, medical devices, manufacturing
PECULIARITY:
The E DRIVER 4 is an electronic control unit designed to operate Nordson electric dispensing guns, used primarily for dispensing adhesives, sealants, hot melts, cold glues and other fluids. It replaces traditional pneumatic actuation with precise and programmable electric control, providing greater accuracy, repeatability and process stability. The unit is a four-channel electric controller capable of controlling up to four Nordson electric dispensing guns independently, which can be configured separately for timing, stroke and speed. This ensures uniformity of drops, beads or sprays even at high production speeds, eliminating air regulators, solenoid valves and the typical instabilities of pneumatic systems. The Nordson E-DRIVER 4 is the "brain" of the dispensing system, controlling with extreme precision when and how material is dispensed. When synchronized with a PLC or line encoder, it enables extremely accurate material positioning, critical in high-speed processes or those subject to stringent regulatory requirements. It is not a device that directly dispenses adhesive; its function is to drive the guns, providing power, control signals, timing, and control of open/close cycles.
TECHNICAL SPECIFICATIONS.
Voltage: 200-240 volts
Frequency: 50/60 Hz
Phases: 1
Dimensions (WxDxH): 430 x 250 x 280 mm
Weight: 15 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2009 |
| Offers online | 1275 |
| Last activity | Oct. 28, 2026 |
TYPE OF MACHINERY:
Electronic control unit for dispensing guns.
AREA OF USE:
Pharmaceutical, chemical, cosmetic, food, dietary, medical devices, manufacturing
PECULIARITY:
The E DRIVER 4 is an electronic control unit designed to operate Nordson electric dispensing guns, used primarily for dispensing adhesives, sealants, hot melts, cold glues and other fluids. It replaces traditional pneumatic actuation with precise and programmable electric control, providing greater accuracy, repeatability and process stability. The unit is a four-channel electric controller capable of controlling up to four Nordson electric dispensing guns independently, which can be configured separately for timing, stroke and speed. This ensures uniformity of drops, beads or sprays even at high production speeds, eliminating air regulators, solenoid valves and the typical instabilities of pneumatic systems. The Nordson E-DRIVER 4 is the "brain" of the dispensing system, controlling with extreme precision when and how material is dispensed. When synchronized with a PLC or line encoder, it enables extremely accurate material positioning, critical in high-speed processes or those subject to stringent regulatory requirements. It is not a device that directly dispenses adhesive; its function is to drive the guns, providing power, control signals, timing, and control of open/close cycles.
TECHNICAL SPECIFICATIONS.
Voltage: 200-240 volts
Frequency: 50/60 Hz
Phases: 1
Dimensions (WxDxH): 430 x 250 x 280 mm
Weight: 15 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Nordson E DRIVER 4 is an electronic control unit specifically designed for operating Nordson electric dispensing guns. These guns are commonly used for precise application of adhesives, sealants, hot melts, cold glues, and various other fluids. The unit replaces traditional pneumatic actuation with programmable electric control, enhancing accuracy, repeatability, and process stability in dispensing operations.
This model is a four-channel electric controller capable of independently managing up to four Nordson electric dispensing guns. Each channel can be configured separately for timing, stroke, and speed, ensuring consistent drop, bead, or spray formation even at high production speeds. This eliminates the need for air regulators and solenoid valves typically found in pneumatic systems, reducing instabilities associated with those methods.
The E DRIVER 4 serves as the central control "brain" of the dispensing system, delivering power, control signals, and managing open/close cycles of the guns. When synchronized with a programmable logic controller (PLC) or line encoder, it facilitates highly accurate material positioning, which is critical for high-speed manufacturing processes and those with stringent regulatory requirements.

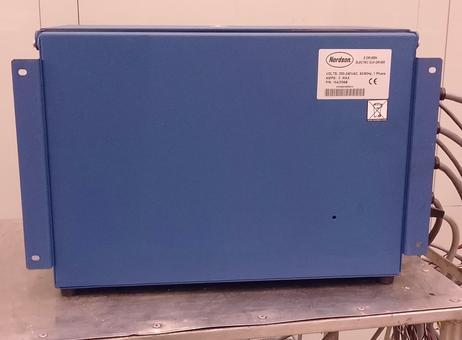

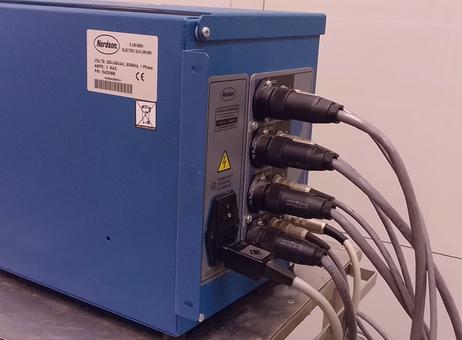

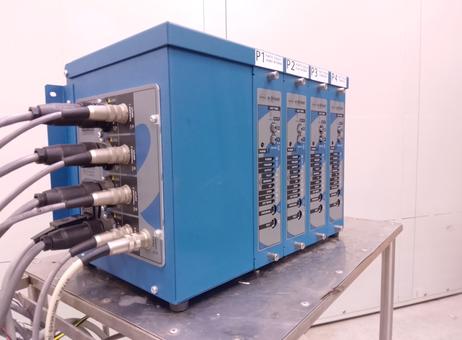

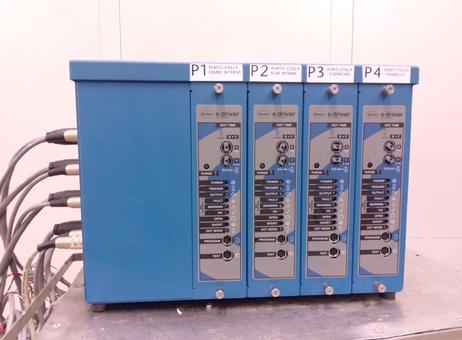

The unit features four Nordson E DRIVER gun driver modules labeled P1, P2, P3, and P4, each equipped with dials for X and Y dot time adjustments and multiple indicator lights displaying power, trigger, output, fault, warning, OK, open, short, and dot mode statuses. These modules are mounted in a blue metal enclosure that shows some surface wear, indicating prior use. Multiple cables are connected to the left side and rear input/output ports of the modules, including trigger input and fault output connections.
Technical specifications include a voltage requirement of 200-240 volts, frequency of 50/60 Hz, and single-phase power supply. The unit measures 430 mm in width, 250 mm in depth, and 280 mm in height, with a weight of approximately 15 kg. The enclosure is mounted on a metal table secured with screws. Overall, the Nordson E DRIVER 4 is a robust and precise controller suitable for pharmaceutical, chemical, cosmetic, food, dietary, and medical device manufacturing applications where accurate fluid dispensing is essential.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2009 |
| Offers online | 1275 |
| Last activity | Oct. 28, 2026 |
