Manufacturer Nordson
Model 3100, 3500
Year -
Location Italy IT
Category Miscellaneous packaging machines
Product id P71218015

Contact the seller

8 buyers were interested in this machine last month

You have the same machine to sell?

Add it to our catalogue for FREE

Start selling

About this seller

Client type Dealer
Active since 2009
Offers online 736
Last activity June 30, 2020

Specifications

-------------------
Length x width x height 782.0 mm × 343.0 mm × 584.0 mm
Weight57.0 kg
Worked hours
Hours under power
State good
At local norms ---------
Status visible

Description

DESCRIPTION:
Nordson products are designed and manufactured according to strict specifications, standards of high quality and innovative technologies that provide efficient long-term performance. These applicators melt the adhesive, control it at the operating temperatures, and pump it through hoses to the dispensing guns. These apply the adhesive to the surface of the product or package. It is used to melt, pump/transfer and apply hot material, but not intended for use with polyurethane-reactive hot melt material.

SECTORS OF USE:
Pharmaceutical, chemical, cosmetic, food, dietary, medical devices, manufacturing.

MAIN FEATURES:
The tank melts the adhesive and holds it until it is pumped to the dispensing guns. The materials pass through a piston pump into a distribution manifold. The manifold directs the flow of adhesive from the pump to the filter and from the filter to the hoses and guns. With its aluminium construction, cast-in heaters, and integral melting fins, the tank is designed for efficient heat transfer. A strainer in the tank prevents unmelted adhesive from blocking the pump inlet when you fill the tank. The tank is Teflon-coated for easy cleaning. The operator panel provides the controls and indicators you need to program, operate, and monitor your hot melt system. The control system regulates all temperature settings and controls how the unit functions. Nordson series H-400 guns are used to apply thermoplastic hot melt adhesive to a product and are designed for use with Nordson hot melt units and hoses. H-400 guns use resistance temperature detectors (RTDs) for precise temperature sensing. Nordson RTD-style hot melt hoses provide superior temperature control, reliability and improved safety. Equipped with PC-40 Pattern control, which is a time-based control that makes it possible to quickly and easily set up, select, or change material application patterns when material is applied to substrates moving at a constant line speed. It controls the deposit of material on a moving surface (substrate). This unit is equipped with MultiScan control which provides individual setpoints for each heated component and microprocessor-based diagnostics.

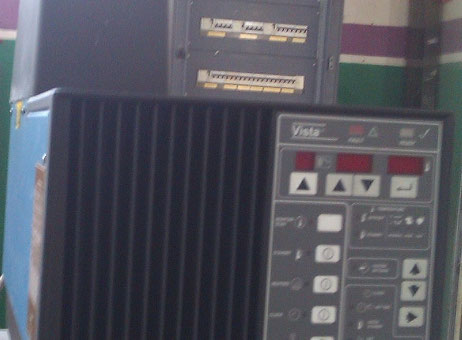

14:1 PISTON PUMP - NON CIRCULATING 4-PORT MANIFOLD WITH STANDARD FILTER - VISTA CONTROL (STANDARD) - 2 HOSE/GUN PAIRS - CE CERTIFICATION

Types available: 1 unit of 3100-2AA32 and 1 unit of 3500-2EA34. Price for one.

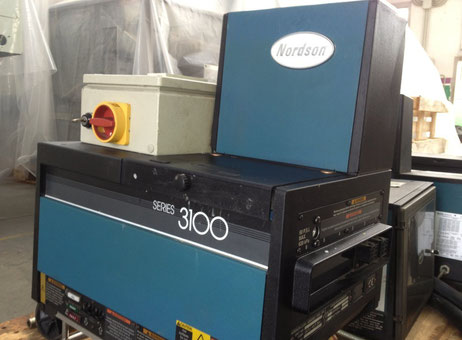

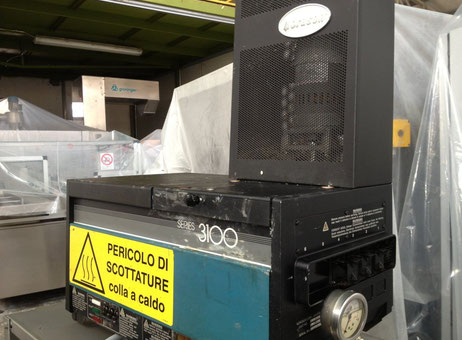

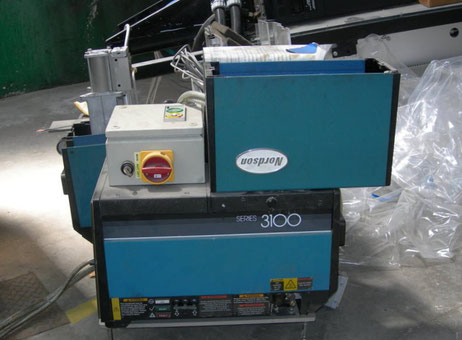

TECHNICAL DETAILS MOD. 3100

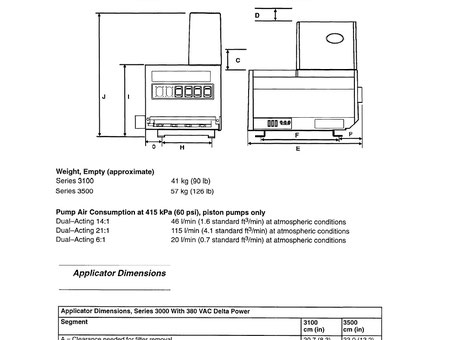

Dimensions (LxWxH) mm 603x343x559
Weight ca. Kg 41
Viscosity range cps 1000-30.000
Tank volume ml 3714
Tank capacity kg 3,6
Melting speed Kg/hr 3,6
Max speed pumping 6:1 Kg/min 0,5
Max speed pumping 14:1 Kg/min 0,5
Max speed pumping 21:1 Kg/min 0,9
Environment temperature °C 0-50
Operatig temperature range UniScan Control System °C 105-205
Operatig temperature range MultiScan Control System °C 70-230
Stability control temperature °C 0,5
Recommended operating pressure bar 0,70 – 4,15
Max working hydraulic pressure with gun 6:1 bar 37,2
Max working hydraulic pressure with gun 14:1 bar 86,9
Max working hydraulic pressure with gun 21:1 bar 103,4
Max. tube number 2
Max energy consumption 380 VAC delta, 50-60 Hz, 3 phase

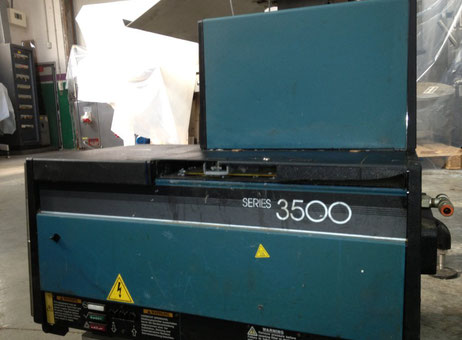

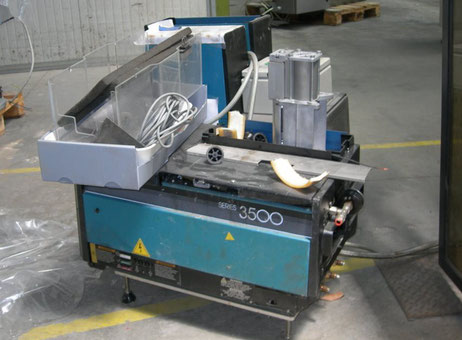

TECHNICAL DETAILS MOD. 3500
Dimensions (LxWxH) mm 782x343x584
Weight ca. Kg 57
Viscosity range cps 1000-30.000
Tank volume ml 8850
Tank capacity kg 8,6
Melting speed Kg/hr 9,5
Max speed pumping 6:1 Kg/min 0,5
Max speed pumping 14:1 Kg/min 0,5
Max speed pumping 21:1 Kg/min 0,9
Environment temperature °C 0-50
Operatig temperature range UniScan Control System °C 105-205
Operatig temperature range MultiScan Control System °C 70-230
Stability control temperature °C 0,5
Recommended operating pressure bar 0,70 – 4,15
Max working hydraulic pressure with gun 6:1 bar 37,2
Max working hydraulic pressure with gun 14:1 bar 86,9
Max working hydraulic pressure with gun 21:1 bar 103,4
Max. tube number 2, 4 o 6
Max energy consumption 380 VAC delta, 50-60 Hz, 3 phase


Please note that this description may have been translated automatically. Contact us for further information.
