| Manufacturer | NIKON METROLOGY |
|---|---|
| Model | MCA II METRIS 5124 |
| Year | 2011 |
| Location | Poland
|

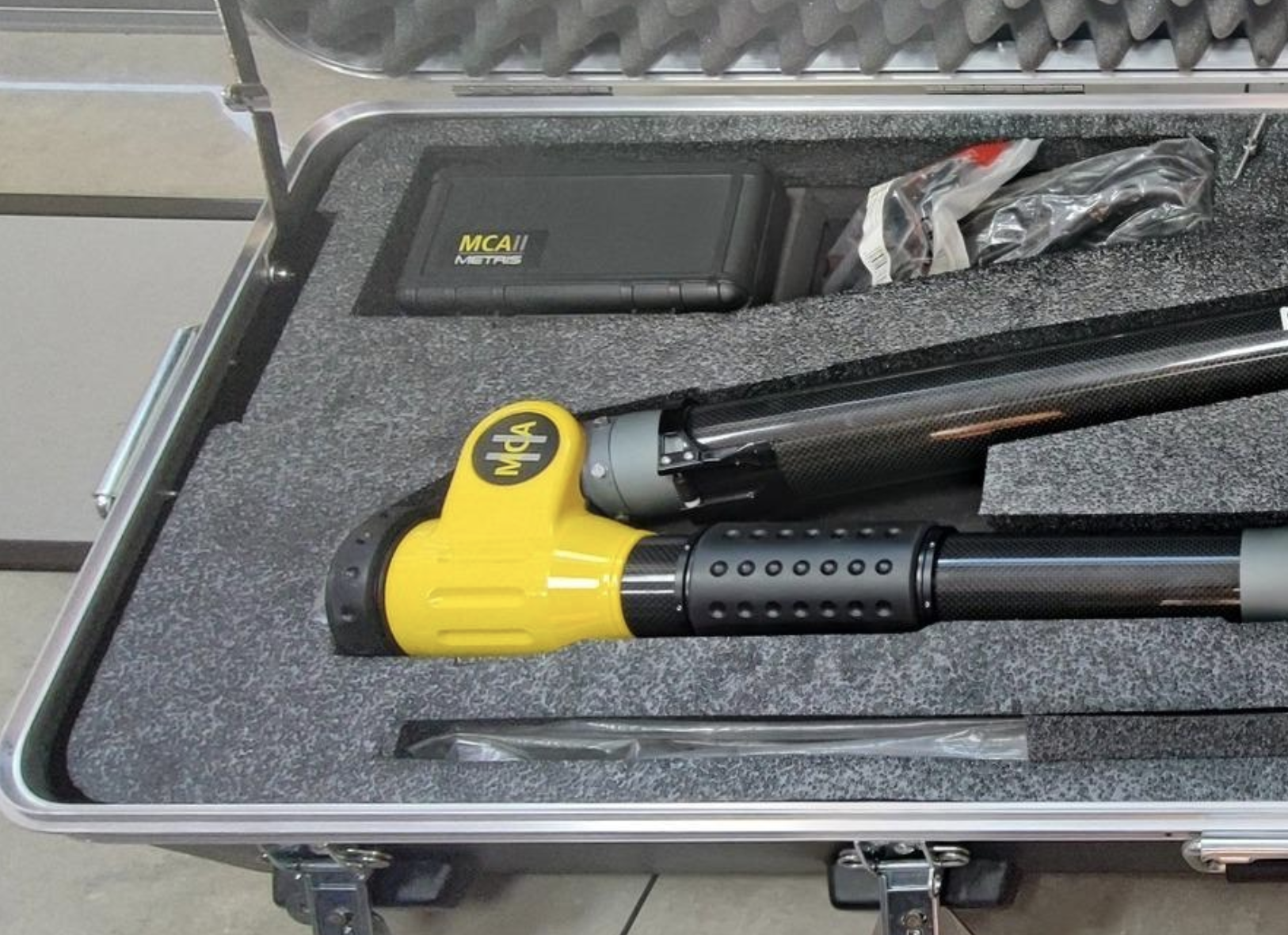

The NIKON METROLOGY MCA II METRIS 5124 is a coordinate measuring arm manufactured in 2011, with a stated arm length of 2.4 m and six axes. It is designed for dimensional and geometric measurement, object digitization, measurement of regular geometric features, and inspection of curved surfaces. The stated applications include machinery, automotive, and aerospace work, and measurements can be carried out in a production environment or on large-scale parts.
The measuring process uses movement of the arm to establish reference points. The operator positions the measuring tip against the workpiece and confirms each point using a button on the head. The measured coordinates are processed into a Cartesian X, Y, Z coordinate system and can be used to determine dimensions by approximating features such as circles, cylinders, and cones.
The described configuration comprises three carbon-fiber arm tubes, a contact and contactless measuring head, two counterbalance actuators, and HEIDENHAIN incremental angular encoders in six joints. It also includes a rotary overlay, mounting bracket, integrated Li-Ion battery, and WiFi module for wireless communication with a computer. The counterbalance actuators are described as compensating for the arm’s mass, while the rotary overlay facilitates arm movement and insulates against heat transfer from the operator’s hand.
The stated measurement figures are a maximum volumetric deviation of 21 μm, X, Y, Z coordinate repeatability across the full range of motion (SPAT) of 19 μm, point repeatability of 0.013 mm, and length accuracy of 0.022 mm. No additional accessories or condition details are specified.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The MCA II METRIS 5124 measuring arm was manufactured in 2011. This versatile 2.4-meter-long device is used in numerous industries, including machinery, automotive, and aerospace. It is ideal for measuring both small objects and complex, large-scale parts. Furthermore, thanks to computerized measurement procedures and a compact design, it allows for measurements to be performed directly in the production environment or even inside large-scale objects.
The METRIS 5124 measuring machine is used for:
- measuring dimensional and geometric deviations of workpieces
- digitizing objects
- measuring elements with regular geometric shapes
- measuring the surfaces of curved objects.
The measurement process begins with the angular movement of the arms to "pass" through reference points. The operator then places the measuring tip on the surface of the workpiece being measured and confirms the coordinates of the measured point using a button located on the head. These coordinates are transformed by computational procedures into a Cartesian coordinate system (X, Y, Z), where they are the basis for determining dimensions by approximating measured elements and geometric figures, such as circles, cylinders, and cones.
The NIKON METROLOGY MCA II coordinate measuring arm consists of:
- three-tube carbon fiber arms with a total length of 2.4 m
- a contact and contactless measuring head
- based on two counterbalance actuators to compensate for the arm's mass
- HEIDENHAIN incremental angular encoders mounted in six joints, which ensure unrestricted arm rotation during measurement
- a rotary overlay that facilitates angular movement of the arm and insulates against heat transfer from the operator's hand
- a mounting bracket
- an integrated Li-Ion battery
- a WiFi module for wireless communication with a computer.
- number of axes: 6
- arm length: 2.4 m
- volumetric efficiency (maximum deviation): 21 μm
- repeatability of X, Y, Z coordinates in the entire range of motion (SPAT): 19 μm
- point repeatability: 0.013 mm
- length accuracy: 0.022 mm
