| Manufacturer | NIKKEI |
|---|---|
| Model | VH-1010 |
| Year | 2007 |
| Location | Italy
|
The NIKKEI VH-1010 is a vertical machining center manufactured in 2007, designed for precision and versatility in machining operations. It features a robust worktable measuring 1200 mm in length and 450 mm in width, equipped with five T-slots (75 mm wide and 18 mm spacing) to securely mount workpieces. The table can support a maximum part weight of 450 kg, making it suitable for a variety of medium-sized machining tasks.
This 3-axis machine offers substantial axis travels with 1010 mm along the X-axis, 500 mm along the Y-axis, and 520 mm along the Z-axis, providing ample working range. The spindle is powered by a 7.5 kW motor and can reach speeds up to 8000 rpm, accommodating diverse machining requirements. The spindle diameter is 65 mm with a BT 40 taper size.
Precision is a key attribute of the VH-1010, with a positioning accuracy of ±0.003 mm and repeatability of 0.005 mm over 300 mm, ensuring high-quality machining results. Rapid feed rates for all three axes reach up to 15,000 mm/min, while cutting feed rates range from 1 to 5,000 mm/min.
The machine measures 2508 mm in length, 2900 mm in width, and 2700 mm in height, with a total weight of 5350 kg. It requires an air pressure of 5 kg/cm² for operation.

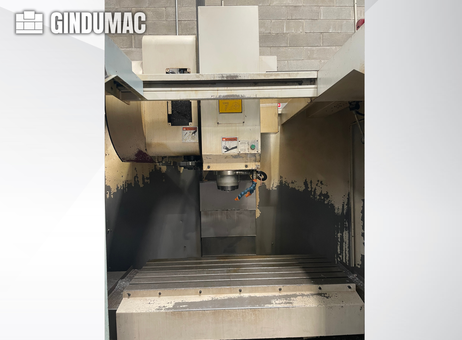

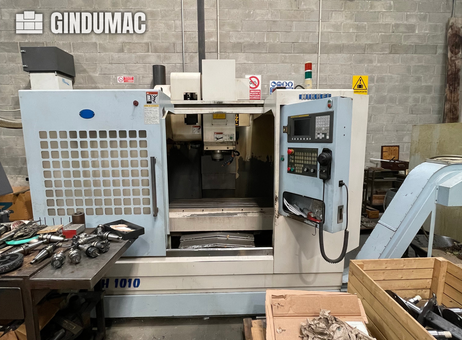

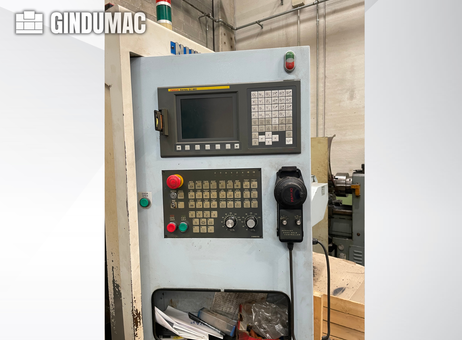

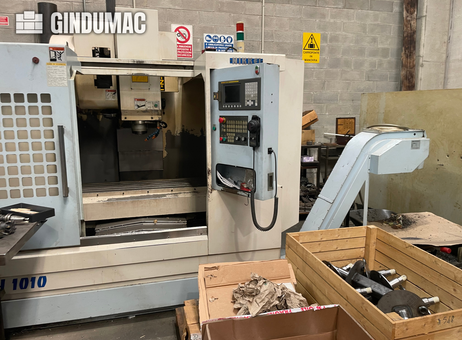

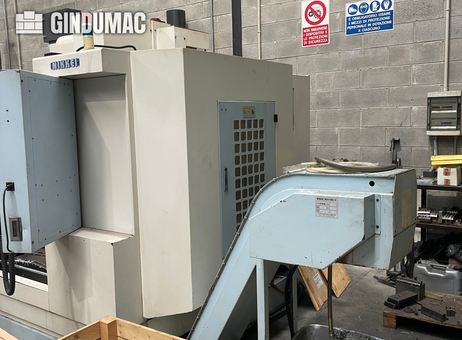

From the images, the machine includes a control panel mounted on the right side, featuring a screen, keypad, emergency stop button, and a hand-held pendant controller for manual operation. A chip conveyor system is attached to the right side of the machine to facilitate chip removal during machining processes. The machine shows signs of use, such as paint wear and some scratches, particularly inside the machining area and on the exterior surfaces. Safety and operation warning labels are visible on the machine body.
Documentation related to the machine includes an inspection report dated June 7, 2007, indicating maintenance and inspection history. Overall, the NIKKEI VH-1010 vertical machining center is a capable machine suitable for various machining tasks, offering a good balance of size, power, and precision.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3-axis NIKKEI VH-1010 was manufactured in 2007. It features a table size of 1200 × 450 mm and a maximum table load of 450 kg. The machine offers impressive axis travels with an X-axis of 1010 mm, Y-axis of 500 mm, and Z-axis of 520 mm. If you are looking to get high-quality machining capabilities, consider the NIKKEI VH-1010 vertical machining centre we have for sale. Contact us for further details.Table
Table size: 1200 × 450 mm
T-slot: 5 / 75 / 18 mm
Distances
Spindle nose to table: 120 – 650 mm
Spindle center to Z-axis guide way: 540 mm
Distance from Z-axis guide way to table center: 290 – 790 mm
Spindle
Spindle diameter: Ø65 mm
Feed rates
Rapid feed (3 axes): 15000 mm/min
Cutting feed: 1 – 5000 mm/min
General
Packing dimensions: 2788 × 2300 × 2450 mm
Accuracy
Positioning accuracy: ±0.003 mm
Repeatability: 0.005 / 300 mm
Other
Air pressure: 5 kg/cm²
Machine Height: 2700 mm
Machine Length: 2508 mm
Machine Weight: 5350 kg
Machine Width: 2900 mm
Number of Axes: 3
Spindle Power: 7.5 kW
Spindle Speed: 8000 RPM
Taper Size: BT 40
X-axis Travel: 1010 mm
Y-axis Travel: 500 mm
Z-axis Travel: 520 mm
