Contact us to receive an offer.
| Manufacturer | NEWLONG |
|---|---|
| Model | 148T+504 TH-7 |
| Year | 2013 |
| Location | Italy
|
This listing is for a pre-owned NEWLONG 148T+504 TH-7 paper bag making machine, manufactured in 2013. It is designed for producing square bottom (SOS) paper bags, either with twisted handles or without handles. The machine features a reel-fed system suitable for handling paper rolls up to 1,200 mm in diameter with a 76 mm inner core diameter. It accommodates paper weights ranging from 80 to 140 g/m².
The bag making line includes several integrated units:

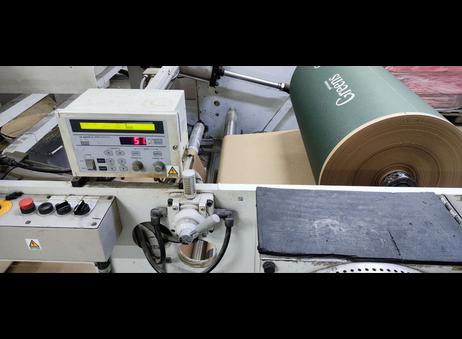

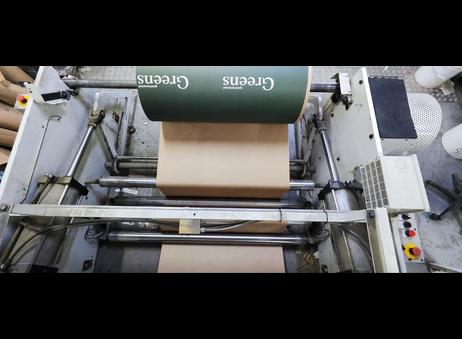

1. Paper Roll Stand: Equipped with an air cylinder type lifting device for vertical adjustment and motorized horizontal adjustment for the paper roll. It also includes a photo cell alarm for low paper quantity and supports 3-inch inner diameter paper roll shafts.

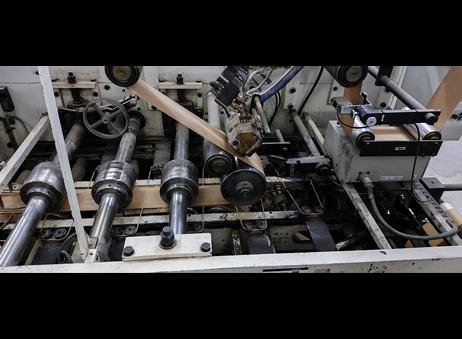

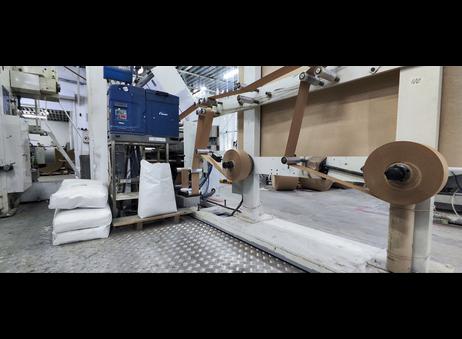

2. Handle Making & Inserting Unit: Features a cold glue pasting device, an electronic web guide (E.P.C.) for handle patch paper, auxiliary web draw unit, and guide rolls. Handles are made from twisted paper rolls with sizes between 4 and 8 mm, sealed using cold chemical glue. The handle patch size is fixed at 190.5 mm length by 100 mm width, slit into two 50 mm wide lines.
3. Forming Unit: Includes forming plates and gusset adjusting rolls to determine bag width and gusset width. Bag width adjustments are made by replacing the forming plate.

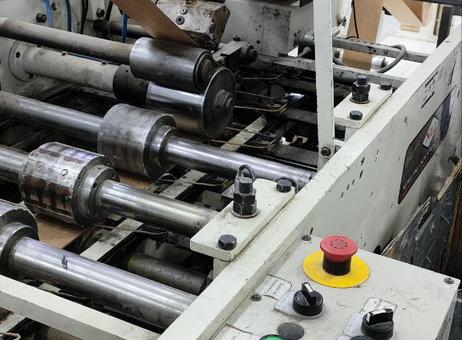

4. Main Body: Contains a sandblast roll, straight cutter unit, bag feeding rolls, creasing rolls, bottom opening and gripping cylinders, and a bottom forming section. It also has a dry prevention bottom size circulation system and motorized gripper horizontal adjustment. The main motor is 11 kW with inverter control.
5. Delivery Unit: Vertical type with press rollers, electrical counter, and digital speed meter.
Additional features include electrical wiring, control box, standard tools and parts, and an optional upgrade for hot chemical glue sealing. The machine supports various gear sizes for package rapport.

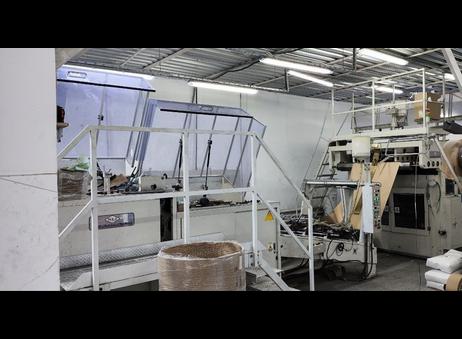

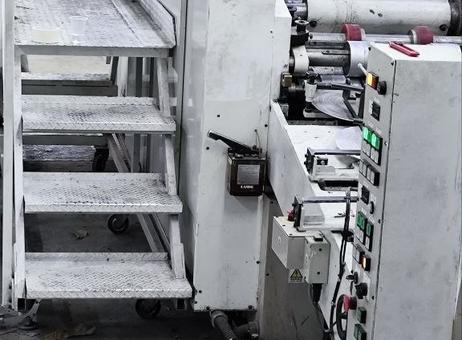

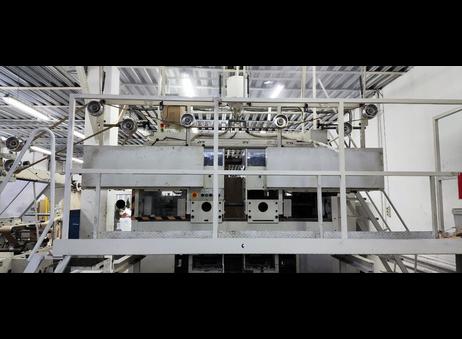

The machine appears structurally intact with some signs of use such as dirt and wear. It includes a metal platform with railing and stairs for operator access. A large roll of brown paper or cardboard wrapped in plastic is positioned in front of the machine in the images.
Cutting length ranges from 400 to 770 mm without handles and 400 to 650 mm with handles. Bag length ranges from 290 to 700 mm without handles and 290 to 580 mm with handles. Bag width ranges from 220 to 540 mm, and bottom width ranges from 80 to 250 mm.
This equipment is suitable for industrial-scale production of square bottom paper bags with twisted handles, offering precise control over bag dimensions and handle placement.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Reel-fed Square bottom (SOS) paper bag making machines with twisted handles unit
Pre-owned NEWLONG 148T + 504TH-7 of the year 2013 for the production of square bottom bags with twisted handles or without handles.
The bag making line composed by:
1. PAPER ROLL STAND
Air Cylinder type lifting (up down) device; Paper roll horizontal adjustment by motor; Alarm for small quantity of paper roll (photo cell); Paper roll shaft by stoppers for 3 inches ID
2. HANDLE MAKING & INSERTING UNIT
Cold glue pasting device; Web Guide (E.P.C.) for handle patch paper; Auxiliary Web Draw Unit; Guide Rolls
3.FORMING UNIT
Complete with forming plates and gusset adjusting rolls. Bag width and Gusset width are determined by this unit. Bag width can be changed by replacing of the Forming Plate.
4.MAIN BODY
Sandblast roll; Straight cutter unit; Bag feeding rolls; Creasing rolls; Bottom opening cylinder; Bottom sise circulation for dry prevention; Bottom gripping cylinder; Bottom forming section; Pripeloctor device (El Timer system); Grippers horizontal adjustment by motor
5. DELIVERY UNIT
Vertical type; Press rollers; Electrical counter; Digital speed meter
6. OTHERS
11 KW main motor (Inverter); Electrical wiring; Control box; Standard tools; Standard parts
Note: Upgrade an additional method of sealing with hot chemical glue; Additional gears (package rapport) 35,37,39,41,45,49,58,59,61cm.
The equipment is in excellent working condition
Cutting Length Min Max: without handles 400 - 770 mm | with handles 400 - 650 mm
Bag Length Min Max: without handles 290 - 700 mm | with handles 290 - 580 mm
Bag Width Tw Min Max: 220 - 540 mm
Bottom Width Bw Min Max: 80 - 250 mm
Paper Roll Diameter: Max. 1,200 mm
Inner Core Diameter: 76 mm
Applicable Paper Weight: 80 - 140 g/m2
Handle Center Distance Tw Bw: 320 - 740 mm
Photocell For Preprinted Reels: yes
Handles Type: Twisted
Hanldes Specification: Material of Handle: Twisted Paper Roll | Material Size: 4 - 8 mm | Sealing Method Cold chemical glue | Handle Patch Size: Paper Lenth 190,5 mm - Paper Width 100 mm (fixed) (this paper is slit into 2 line of each 50 mm width) | Handle Height: Handle Patch Width (50 mm) 170 mm | Paper Roll Diameter: Max.1,000 mm (ID 76 mm) | Paper Roll Stand : 4 stands | Paper Weight : 100 - 120 g/m
