New offers - Miscellaneous industrial equipment 2800

This is a 2022-built Frech K3200-210 cold chamber die casting machine with 32,000 kN (approx. 3,200 t) of locking force. It was . Frech’s catalogue lists it as the GDK 3200 series. The machine is designed for large, high-integrity aluminium and magnesium castings, such as transmission and e-motor housings, structural body parts, subframes, shock towers, and battery trays for the automotive and e-mobility sectors. The machine has a 2,500 mm platen, 1,600 mm between tie bars, and a die height range of 1,000 to 1,800 mm, so it can take large, complex dies. The “-210” casting unit delivers up to 2,100 kN of casting force. With plunger diameters from 110 to 180 mm and a 1,200 mm casting stroke, shot volumes range from about 7,600 to 20,350 cm³ (up to roughly 50 kg of aluminium per shot). Specific injection pressure ranges from 825 to 2,210 bar. The Frech Realtime Control (RC) casting unit comes as standard and provides precise, repeatable shot profiles for both thin-walled and thick-walled parts. The energy-efficient hydraulics use frequency-controlled pump drives to give fast movements and reduce pressure peaks.

Company is selling its prodction line equipment. There are three main parts: (1) LCD Front end line with cleaning patterningt process; flexo coating; ODF assembling equiment. (2) Standalone ODF assembling machine for 400x600mm size panels. (3) compact FHR sputter coating line FHR.2500.H for large flat optical components. More details - please request catalogue.

Three BRETON vacuum vibration-compression systems for the production of marble blocks for construction purposes, originating from the former Quarella plant in , which will operate continuously until May 2025. Approximate production: 12 blocks per 8 hours per system; block dimensions: 1250 x 800 x 3000 mm. Available systems: 1 manufactured in 2009, 1 manufactured in 2003, and 1 manufactured in 1998. Operating cycle: The aggregate hopper is filled via conveyor belts; dust-generating material is fed via a pneumatic conveyor. A movable hopper discharges the dry material into the mixer: first, the aggregates are dry-mixed; then resins with a binder are added; and finally, mixing is performed under vacuum. The mixture is discharged into the lower mold, which is automatically pressed under vacuum using a roller conveyor. After leaving the press, the block is transferred to a pre-catalytic furnace for curing. Also available are precatalytic kilns, 18 vertical frames for cutting blocks, powder silos, and crushing equipment. Individual production lines are also available (price per line). Site visits in can be arranged by prior appointment.

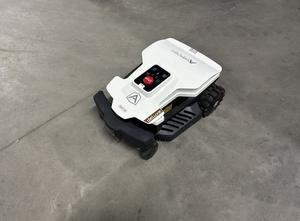

Garden, Turf and Park machines / Robot Lawn Mowers Year of manufacture: 2022 Maximum lawn area: Up to 2,500 m² (standard) Mowing zones: Can manage up to 8 separate mowing zones. Cutting width: 29 cm. Cutting height: 25 mm to 60 mm, fully motorized/electrically adjustable. Mowing system: Four-point, star-shaped fixed blade (mulching function) Maximum slope: 45% (approx. 24°). Battery type: Lithium-ion (25.9 V – 5.0 Ah – 130 Wh). Average runtime: Approximately 3 hours per battery charge (+/- 20%). Charging system: via contact charger in the charging station Dimensions: 263 x 534 x 386 mm Weight: 12.4 kg Unused in original packaging

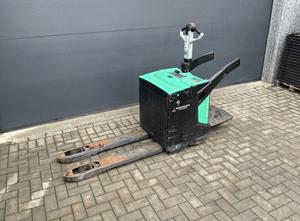

Internal Transportation / Stackers Electric: 24 V Battery charger: yes Lifting capacity: 2000 kg Maximum lift height: 220 mm Fork length: 1150 mm Hour meter reading: 1665 hours Key: yes Overall dimensions: 1900x750x1300 Net weight: 445 kg

Internal Transportation / Stackers Electric: 24 V Battery charger: yes Lifting capacity: 2000 kg Maximum lift height: 220 mm Fork length: 1150 mm Hour meter reading: 461 hours Key: yes Overall dimensions: 1900x750x1300 Net weight: 445 kg

Vertical packaging formers with heating elements for the edges; longitudinal seam along the edge. The first former has a package width of 400 mm. The second former has a package width of 340 mm. Lightly used.

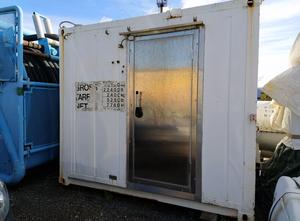

The Refrigeration equipment FINSAM BOCK HG22E/160-4 is a top-of-the-line unit designed for efficient cooling of perishable goods during transport. ✅ Featuring a powerful BOCK compressor, this equipment ensures consistent temperature control to keep products fresh and intact. ✅ With a capacity of 22 kW, this refrigeration unit is suitable for various types of commercial vehicles and trailers, making it a versatile and reliable choice.

Manufacturer: Spencer & Halstead Model: 12 Wheel Monorail Year of manufacture: 1995 Machine type: Overhead conveyor shot blasting system Material feed: Overhead conveyor Number of blast turbines: 12 Power per turbine: 22 kW Turbine diameter: 495 mm Blast media velocity: 74 m/s Media flow control: MagnaValve, later retrofit Bucket elevator: Included Outdoor exhaust filter: Donaldson TDS 24, later retrofit Dust extractor: DISAB TELLA BEASSX-15-SPB25, later retrofit Dust extractor usage: Shared with Shot Blast 1 (Schlick Roto-Jet, Lot 676) Condition: Sold as-is, where-is Status: Visible for inspection This high-capacity overhead conveyor shot blasting system is designed for heavy-duty surface preparation and cleaning. It is equipped with 12 blast turbines and includes a bucket elevator. The MagnaValve flow control, Donaldson TDS 24 outdoor exhaust filter and DISAB dust extractor are later improvements or retrofits.

General SKU: 220X102 Make: Mettler Toledo Garvens Type: C 3351 No.: 11004477255 Year of construction: 2019 Mounted on legs: ✓ Main Features Material: Stainless steel Specified Features - Miscellaneous transport Capacity: 600 gramm Capacity: 100 pcs/min Miscellaneous transport Material: Stainless steel General Location: Barneveld With switchgear: (as is) Floorspace: 1,40x0,90 m Total height: 1,20 m CE: ✓ Extra information Extra Specifications: Min 100 g, e=0,2 g, d=0,2 g, belt conveyor, dimensions 1300x200 mm, max conveyor speed 47 m/min, touchscreen control, 100-240 volt, temperature range 0°C/+40°C, accuracy class XIII(1) with pneumatic reject unit, product cap./dimension 200x150x50 mm, product weight 400 g. Material: Stainless steel

General SKU: 250X201 Location: Barneveld CE: ✓ Make: Geppert-band Main Features Motor: 0.18 KW Length: 2600 mm Width: 640 mm Specified Features - Conveyor belt Conveyor belt: ✓ Belt width: 640 mm Belt length: 2600 mm With side guides: ✓ With motor: 0,18 kW, 220-240 volt, 1360 rpm With variable speed drive: ✓ Material: PTFE (Teflon) General Type: GAL-60 Mach.No.: 1308014 Year of construction: 2012 Mounted on frame: ✓ Floorspace: 2,70x1,00 m Total height: 2,80 m
