Contact us to receive an offer.
| Manufacturer | NERI Marchesini |
|---|---|
| Model | BL A420 |
| Year | 2015 |
| Location | Switzerland
|

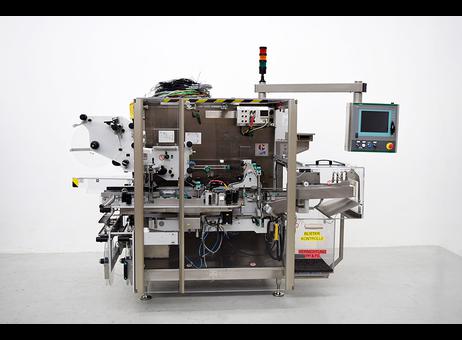

This NERI Marchesini BL A420 is an automatic labelling machine designed for the application of self-adhesive vignettes and tamper-evident seals. Manufactured in 2015 in Italy, the machine features a balcony design with a robust stainless steel construction. Its dimensions are approximately 2500 mm in length, 1500 mm in width, and 2300 mm in height, with a weight of around 1300 kg.

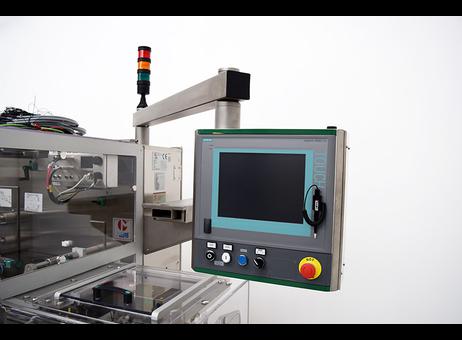

The machine is equipped with a Siemens S7-300 PLC and a Siemens SIMATIC IPC 677 Panel PC touch screen control panel mounted on an adjustable stainless steel arm. The control panel includes an emergency stop button and an attached stylus pen for ease of operation. A signal tower light with red, orange, and green indicators is positioned on top of the machine to provide visual status signals.

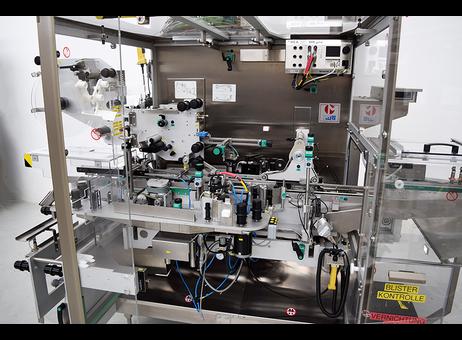

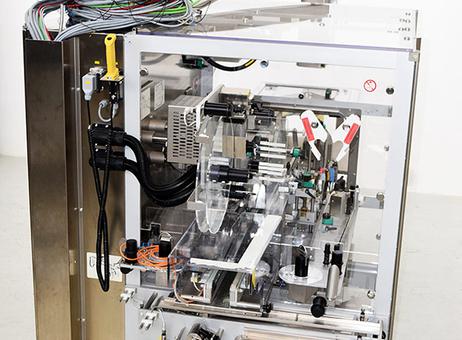

Label application is managed through multiple rollers and a label feed system, supported by various sensors and pneumatic actuators. The labelling mechanism includes a carton transport belt with a pitch of 250 mm. Transparent safety doors with safety interlock mechanisms ensure operator protection, and visible safety labels such as "BLISTER KONTROLLE" and "VERNICHTUNG PP & FS" are affixed to the machine.
The machine incorporates a Dopple REAJET HRpro printing system with camera control and is prepared for integration with the Vision System LAETUS WT Commandor. Various control systems are included for label presence detection and ejection.
This labeller can handle a maximum label length of 250 mm and width of 185 mm, with a capacity of up to 10,800 units per hour (approximately 180 pieces per minute). The format range for folding boxes is from 25 to 185 mm (A), 15 to 85 mm (B), and 68 to 250 mm (H), with the sum of A and B dimensions less than 200 mm.
The machine appears clean and well-maintained with no visible damage or wear on moving parts and rollers. Electrical wiring and pneumatic tubing are neatly arranged and connected to sensors and actuators, indicating good upkeep. This unit is suitable for industrial environments requiring reliable automatic labelling with integrated printing and inspection capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Producer NERI Marchesini
Type BL A420
Year of construction 2015
Dimension ca. [in mm] 2500 x 1500 x 2300
Weight ca. [in kg] 1300
Country of origin Italy
Automatic labeller for the application of self-adhesive vignettes and tamper evident seals. Balcony design. The machine is equipped with:- PLC SIEMENS, Typ S7-300.
- HMI PC SIEMENS IPC 677
- Dopple REAJET printing system, type HRpro with camera control system
- Preparation for Vision System LAETUS WT Commandor
- Carton Transport Belt: pitch 250 mm
- Various control system for label presence with ejection etc.
Output: up to 180 pcs./min.
Format range: Folding box size (A, B, H)A) from 25 to 185 mm
B) from 15 to 85 mm
H) from 68 to 250 mm
A+B <200 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2018 |
| Offers online | 202 |
| Last activity | Oct. 27, 2026 |
Producer NERI Marchesini
Type BL A420
Year of construction 2015
Dimension ca. [in mm] 2500 x 1500 x 2300
Weight ca. [in kg] 1300
Country of origin Italy
Automatic labeller for the application of self-adhesive vignettes and tamper evident seals. Balcony design. The machine is equipped with:- PLC SIEMENS, Typ S7-300.
- HMI PC SIEMENS IPC 677
- Dopple REAJET printing system, type HRpro with camera control system
- Preparation for Vision System LAETUS WT Commandor
- Carton Transport Belt: pitch 250 mm
- Various control system for label presence with ejection etc.
Output: up to 180 pcs./min.
Format range: Folding box size (A, B, H)A) from 25 to 185 mm
B) from 15 to 85 mm
H) from 68 to 250 mm
A+B <200 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This NERI Marchesini BL A420 is an automatic labelling machine designed for the application of self-adhesive vignettes and tamper-evident seals. Manufactured in 2015 in Italy, the machine features a balcony design with a robust stainless steel construction. Its dimensions are approximately 2500 mm in length, 1500 mm in width, and 2300 mm in height, with a weight of around 1300 kg.
The machine is equipped with a Siemens S7-300 PLC and a Siemens SIMATIC IPC 677 Panel PC touch screen control panel mounted on an adjustable stainless steel arm. The control panel includes an emergency stop button and an attached stylus pen for ease of operation. A signal tower light with red, orange, and green indicators is positioned on top of the machine to provide visual status signals.
Label application is managed through multiple rollers and a label feed system, supported by various sensors and pneumatic actuators. The labelling mechanism includes a carton transport belt with a pitch of 250 mm. Transparent safety doors with safety interlock mechanisms ensure operator protection, and visible safety labels such as "BLISTER KONTROLLE" and "VERNICHTUNG PP & FS" are affixed to the machine.
The machine incorporates a Dopple REAJET HRpro printing system with camera control and is prepared for integration with the Vision System LAETUS WT Commandor. Various control systems are included for label presence detection and ejection.
This labeller can handle a maximum label length of 250 mm and width of 185 mm, with a capacity of up to 10,800 units per hour (approximately 180 pieces per minute). The format range for folding boxes is from 25 to 185 mm (A), 15 to 85 mm (B), and 68 to 250 mm (H), with the sum of A and B dimensions less than 200 mm.
The machine appears clean and well-maintained with no visible damage or wear on moving parts and rollers. Electrical wiring and pneumatic tubing are neatly arranged and connected to sensors and actuators, indicating good upkeep. This unit is suitable for industrial environments requiring reliable automatic labelling with integrated printing and inspection capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2018 |
| Offers online | 202 |
| Last activity | Oct. 27, 2026 |
