| Manufacturer | Muratec |
|---|---|
| Model | MOTORUM 2548 |
| Year | 2008 |
| Location | United Kingdom
|
Muratec MOTORUM 2548 CNC punching machine (manufactured 2008). Key machine dimensions and handling capacities available: overall machine length 5200 mm, width 2500 mm, height 2250 mm, and approximate weight 12000 kg. Sheet handling specifications: maximum sheet width 1250 mm and maximum sheet length 2500 mm without repositioning; with repositioning the maximum sheet length can reach 5000 mm. Maximum recommended sheet thickness is 6.35 mm and the maximum workpiece weight is 150 kg.

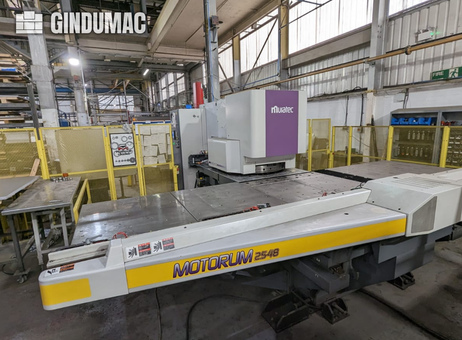

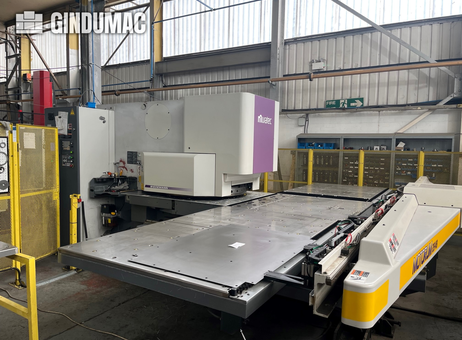

The unit is a CNC punching platform and is fitted with standard machine housings and control interfaces. The machine bears MOTORUM 2548 identification on the front guard and is finished with a purple Muratec side panel. An electrical/control cabinet is mounted on the left side and carries warning labeling. A front bed area with a metal work surface and bolted plate is present. A safety railing/fencing is installed around the machine cell.

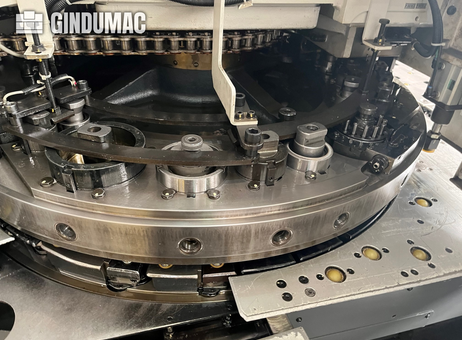

Turret and tooling area details visible include a rotary turret/indexing assembly with a circular indexing surface and a rotating platform that has multiple clamp fittings; chain-like elements and circular guides are present around the rotating assembly. A white curved bracket spans over the turret area and a black metal frame surrounds the rotating components.
Prospective buyers should verify tooling configuration, turret station count, punch tooling type, control system specifications, full electrical and pneumatic requirements, and operational condition directly with the seller or during an inspection. No statements are made here about operational testing, refurbishment status, or warranty. All numeric capacities and dimensions in this description are taken from the provided machine data.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC punch press manufactured in 2008. This Muratec Motorum 2548 features a punching force of 25 t and a maximum sheet thickness of 6.35 mm. It offers an impressive X-axis travel of 2550 mm and Y-axis travel of 1600 mm, accommodating sheets up to 1250 x 5000 mm with repositioning. If you are looking to get high-quality punching capabilities, consider the Muratec Motorum 2548 machine we have for sale. Contact us for further details.Maximum sheet size without repositioning: 1250 x 2500 mm
Maximum sheet size with one reposition: 1250 x 5000 mm
Throat depth: 1340 mm
Feed clearance: 25 mm
Maximum sheet weight: 150 kg
Hit rate at 25 mm pitch: X 400 hpm / Y 300 hpm
Hit rate at 1 mm pitch: X 800 hpm / Y 700 hpm
Simultaneous axis speed: 125 m/min
Punching accuracy: ±0.1 mm
Turret index speed: 40 rpm
Index tool speed: 180 rpm
Compressed air requirement: 100 NL/min
Compressed air pressure: 0.5 MPa
Power supply: 23 kVA
Turret / Tooling:
Turret: 44 stations
Index stations: 3 x F A/I
Multi-tool: 1 x M/T, 12 stations
Tooling type: Wiedemann tooling
Optional turret configuration (catalogue): 44 stations / 4 index
Machine Height: 2250 mm
Machine Length: 5200 mm
Machine Weight: 12000 kg
Machine Width: 2500 mm
Max. Sheet Thickness: 6.35 mm
Punching Force: 245 Kn
X-axis Travel: 2550 mm
Y-axis Travel: 1600 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
