Contact us to receive an offer.
| Manufacturer | Multivac |
|---|---|
| Model | R140 |
| Year | 2005 |
| Location | Norway
|
The Multivac R140 is a thermoforming machine designed for use with semi-rigid films, manufactured in 2005. It features a stainless steel body and an integrated conveyor system, ensuring durability and efficient handling of packaging materials. The machine is compatible with film widths of 357 mm, accommodating a lower film thickness of up to 400 microns and an upper film thickness of 60 microns. It operates with a stroke length of 240 mm and supports a format of 3 x 1.
This thermoformer produces packages with outer dimensions of 240 x 105 mm and inner dimensions of 221 x 90 mm, offering multiple package depth options including 5, 10, 30, 45, and 50 mm. The machine can achieve a production capacity of 6 to 8 cycles per minute, making it suitable for moderate volume packaging operations.

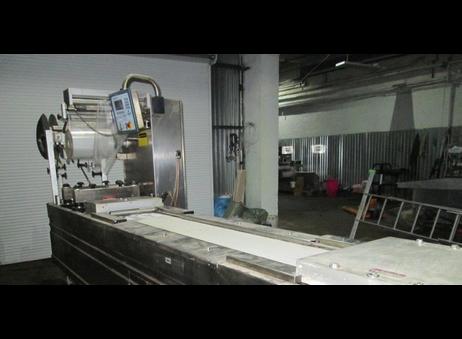

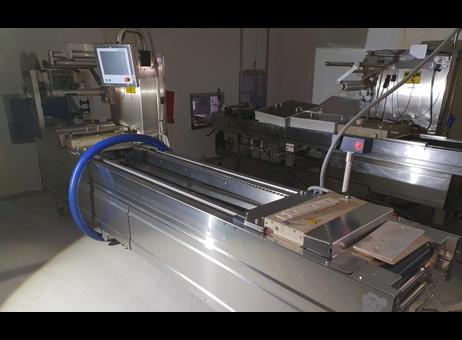

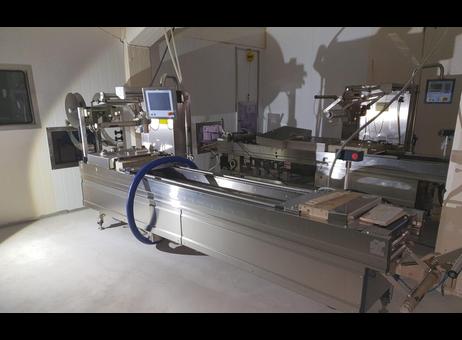

The control interface includes a touchscreen panel mounted on the machine, providing user-friendly operation and control. The machine is equipped with rolls of film or packaging material mounted on the left side, facilitating continuous feeding during production. A blue flexible hose is attached to the machine, likely part of the pneumatic or vacuum system.

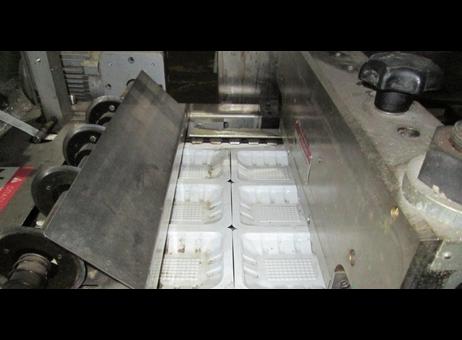

The conveyor system includes white forming trays, which are visible in close-up views. While the machine appears clean and well-maintained overall, some minor dirt or residue is present inside the forming trays, which may require routine cleaning.
In terms of dimensions, the machine measures approximately 3500 mm in length, 1050 mm in width, and 1940 mm in height. It operates on electrical requirements of 50 Hz and 400 V. This Multivac R140 thermoformer represents a reliable solution for packaging applications requiring semi-rigid films with precise format and depth options.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Multivac R140 thermoformer
Year of manufacture: 2005 Condition: Recently serviced
Compatible with semi-rigid film.
Film width: 357 mm Lower film thickness: 400 microns Upper film thickness: 60 microns Stroke: 240 mm
Format: 3 x 1 Outer package dimensions: 240 x 105 mm Inner package dimensions: 221 x 90 mm Package depth options: 5, 10, 30, 45, 50 mm
Capacity: 6-8 cycles per minute Dimensions: 3.5 x 1.05 x 1.94 meters Electrical requirements: 50 Hz, 400 V
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2025 |
| Offers online | 26 |
| Last activity | Oct. 27, 2026 |
Multivac R140 thermoformer
Year of manufacture: 2005 Condition: Recently serviced
Compatible with semi-rigid film.
Film width: 357 mm Lower film thickness: 400 microns Upper film thickness: 60 microns Stroke: 240 mm
Format: 3 x 1 Outer package dimensions: 240 x 105 mm Inner package dimensions: 221 x 90 mm Package depth options: 5, 10, 30, 45, 50 mm
Capacity: 6-8 cycles per minute Dimensions: 3.5 x 1.05 x 1.94 meters Electrical requirements: 50 Hz, 400 V
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Multivac R140 is a thermoforming machine designed for use with semi-rigid films, manufactured in 2005. It features a stainless steel body and an integrated conveyor system, ensuring durability and efficient handling of packaging materials. The machine is compatible with film widths of 357 mm, accommodating a lower film thickness of up to 400 microns and an upper film thickness of 60 microns. It operates with a stroke length of 240 mm and supports a format of 3 x 1.
This thermoformer produces packages with outer dimensions of 240 x 105 mm and inner dimensions of 221 x 90 mm, offering multiple package depth options including 5, 10, 30, 45, and 50 mm. The machine can achieve a production capacity of 6 to 8 cycles per minute, making it suitable for moderate volume packaging operations.
The control interface includes a touchscreen panel mounted on the machine, providing user-friendly operation and control. The machine is equipped with rolls of film or packaging material mounted on the left side, facilitating continuous feeding during production. A blue flexible hose is attached to the machine, likely part of the pneumatic or vacuum system.
The conveyor system includes white forming trays, which are visible in close-up views. While the machine appears clean and well-maintained overall, some minor dirt or residue is present inside the forming trays, which may require routine cleaning.
In terms of dimensions, the machine measures approximately 3500 mm in length, 1050 mm in width, and 1940 mm in height. It operates on electrical requirements of 50 Hz and 400 V. This Multivac R140 thermoformer represents a reliable solution for packaging applications requiring semi-rigid films with precise format and depth options.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2025 |
| Offers online | 26 |
| Last activity | Oct. 27, 2026 |
