| Manufacturer | MORI SEIKI |
|---|---|
| Model | NZ-2000/T2/Y2 |
| Year | 2008 |
| Location | Italy
|

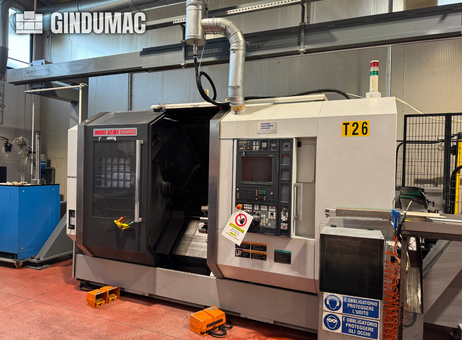

This 8-axis MORI SEIKI NZ-2000/T2/Y2 was manufactured in 2008. It features a twin-spindle design with a maximum Z-axis travel of 810 mm and X-axis travel of 210 mm. The machine is equipped with two turrets, each with 16 stations, suitable for complex multi-process turning and milling operations. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NZ-2000/T2/Y2 turn-mill centre we have for sale. Contact us for further details.Control/NC
Control unit: MORI SEIKI MSX-701
NC system: FANUC FS-31iA (MAPPS 3); MAPPS version: 3
Software/features: Load monitor; Tool life management; Number of stored programs: 250; User memory: 50 MB; Tool offset pairs: 99; Custom macro variables: 600
Languages: NC and MAPPS screens in Italian
Electricals/destination
Voltage: 380–480 V; Frequency: 50 Hz; Destination: Europe
Machine configuration
Bed length: 800 mm
C-axis on both spindles
2 turrets with X-Y-Z axes
Both turrets originally equipped with live tooling
Lower turret live tooling currently NOT working (turning functions OK)
Suitable for complex multi-process turning and milling
Spindles
Main spindle (Spindle 1)
Through-hole diameter: 73 mm
Chuck type: Hollow chuck 8"; Chuck through-hole: 65 mm; Chuck manufacturer: KITAGAWA
C-axis: Included; Spindle orientation: Included (without lock); C-axis brake: Included
Sub spindle (Spindle 2)
Power: 25/22 kW; Speed: 5,000 rpm
Through-hole diameter: 73 mm
Chuck type: Hollow chuck 8"; Chuck through-hole: 65 mm; Chuck manufacturer: KITAGAWA
C-axis: Included; Spindle orientation: Included (without lock); C-axis brake: Included
Axis travels
B: 810 mm
Max. distance between spindle noses: 1,130 mm
Turrets
Turret 1: Axes X-Y-Z; 16 stations; Milling function included; Rotary tool speed: 6,000 rpm; Tool mounting: By bolts
Turret 2: Axes X-Y-Z; 16 stations; Milling function present but NOT working; Rotary tool speed: 6,000 rpm; Tool mounting: By bolts
Backward tool max lengths: 155 mm (upper turret), 100 mm (lower turret)
Tool presetting
Spindle 1 in-machine tool presetter: Manual (detachable)
Spindle 2 in-machine tool presetter: Manual (detachable)
Coolant/chip (machine-integrated)
High-pressure coolant system: 635 W / 1040 W
Coolant type: Water-soluble
Through-spindle air blow: Included
Chip disposal direction: Right
Interfaces
Bar feeder interface: Included (Multiple-bar feeder specification; LNS)
Robot interface: Included
Languages/documentation
Manuals: Italian
Documentation: Installation, Operation, Maintenance manuals; Declaration of Conformity; CE Certificate
Important note
Lower turret motorized tooling function faulty on both machines. T2 turret currently usable only for turning operations.
Additional equipment
Automation/handling
RR Robotica loading portal (included)
Loading pallets (included)
Work loader (Spindle 2 side)
Workpiece ejector
Work unloading conveyor
Part receiver
Custom upper door hatch for portal loading/unloading (non-original)
Chip/coolant peripherals
Drag-type chip conveyor
Coolant tank with washing pumps
Additional non-original 20 bar high-pressure pump
Workholding and tooling
Main spindle and sub spindle chucks included (KITAGAWA 8" hollow)
Fixed tool holders: 8 total (4 upper + 4 lower)
Driven tool holders: 2 axial, 2 radial
Electrical/other
External machine transformer
Signal light tower: 3-tier (red / milky white / green)
Twin chuck footswitch
Counter Spindle: yes
Driven Tools: yes
Number of Axes: 8
Spindle Power: 25 kW
Spindle Speed: 5000 RPM
X-axis Travel: 210 mm
Y-axis Travel: 100 mm
Z-axis Travel: 810 mm
