| Manufacturer | MORI SEIKI |
|---|---|
| Model | NL-1500SY/500 |
| Year | 2006 |
| Location | Italy
|

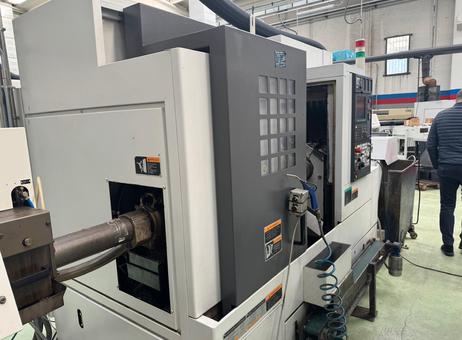

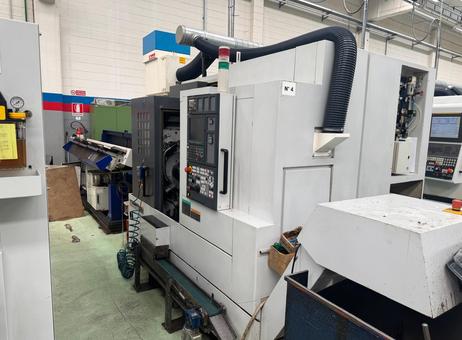

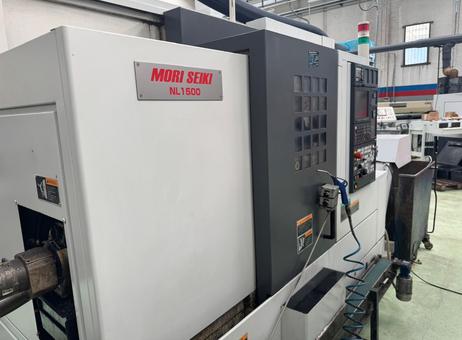

This CNC lathe is equipped with a Mori Seiki MSX-850III control system, providing precise and versatile machining capabilities. It features a maximum swing over the bench of 579.8 mm, which extends up to 923.8 mm without interference from the front cover, and a maximum swing over the carriage of 579.8 mm (up to 755 mm without front cover interference). The lathe allows a maximum turning diameter of 356 mm and a maximum turning length of 515 mm. It supports bar diameters up to 52 mm through the spindle.
The machine offers substantial axis travels, including 260 mm on the X axis, +/- 50 mm (total 100 mm) on the Y axis, and 590 mm on the Z axis. Additional rotational and angular movements include a B axis travel of 624 mm and a C axis rotation of +/- 360°, with a minimum controlled angle of 0.001° for precise indexing.
The spindle and sub-spindle both reach speeds up to 6,000 RPM, with motor power ratings of 7.5/11 kW for continuous 30-minute operation. The spindle nose size is ASA-A2-5. The turret features 12 positions equipped with live tools capable of speeds up to 6,000 RPM and motor power of 3.7/5.5 kW. Turning and boring tool dimensions are 20x20 mm or up to 40 mm diameter.
Feed rates are high, with 30,000 mm/min for the X, Z, and B axes, 10,000 mm/min for the Y axis, and 400 RPM for the C axis.
Included accessories enhance productivity and automation, such as an IEMCA bar feeder, chip conveyor, and a coolant tank with a 250-liter capacity and pumps. The machine also comes with four live-tool holders (two radial and two axial), various fixed tool holders, an automatic tool presetting arm, and a piece unloading arm. Documentation includes manuals, electrical diagrams, and a CE/EU Declaration.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC Lathes

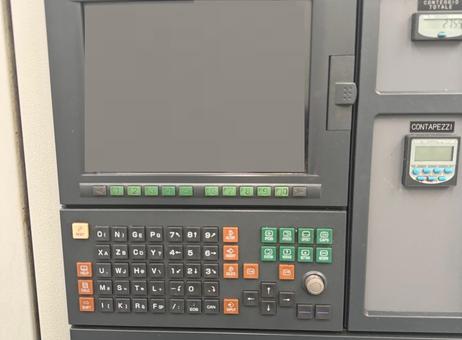

Cnc Control: Mori Seiki MSX-850III
Max Swing Over The Bench: Ø 579,8 mm ( Ø 923,8 mm senza interferenza carter frontale)
Max Swing Over The Carriage: Ø 579,8 mm ( Ø 755 mm senza interferenza carter frontale)
Max Turning Diameter: Ø 356 mm
Max Turning Lenght: 515 mm
Bar Diameter Capacity Through The Spindle: Ø 52 mm
X Axis Travel: 260 mm
Y Axis Travel: +/- 50 mm (100 mm)
Z Axis Travel: 590 mm
B Axis Travel: 624 mm
C Axis Rotation: +/- 360°
Spindle Speed: 6.000 Rpm
Spindle Nose Size: ASA-A2-5
C Axis Minimum Controlled Angle: 0.001°
Spindle Motor Power Cont 30 Min: 7,5/11 kW
Sub Spindle Speed: 6.000 Rpm
Sub Spindle Nose: ASA-A2-5
Minimum C Axis Indexing Angle: 0.001°
Sub Spindle Motor Power Cont 30 Min: 7,5/11 kW
Turret Positions: 12 with live-tools
Live Tools Speed: 6.000 RPM
Live Tools Motor Power Cont 30 Min: 3,7/5,5 kW
Turning Boring Tool Dimensions: 20x20 mm / Ø 40 mm
X Z B Axes Feedrate: 30.000 mm/min
Y Axis Feedrate: 10.000 mm/min
C Axis Feedrate: 400 RPM

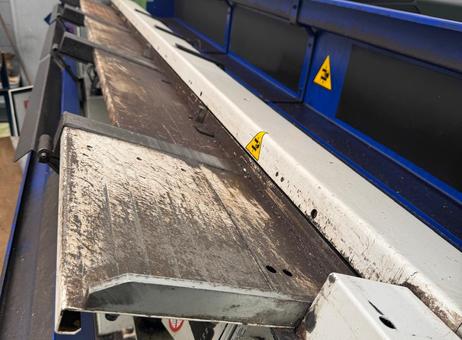

Accessories: Bar feeder make IEMCA, Chip conveyor, Coolant tank capacity 250 liters with pumps, Nr. 4 Live-Tool holders (2 radial – 2 axial), Various fix tool holders, Automatic Tool presetting arm, Piece unloading arm, Manuals, electrical diagrams and CE/EU Declaration
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
