Contact us to receive an offer.
| Manufacturer | MORI SEIKI |
|---|---|
| Model | NHX 4000 |
| Year | 2017 |
| Location | Germany
|

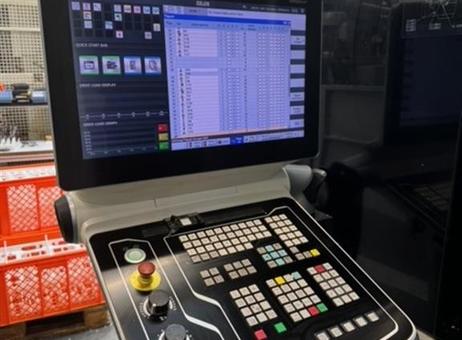

This is a MORI SEIKI NHX 4000 horizontal machining center, manufactured in 2017. It features a robust working envelope with X, Y, and Z travels of 560 mm, 560 mm, and 660 mm respectively, allowing for versatile machining capabilities. The machine is equipped with a Celos Siemens 840D SL Operate ERGOline Multitouch control system, providing advanced and user-friendly programming and operation.

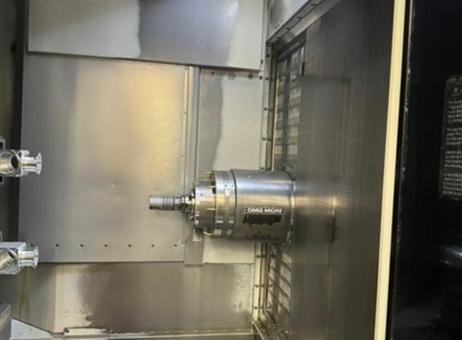

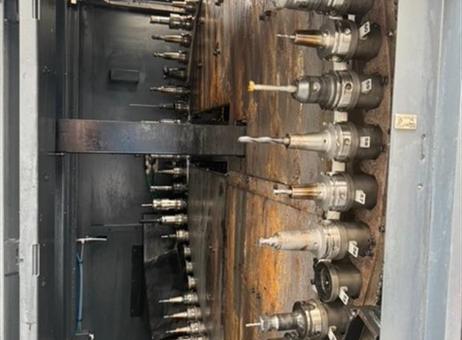

The spindle offers turning speeds ranging from 20 to 20,000 rpm, powered by a spindle drive rated at 25/35 kW with a maximum torque of 86/130 Nm. It utilizes an HSK-A63 tool taper, supporting up to 60 tool stations. The maximum tool diameter is 70 mm, with a larger diameter of 170 mm possible if no neighboring tools are present. Tool length capacity reaches up to 450 mm, and tool weight is limited to 12 kg.

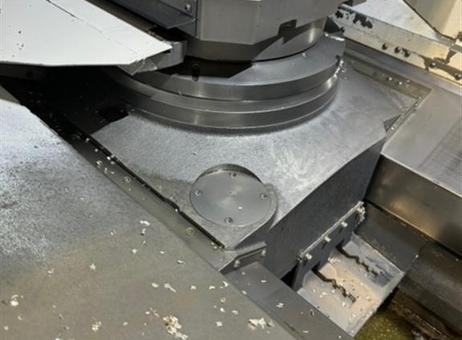

This machining center includes two pallets, each measuring 400 x 400 mm, supporting a maximum table load of 400 kg. The B-axis is fully integrated, offering 360° rotation with 0.001° resolution. It can accommodate workpieces up to 630 mm in diameter and 900 mm in height.

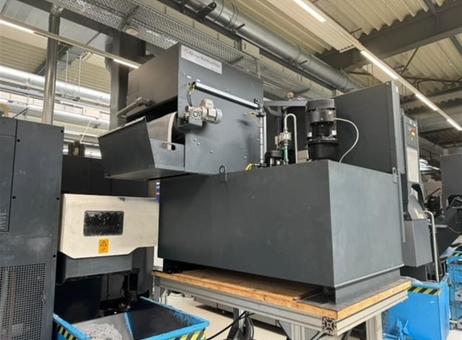

Rapid travel speeds and feed rates for the X, Y, and Z axes reach up to 60 m/min. The machine is equipped with a chip conveyor and an internal coolant system capable of 70 bar pressure. Additional features include a Rotoclear window for enhanced visibility, a 4-color signal lamp for operational status, an electronic handwheel for manual control, and a coolant shower.
There is a probe system for tool breakage and length measurement, and the machine is prepared for a Renishaw spindle probe. It also includes an HSK cone cleaning station with brushes.

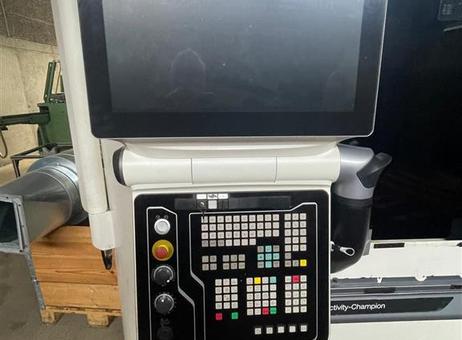

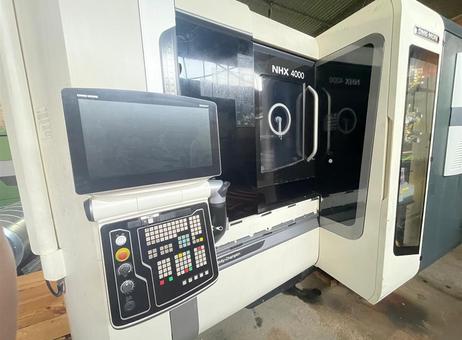

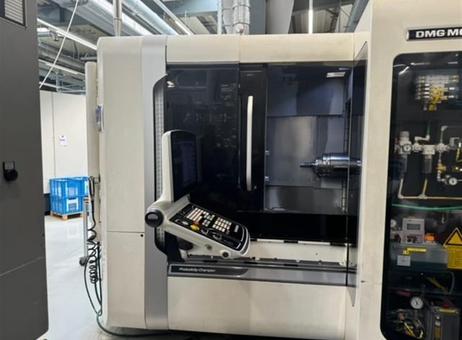

The machine weighs approximately 8.5 tons and measures 3200 x 4800 x 2900 mm. The exterior shows some signs of use but appears to be in good condition. The control panel includes multiple buttons, emergency stop, and rotary knobs. A large windowed door provides access to the machining area.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
x-travel 560 mm
y-travel 560 mm
z-travel 660 mm
control Celos Siemens 840D SL Operate ERGOline Multitouch
turning speeds 20 - 20.000 1/min
spindle drive 25/ 35 kW
max. torque on the spindle 86 / 130
tool taper HSK-A63
Number of tool station 60
diameter of tools max. 70 mm
Tool diameter with no neighbouring tools 170 mm
tool length - max. 450 mm
weight of tools max. 12 kg
numbers of pallets 2
Pallet dimension 400 x 400 mm
B-axis fully integrated 360.000 x 0,001°
max. workpiece diameter 630 mm
workpiece height max. 900 mm
table load 400 kg
rapid travel x/y/z 60 m/min
Feed x/y/z 60 m/min
chip conveyor
internal coolant system feed 70 bar
total power requirement kVA
weight of the machine ca. 8,5 t
dimensions 3200 x 4800 x 2900 mm
Rotoclear window
Signal lamp 4 colours
Electronic handwheel
Probe for tool breakage and length measuring
Coolant shower
Renishaw probe (spindle) Vorbereitung / preparation only
HSK cone cleaning station with brushes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
