| Manufacturer | Mori Seiki |
|---|---|
| Model | NH-5000 DCG/40 |
| Year | 2010 |
| Location | Italy
|

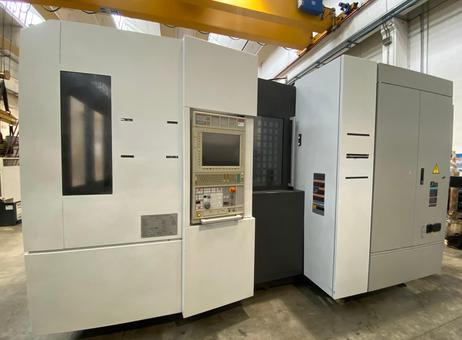

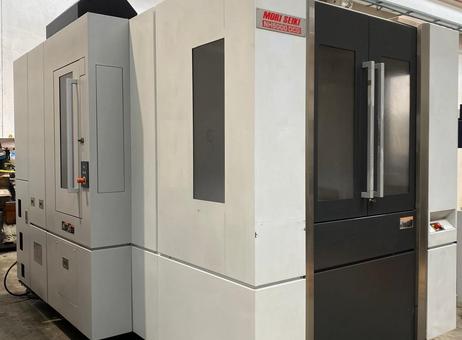

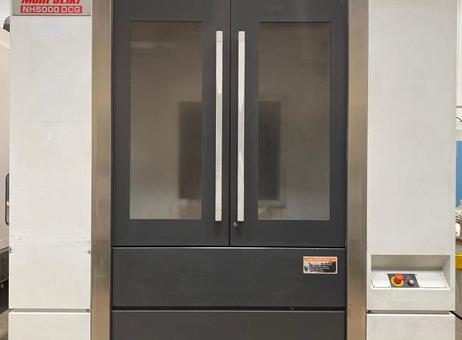

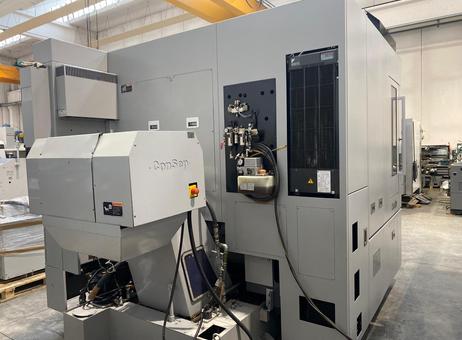

This listing features a Mori Seiki NH-5000 DCG/40 horizontal machining center, manufactured in 2010. It is a large industrial machine designed for precision machining with a robust enclosed structure and two large front doors equipped with windows, providing easy access and visibility to the machining area. The exterior shows minor signs of wear and some dirt marks consistent with typical industrial use, but overall the machine is in good condition. The doors are intact with some minor surface marks, and emergency stop buttons are located on both the left and right side panels for safety.

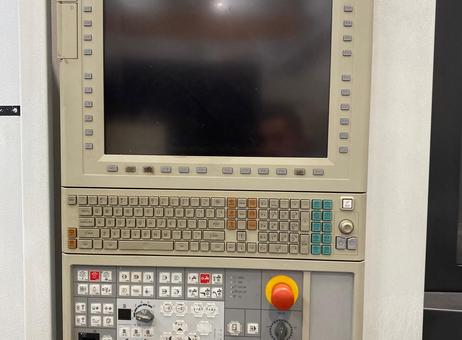

The machining center is equipped with a Mori Seiki MSX-711 IV CNC control system, featuring a large display screen and multiple control buttons and switches. The control panel shows some signs of use but appears functional. The machine dimensions are approximately 4628 mm in length, 4952 mm in width, and 3012 mm in height.
Key machining specifications include X, Y, and Z axis travels of 730 mm, 730 mm, and 850 mm respectively. The worktable measures 500 mm by 500 mm and can support a maximum load of 500 kg. The spindle has an ISO 40 taper with a maximum speed of 14,000 rpm and a spindle motor power rating of 18.5 kW (30-minute continuous) / 22 kW. The machine is capable of handling workpieces up to a maximum diameter of 800 mm and a height of 1,000 mm.
The tool magazine holds up to 60 stations with a maximum tool diameter of 140 mm (70 mm for certain tools), maximum tool length of 500 mm, and maximum tool weight of 12 kg. The machine features continuous table rotation with 360,000 positions and includes two pallet stations for efficient workpiece management.

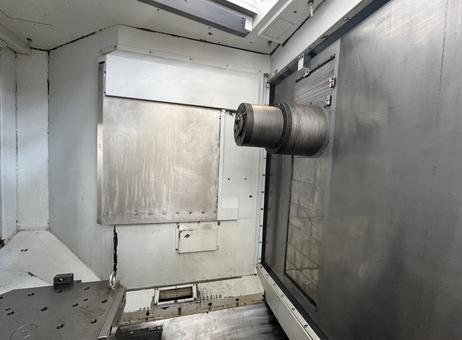

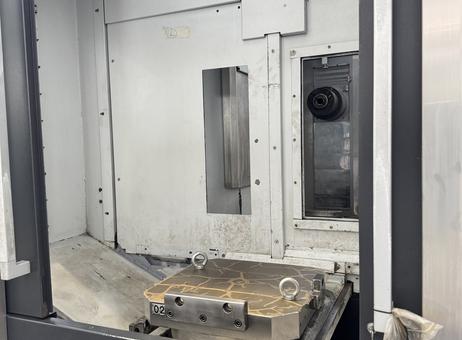

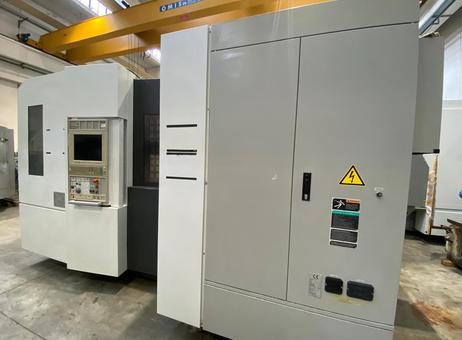

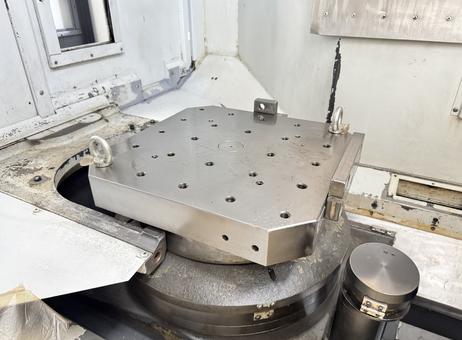

Additional accessories include a coolant collection tank with a high-pressure pump and paper filter, a chip conveyor, spindle line air conditioner, transformer, manuals, electrical diagrams, and CE Declaration. The machine weighs approximately 12,700 kg. The interior machining area and worktable show minor scratches and wear consistent with use but no visible damage. The electrical cabinet has high voltage warning labels for safety.
This horizontal machining center is suitable for demanding machining tasks requiring precision and flexibility, supported by its robust construction and comprehensive tooling and control features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Horizontal Machining Centers
CNC Control: MORI SEIKI MSX-711 IV
Spindle Taper: ISO 40
Spindle Speed: 14,000 rpm
Spindle Motor Power (30 min continuous): 18.5 / 22 kW
X-Axis: 730 mm
Y-Axis: 730 mm
Z-Axis: 850 mm
Distance from Spindle Center to Pallet Surface: 100 ÷ 830 mm
Distance from Spindle Nose to Pallet Center: 100 ÷ 950 mm
Max. Workpiece Dimensions (Diameter x Height): Ø800 x 1,000 mm
Table Dimensions: 500 x 500 mm
Table Load Capacity: 500 kg
Machine Dimensions: 4,628 mm x 4,952 mm x 3,012 mm
Continuous Table Rotation: 360,000 positions
Number of Pallet Stations: 2
Rapid Feed Rates (X, Y, Z Axes): 50,000 mm/min
Maximum Working Feed Rates (X, Y, Z Axes) in Linear Interpolation: 1 to 50,000 mm/min
Tool Shank Type: MAS BT-40
Tool Shank Type: 90° Mori Seiki
Tool Magazine Capacity: 60 stations
Maximum Tool Diameter: Ø140 / Ø70 mm
Maximum Tool Length: 500 mm
Max. Tool Weight: 12 kg
Accessories and Other: Coolant collection tank with high-pressure pump + Paper filter - Chip conveyor - Spindle line air conditioner - Transformer - Manuals - Electrical diagrams - CE Declaration
Machine Weight: 12,700 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
