| Manufacturer | MONFORTS |
|---|---|
| Model | KNC 5 - 1000 / EuroTurn |
| Year | 2003 |
| Location | Germany
|
MONFORTS KNC 5 - 1000 / EuroTurn CNC lathe, manufactured in 2003 and equipped with EuroTurn control. The machine has a stated turning length of 1,080 mm and a distance between centers of 1,000 mm. Maximum turning diameter and swing over the bed are 500 mm; swing over the cross slide is 290 mm. The spindle bore is 70 mm, and the stated turning speed range is 2–2,800 rpm. Spindle motor power is 11 kW.
The machine is equipped with a SCHUNK 3-jaw wedge-bar chuck, a PARAT quick-change tool post, a coolant system and a machine light. The listed chuck diameter is 250 mm, and the tool post is size 2. Additional specifications include a KK 8 DIN 55027 spindle nose, 360 mm bed width, MK 5 tailstock quill taper, 80 mm quill diameter and 160 mm quill travel. Listed rapid traverse rates are 10 m/min longitudinally and 5 m/min for facing. Operating voltage is 400 V, with a stated total power requirement of 16.0 kVA.

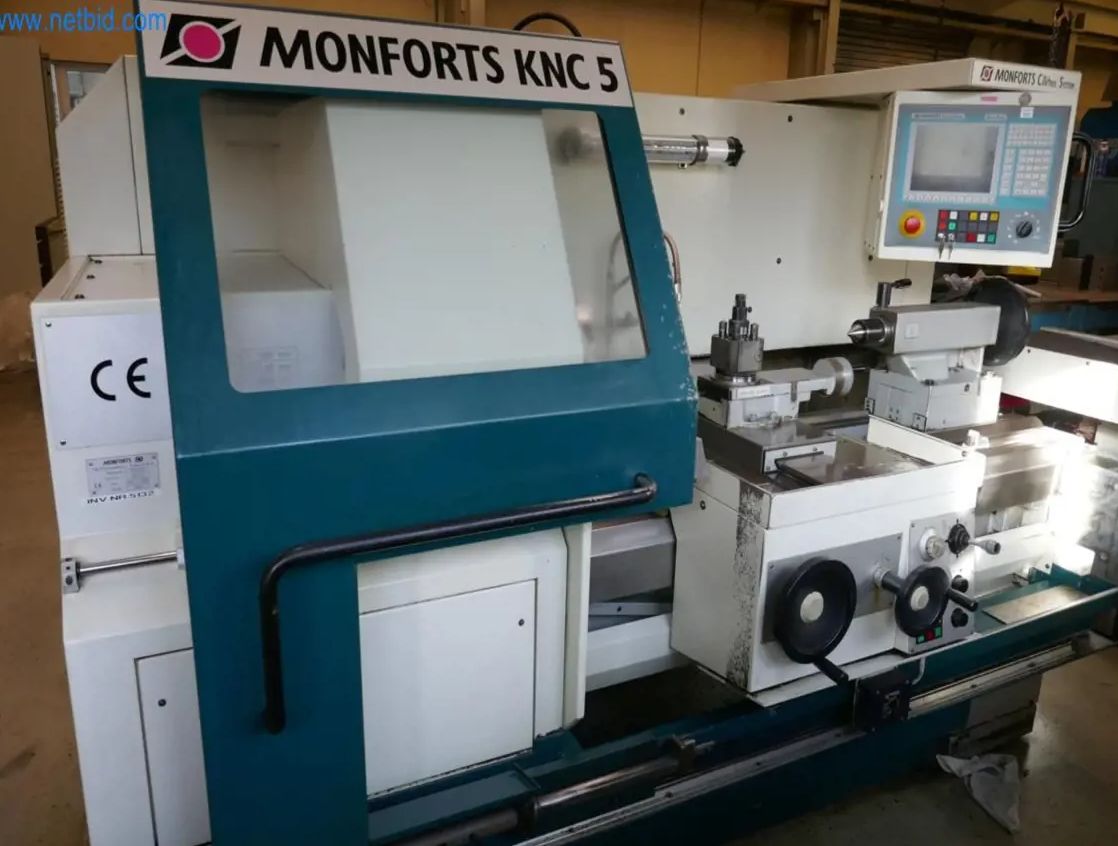

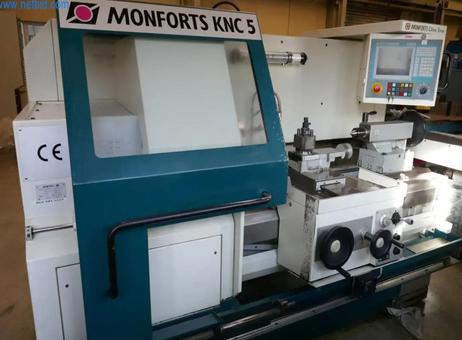

A control panel with screen, keypad and buttons is mounted above the right side of the machine. The work area includes a tool turret, tailstock and handwheels. Visible dark grime and scuffing are present on the carriage and bed area; the machine appears assembled. Overall dimensions are 2,850 × 1,600 × 1,800 mm, and the stated weight is 3,000 kg.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
- Machine No.: 495 / 03
- Control: EuroTurn
- SCHUNK 3-jaw wedge-bar chuck
- PARAT quick-change tool post
- Coolant system
- Machine light
Center height 255 mm
Distance between centers 1.080 mm
Swing over bed 500 mm
Swing over cross slide 290 mm
Turning length 1.000 mm
Control EuroTurn
Spindle nose KK 8 DIN 55027
Spindle bore 70 mm
3-jaw chuck, diameter 250 mm
Bed width 360 mm
Speed range 2 - 2.800 rpm
Rapid traverse - longitudinal/facing 10 / 5 m/min
PARAT quick-change tool post, size 2
Drive power - spindle motor 11,0 kW
Tailstock quill taper MK 5
Quill diameter 80 mm
Quill travel 160 mm
Coolant system
Operating voltage 400 V
Total power requirement 16,0 kVA
Machine weight approx. 3,0 t
Space required approx. 2,85 x 1,60 x 1,80 m
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
