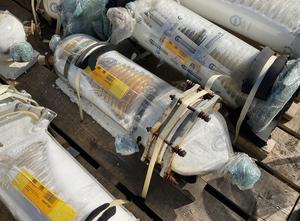

QVF Glasstechnik Glass spiral 1,5m² - Shell and tube heat exchanger

Netherlands

Max Temperature	200 °C

Price on request

View product

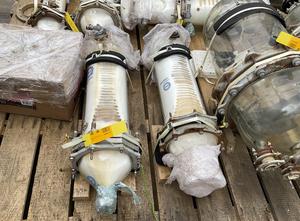

QVF Glasstechnik spiral - Shell and tube heat exchanger

Netherlands

Max Temperature	120 °C

Price on request

View product

Barriquand DIJS 1x6/1x7x290x2250 - 7,8 m² - Plate heat exchanger

Netherlands

Max Temperature	200 °C

Price on request

View product

OFFICINE VARISCO OV 600/UA

Italy 2000

Diathermic oil steam production plant Type OV 600/UA Capacity 3000 litres Technical sheet in announcement

6,500 €

View product

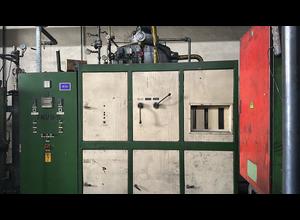

Endogas Generator Ipsen

Turkey 1993

Max Temperature	1050 °C

12,000 € Price is negotiable

View product

Alfa Laval air max Low working hours

Italy 2001

Stock of N ° 8 air coolers of various sizes, see photo, cooled with glycol. Composed of 2 Evaporators 5 fans N ° 2 evaporators 4 fans N ° 2 evaporators 3 fans N ° 2 evaporators 2 vemtole

Price on request

View product

QVF Glasstechnik Glass spiral 5m² - Shell and tube heat exchanger

Netherlands

General SKU: 366W1230 Location: Barneveld Main Features Shell (Material): glass Tube (Material): glass Surface: 5 m2 Specified Features - Shell and tube heat exchanger Heat exchanger: ✓ Vertical: ✓ Heating surface: 2x 2,5m² Shell diameter: 400 mm Shell length: 2200 mm Shell connections: ✓ Cover connections: ✓ Material: Borosilicate Glass 3.3 General Make: QVF Glasstechnik Type: HEU9/A Mounted on frame: ✓ Floorspace: 0,40x0,40 m Total height: 2,20 m Extra information Extra Specifications: Double spiral heat exchanger mounted together, 2x 2,5 m²

Price on request

View product

QVF Glasstechnik Glass spiral - Shell and tube heat exchanger

Netherlands

General SKU: 366W1221 Location: Barneveld Main Features Shell (Material): glass Tube (Material): glass Specified Features - Shell and tube heat exchanger Heat exchanger: ✓ Vertical: ✓ Shell diameter: 230 mm Shell length: 1200 mm Shell connections: ✓ Cover connections: ✓ Material: Borosilicate Glass 3.3 General Make: QVF Glasstechnik No.: B2.23 Floorspace: 0,40x0,40 m Total height: 1,4 m

Price on request

View product

Alfa Laval CONTHERM 6X3 - Scraped surface heat exchanger

Netherlands

General SKU: 034G143 Make: Alfa Laval Type: Contherm 6x3 No.: HC-4844 NCC + HC-1802 NCC Year of construction: 1992 / 1982 Mounted on frame: ✓ Material Product contact material: Stainless steel 1.4301 (304) Pressure Working pressure: 20 Bar Working pressure jacket: 17.2 Bar Main Features Material: Stainless steel Motor: 15 KW Surface: 0.6 m2 Specified Features - Scraped surface heat exchanger Scraped surface heat exchanger: (1x) Heating surface: 0,279 m2 each With jacket: ✓ Rotor can be cooled/heated: ✓ Motor: 2x 7,5 kW (400 V, 1450 rpm) Speed: 177 rpm Material: Stainless steel 1.4301 (304) With jacket: ✓ General Location: Barneveld With switch: ✓ Floorspace: 1,3 x 1,0 m Total height: 2,0 m Weight: 650 kg Extra information Extra Specifications: working pressure 20 bar (300 PSI) / 31 bar (450 PSI) jacket working pressure 15,5 to 17,2 bar Material: Stainless steel

Price on request

View product

Sell your machines to buyers worldwide

Join 10,000+ companies already selling with us

Reach 500,000+ monthly visitors

Sell faster at a great price

No hidden fees, it's free

Sell your machine

or contact us

6-axis cleanLASER Clean CELL 3220 CL600 Automated Robotic Laser Cleaning Cell

Germany 2019

Heating power	0.6 kW

Price on request

View product

Scraped Surface Heat Exchanger (SSHE) - Tanis Food Tec (TFT) RotoTemp 1,5

Germany 2010

MISCELLANEOUS EQUIPMENT The ROTOTEMP 1,5 is a scraped surface heat exchanger for cooling or heating various products, with a heat exchange surface of 1,5 m2. The heat exchanger consists of a jacketed outside cylinder and a jacketed internal cylinder. The outside jacket is insulated and finished with stainless steel sheeting. The product space is located between the two cylinders. A rotating cage with scrapers is fitted in the product space. The scrapers ensure proper mixing during the tempering process. Because the cylinders are scraped continuously, it is possible to cool crystallizing products without a product layer building on the walls. It is also possible to heat products without the danger of sticking to the walls. Thanks to these characteristics and the design of the installation, it is also possible to accurately perform heat exchange processes for products with high viscosity. Technical specifications - Drive: 3 kW geared motor. - Speed: 18 rpm at 50 Hz. - Material cylinder: stainless steel, with hardened surface. - Number of scrapers: 12. - Max. product pressure: 8 bar. - Product inlet connection: NW40 / 1½" female. - Product outlet connection: NW40 / 1½" female. - Temperature sensors: 1 sensor on inlet and 1 sensor …

Price on request

View product

5L Electroplating production line – filtering, mechanical agitation and heating options

United Kingdom 2023

Basic information: Brand name Technical Supermarket Model NO 8T/40A Origin United Kingdom Application Surface Treatment Equipment Type Manual Electroplating Zinc/Copper /Nickel/Tin/Chrome/Sliver/Gold, etc. Auxiliary Equipment Rectifier, Filtering, Mechanical agitation and Heating options Types of Works Electroplating, Electroforming, Electro-cleaning, Electro-polishing, Stripping, Etching, etc. Material of Tank Welded Polypropylene Warranty 1 year Packaging Details Solid wooden boxes/pallets

14,500 €

View product

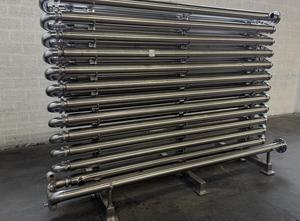

“GNC Verfahrenstechnik” Pipe heat exchangers Type DRW 80/125 + Eccentric worm pump "Netsch" Type Nemo

Belgium

“GNC Verfahrenstechnik” Pipe heat exchangers Type DRW 80/125 Double-walled pipes Suitable for cooling and/or heating Inlet DN 125 Outlet DN 80 Heat exchanger dimensions: ± 3,400 x 1,300 x 2,400 mm Eccentric worm pump "Netsch" Type Nemo Pump dimensions: ± 3,000 x 600 x 600 mm Netzsch Stator: 140166831 D10FLO/2021 1460/235 rpm Stainless steel pump housing with feed screw and bearing housing (hygiene version) 15 kW, SEW motor 2NE80155431 On stainless steel frame + Netzsch pump NEMO NMNE 80-2 : 00/1 138213 Inlet connection: ± 550 mm, DN 125 Outlet connection: ± 400 mm, DN80

Price on request

View product

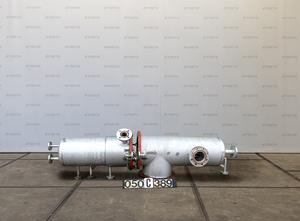

1,5m² - Shell and tube heat exchanger

Netherlands

General SKU: 050C389 Make: unknown, manufacturer tag is missing Location: Barneveld Material Shell material: Stainless steel 1.4401 (316) Tube material: Stainless steel Main Features Shell (Material): Stainless steel Tube (Material): Stainless steel Surface: 1.5 m2 Specified Features - Shell and tube heat exchanger Heat exchanger: (1x) Heating surface: ± 1,5 m2 Number of tubes:: 25 Tube diameter: 24mm Tube length: ± 900mm General Floorspace: 2,2x0,7 M Weight: 240

Price on request

View product

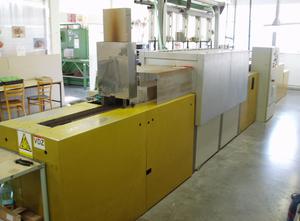

SOLO Furnace

Czech Republic

Max Temperature	1000 °C

Price on request

View product

Baron MVA Low working hours

Italy 2001

The MWA 4x900 unit consists of four FRASCOLD R-THS twin screw compressors, VXT cooling tower.

Price on request

View product

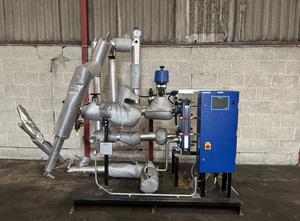

Spirax Sarco PHS Easiheat Heat exchanger system

United Kingdom 2017

Spirax Sarco PHS Easiheat Heat exchanger system 2017, Pre assembled skid mounted packaged heat exchanger system, touch screen control, with Alfa Laval heat exchanger, see plates for all spec

Price on request

View product

Sand blasting equipment eVirgo

Czech Republic

Catalog No. : 8745 Type: - Producer: eVirgo Made in: 2020 Characteristic: Chamber dimensions: 1200 × 900 × 700 mm Overall dimensions: 1300 × 960 × 1800 mm Dust collector size: 420 × 410 × 1110 mm Cabin volume: 700 l Cabin volume with sand tank: 900 l Side door size: 230 × 240 mm Maximum pressure: 8.5 bar Operating pressure: 3.4–5.5 bar Air consumption: min. 400 l/min Glove length: 600 mm Glove diameter: 160 mm Tank capacity: 18 kg Power supply: 230 V 50 Hz Dust extraction power: 1200 W Lighting: 50 W (230 V) LED IP67 5000 lm -40 °C to 55 °C Noise level: 80 dB Accessories 5 pcs ceramic nozzles (3 × 6 mm 2 × 7 mm) 1 pc sandblasting gun (industrial type) 2 pcs protective films for viewing window 1 pc cyclone tank (dust collector) 1 pc foot switch 1 pc electric control panel: emergency stop lamp dust extraction switch Water separator and pressure regulator Sandblasting mixing valve Solenoid valve for door lock Support rod for hanging small parts

Price on request

View product

Deltatherm HKG-W-50/12 - Temperature control unit

Netherlands

General SKU: 900WP088 Location: Barneveld Make: Deltatherm Main Features Capacity: 30 KW General Type: HKG-W-50/12 Extra information Extra Specifications: electrical power: 30 kW cooling power ( -20°C ) 50 kW Cooling power ( -60°C) 7 kW, Medium:Therminol D12, manufactured 2012

Price on request

View product

Vötsch VTU 100/150 Industrial Drying Oven

Serbia 2016

Vötsch VTU 100/150 Industrial Drying Oven The Vötsch VTU 100/150 is an industrial chamber oven designed for heating, drying and thermal processing applications. The unit operates with a recirculated air system and is equipped with a JUMO dTRON 04.1 controller and timer function. Technical Data Manufacturer: Vötsch Model: VTU 100/150 Type: Industrial Chamber Oven Maximum temperature: 250°C Heating power: 27 kW Power supply: 400 V / 50 Hz Nominal current: 42 A Dimensions and Capacity Internal dimensions (W × H × D): 1000 × 1500 × 1000 mm Chamber volume: 1500 L External dimensions (W × H × D): 2500 × 1850 × 1500 mm Weight: 780 kg Equipment JUMO dTRON 04.1 controller Digital temperature control Timer function Recirculated air system Internal insert CE marked Additional Information Year of manufacture: 2014 and 2016 Connected directly to on-site power supply

17,000 €

View product
