| Manufacturer | Milltronics |
|---|---|
| Model | MB20A |
| Year | |
| Location | USA
|

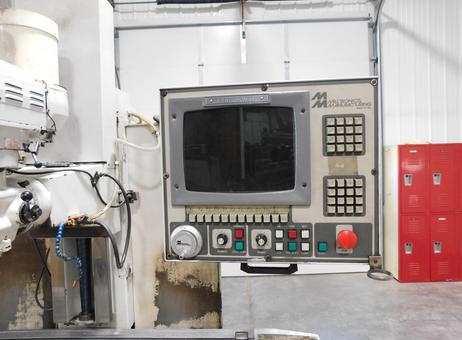

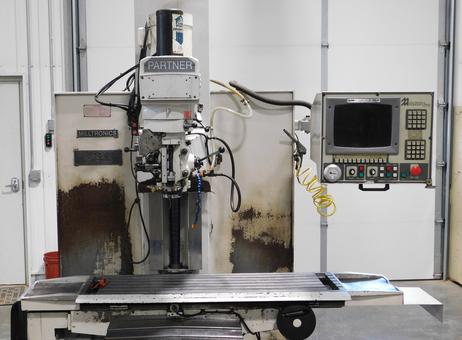

This CNC machining and turning center is designed for versatile turning and milling operations, suitable for a range of industrial applications. It features the Centurian VI control system, providing reliable and precise machine control. The machine is equipped with a power draw bar, facilitating efficient tool changes, and spindle speed control to allow for adjustments according to the machining requirements.
The work table measures 16 inches by 54 inches, accommodating various sizes of workpieces. The machine offers substantial travel distances with 40 inches along the X-axis, 20 inches along the Y-axis, and 24 inches along the Z-axis, including a quill travel of 6 inches for additional machining flexibility.
The maximum table feed rate is 300 inches per minute, supporting efficient material removal rates. The table can support a maximum load of 2,500 pounds, enabling the machining of heavy components. Spindle speed ranges are divided into a lower range of 60 to 500 RPM and a high-speed range of 500 to 4,000 RPM, providing a wide spectrum of machining speeds.
The spindle taper is CAT40, compatible with a variety of tooling options. The main motor is rated at 7.5 horsepower, operating at 220 volts with a 3-phase power supply. The overall machine dimensions are 85 inches in length, width, and height, with a total weight of approximately 7,000 pounds, indicating a robust and stable construction.
This machine is suitable for users requiring a capable CNC milling and turning center with comprehensive travel and speed capabilities. No additional accessories or condition details are provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
turning/milling
cnc machining & turning centers
Equipped with:
Centurian VI control
Power draw bar
Spindle speed control

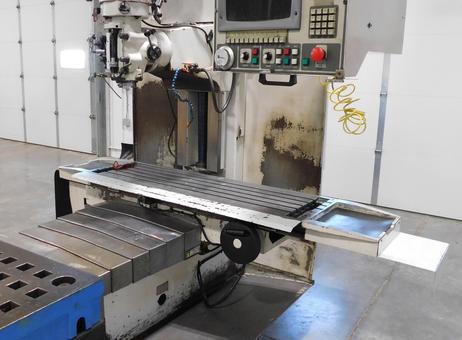

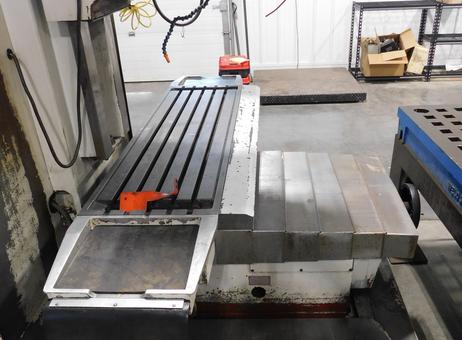

Table Size: 16" x 54"
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 24"
Quill Travel: 6"
Maximum Table Feed: 300 IPM
Maximum Table Load: 2,500 LBS
Lower Speed Range: 60-500 RPM
High Speed Range: 500-4,000 RPM
Spindle Taper: CAT40
Main Motor: 7.5 HP, 220V, 3 PH
Machine Dimensions: 85" x 85" x 85"
Machine Weight: 7,000 LBS
