| Manufacturer | Mediseal |
|---|---|
| Model | CP 400 / P 3000 |
| Year | 1998 |
| Location | Germany
|
| Category | Blister machines |
| Max foil width | 160 mm |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 24/10/2026 |
| Product id | P230817081 |
| Language |
Mediseal CP 400 / P 3000
Blistrovací stroj Mediseal CP 400 / P 3000
Mediseal CP 400 / P 3000
Mediseal CP 400 / P 3000 Blistermaschine
Mediseal CP 400 / P 3000
Mediseal CP 400 / P 3000 Blister machine
Máquina blister Mediseal CP 400 / P 3000
Blistéreuse Mediseal CP 400 / P 3000
Mediseal CP 400 / P 3000
Mediseal CP 400 / P 3000
Blisteratrice Mediseal CP 400 / P 3000
Mediseal CP 400 / P 3000
Mediseal CP 400 / P 3000
Blistrownica Mediseal CP 400 / P 3000
Mediseal CP 400 / P 3000
Mediseal CP 400 / P 3000
Mediseal CP 400 / P 3000 Блистерная машина
Mediseal CP 400 / P 3000
Mediseal CP 400 / P 3000
Blister ambalaj makinesi Mediseal CP 400 / P 3000
|

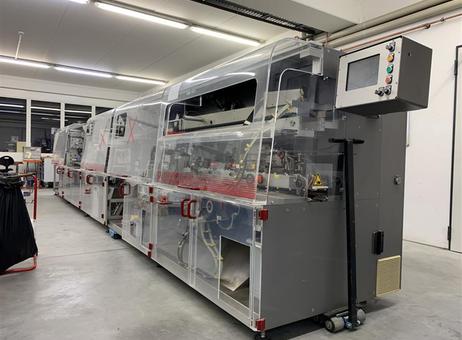

This listing features a blister packaging line composed of two main machines from Mediseal: the CP 400 thermoforming blister machine and the P 3000 folding box cartoning machine. The line includes a new PLC, an operator terminal (HMI), and servo controllers as part of a recent upgrade.
The Mediseal CP 400 thermoforming machine is designed for PVC/ALU film use, with the option to convert to ALU/ALU films at additional cost. It supports a maximum foil width of 160 mm and can output up to 400 blisters per minute. The machine accommodates roll diameters up to 500 mm with core diameters between 70 and 76 mm. It features two roll holders for thermoforming film, equipped with a film spreader and a gluing device that allows roll changes during operation. The pull-off length in the thermoforming range is adjustable between 140 and 220 mm. Drawing depths reach up to 12 mm for PVC and 9.5 mm for ALU films. The feeding system includes directional tablet feed and a brush box, though format parts are not included.
Additional features on the CP 400 include film heating and shrinkage compensation for PVC, film tear control for ALU, a signing station, perforating station, and fill control using a color camera system (Scanware). The machine operates on 220/400V at 50Hz. Note that no format tools for forming, sealing, signing, perforating, or punching are included.
The Mediseal P 3000 folding box cartoning machine operates continuously and handles folding cartons with width ranges of 35-85 mm, height of 12-95 mm, and length of 65-150 mm. It can produce up to 300 folding boxes per minute. The cartoning machine includes a leaflet folder and inserter (GUK FA 21/4 Cartonac 91) and is equipped for offset tuck-in flaps. It also features a blister stack shaft and is prepared for the installation of a color embossing unit (not included). Code reading capabilities cover one brochure, brochure in carton, and carton code, while bad carton ejection is managed with an ejection countercheck. This machine also runs on 220/400V at 50Hz.
The line has undergone a conversion/upgrade that includes a new B+R APC 2200 PLC with updated software, a B+R Automation TouchPanel HMI (model 5AP1120.101E), and new servo controllers. Photos currently show the old control system; the conversion will be completed after order receipt.

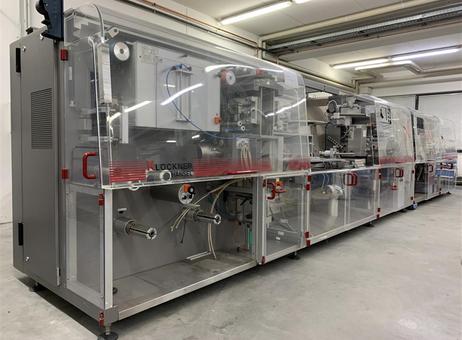

The machines appear clean and well-maintained without visible damage. The brand name 'KLOCKNER HANSEL' is visible on the machine body, indicating possible component sourcing or branding.
Please note that new format parts/tools, ALU/ALU conversion, and the color embossing unit are available at extra cost. The machine can also be sold in its current state at a lower price. It is important to note that no format tools are included with this offer.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

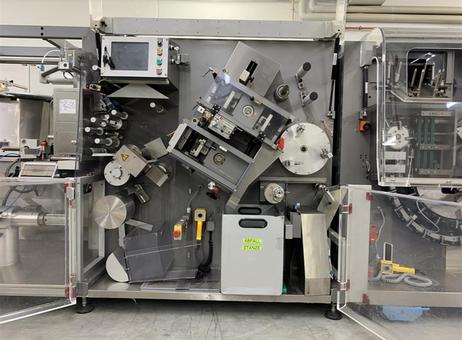

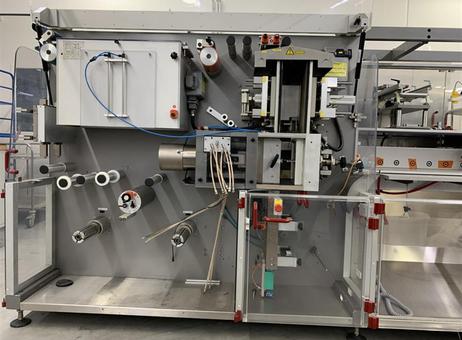

Blister packaging line, consisting of: Thermoforming blister machine Mediseal CP 400 and folding box cartoning machine Mediseal P 3000, incl. new PLC, operator terminal (HMI) and servocontroller:
Thermoforming blister machine CP 400:
• Set up for PVC/ALU film (conversion to ALU/ALU possible at extra cost)
• Output max. 400 blisters/min
• Foil width max. 160 mm
• Roll diam. max. 500 mm, core diam. 70-76 mm
• 2 roll holders for thermoforming film with film spreader and gluing device for roll change during operation
• Pull-off length in thermoforming range 140-220 mm
• Drawing depth PVC max. 12 mm
• Drawing depth ALU max. 9.5 mm
• Feeding: directional tablet feed and brush box (without format parts)
• Film heating (PVC) - Shrinkage compensation (PVC)
• Film tear control (ALU)
• Signing station
• Perforating station
• Fill control with colour camera Scanware
• Drive 220/400V/50Hz
• Without any format tools in the film run (forming, sealing, signing, perforating, punching)
Folding box cartoning machine P 3000:
• Continuous running
• Format range folding cartons w 35-85 mm, h 12-95 mm, l 65-150 mm
• Output max. 300 folding boxes/min
• Leaflet folder and inserter from stack GUK FA 21/4 Cartonac 91
• Equipped for offset tuck-in flap
• Blister stack shaft
• Prepared for installation of colour embossing unit (not included)
• Code reading 1x brochure, brochure in carton, 1x carton code
• Bad carton ejection with ejection countercheck
• Drive 220/400V/50Hz

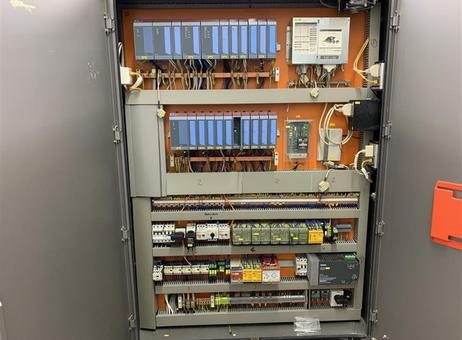

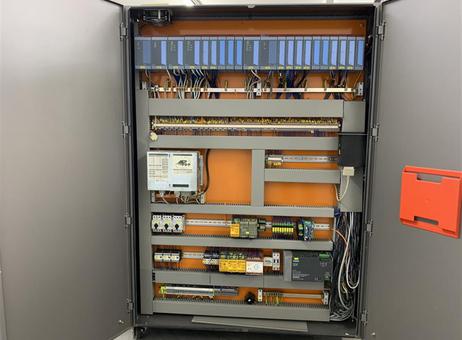

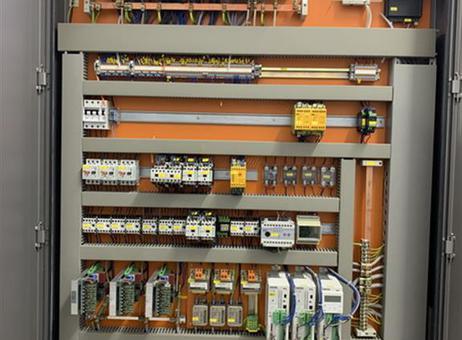

Conversion / upgrade included (photos still show old control system, conversion will be carried out after receipt of order):
• New PLC B+R type APC 2200 with new software
• New HMI B+R Automation TouchPanel 5AP1120.101E
• New servo controllers
New format parts/tools, ALU/ALU conversion and colour embossing unit can be offered at extra cost.
NB : This machine can also be sold in its current state for a cheaper price. Please note that the machine does not include any formats.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of machines are included in this Mediseal CP 400 / P 3000?
This Mediseal CP 400 / P 3000 blister machine is a blister packaging line consisting of a thermoforming blister machine and a folding box cartoning machine.
What film types can this Mediseal CP 400 blister machine use?
This Mediseal CP 400 blister machine is set up for PVC/ALU film, with a conversion to ALU/ALU possible at extra cost.
What is the maximum output of this Mediseal CP 400 blister machine?
This Mediseal CP 400 blister machine has a maximum output of 50-60 cycles per minute depending on the blister format.
What is the maximum blister output for this Mediseal CP 400?
This Mediseal CP 400 blister machine has a maximum output of 400 blisters per minute depending on the blister format.
What are the maximum foil width and roll diameter for this Mediseal CP 400?
This Mediseal CP 400 blister machine has a maximum foil width of 160 mm and a maximum roll diameter of 500 mm.
What is the core diameter and roll holder feature of this Mediseal CP 400?
This Mediseal CP 400 blister machine has a core diameter of 70-76 mm and includes two roll holders for thermoforming film.
What is the pull-off length range for this Mediseal CP 400?
This Mediseal CP 400 blister machine has a pull-off length in the thermoforming range of 140-220 mm.
What are the format dimensions for this Mediseal P 3000 cartoning machine?
This Mediseal P 3000 folding box cartoning machine has a format range for folding cartons of width 35-85 mm, height 12-95 mm, and length 65-150 mm.
