| Manufacturer | MECOF |
|---|---|
| Model | SPEEDSTYLE CNC |
| Year | 1997 |
| Location | Italy
|
The MECOF SPEEDSTYLE CNC is a robust travelling column milling machine designed for large-scale and precise machining tasks. Manufactured in 1997, this machine features substantial working dimensions with a cross stroke (X-axis) of 16,000 mm, a vertical stroke (Y-axis) of 3,000 mm, and a RAM run (Z-axis) of 1,650 mm, accommodating sizable workpieces and complex machining operations.
Equipped with a spindle motor delivering 15 kW of power, the spindle speed ranges from 0 to 15,000 rpm, allowing for versatile machining speeds suitable for various materials and cutting requirements. The spindle taper is HSK 50 A, which supports a wide range of tooling options.
The machine operates under CNC control, specifically with a CNC FIDIA M 30 system supporting 5-axis machining, enhancing its capability to perform complex and precise multi-directional milling tasks. The work progress speed can reach up to 20,000 mm/min, facilitating efficient and rapid machining cycles.
This listing includes two opposite equal machines, each equipped with a milling head model Space 11 bi-rotary featuring two continuous axes with rotation ranges of ±110° and ±400°, respectively. Additionally, a suction system is integrated to assist with material removal and maintain a cleaner working environment.

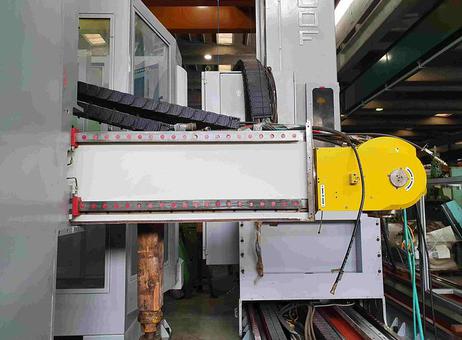

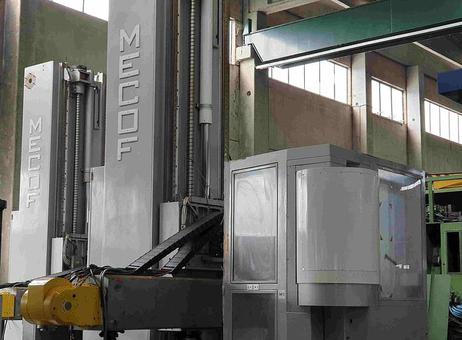

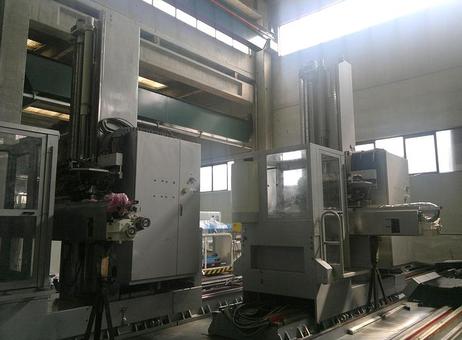

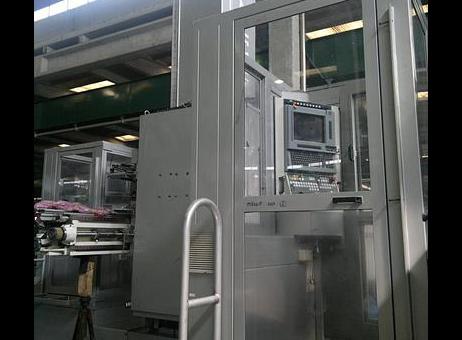

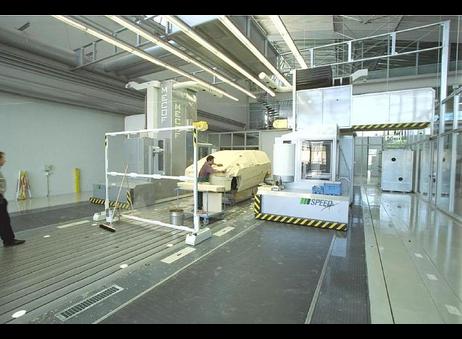

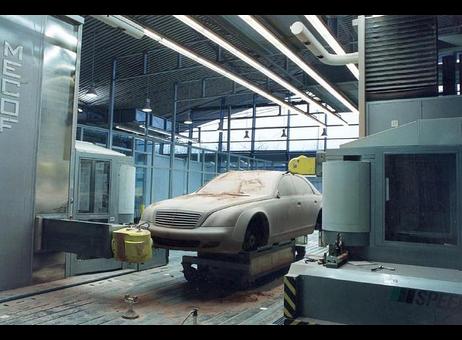

From the images, the machine is installed in a spacious industrial workshop and appears clean and well-maintained with no visible damage. The vertical columns bear the MECOF branding, and the horizontal bed includes grooves for secure mounting of workpieces or fixtures. A protective transparent safety guard surrounds the work area, enhancing operator safety. One image shows a car body model mounted on the worktable, indicating the machine's suitability for prototyping or complex shaping tasks. The tool holder is equipped with a yellow protective cover.
Weighing 35,000 kg, this heavy-duty milling machine is suitable for demanding industrial applications requiring precision and large working envelopes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Cross stroke 16,000mm.
Vertical stroke 3,000 mm.
RAM run 1,650mm.
Spindle taper HSK 50 A
Spindle motor power 15 kW.
Spindle rotation speed 0 ÷ 15.000 Rpm.
Work progress 0 ÷ 20.000mm/min.
cnc CNC FIDIA M 30 - 5 AXIS
N. 2 opposite equal machines each complete with: - milling head mod. Space 11 bi-rotary with two continuous axes: axis at +/- 110°; axis b +/- 400° - suction system
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
