| Manufacturer | MECOF |
|---|---|
| Model | DYNAMILL 3000L |
| Year | 1999 |
| Location | Spain
|
Machine overview

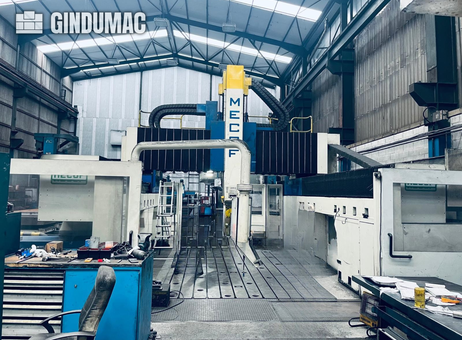

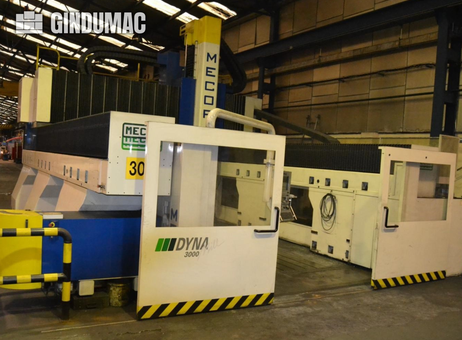

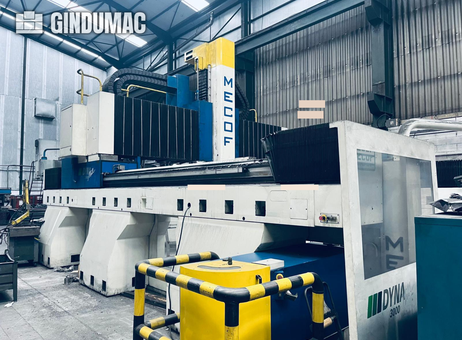

This listing is for a MECOF DYNAMILL 3000L gantry milling machine (manufacturer: MECOF, model: DYNAMILL 3000L), manufactured in 1999. The machine is presented as a high-performance gantry milling platform intended for complex milling and multi-axis machining tasks.
Drive and spindle
The machine is fitted with a high-power spindle motor rated at 22.0 kW and a listed maximum spindle speed of 103000 rpm. The spindle system is offered with multiple head options and automatic tool clamping functionality.
Heads and tables (options described in original specification)
- Orthogonal head with automatic tool clamping is included as a head option.
- An electrospindle (PDFTwin) head option is listed.
- The machine documentation also references both an indexed positioning platform and a continuous-positioning platform as available configurations.
Tool handling and accessories
The original specification references a tool magazine for automatic tool changing and additional equipment items such as a tool profile measurement device, a cart-type head magazine, a BLUM radio-transmitted laser probe, an air/oil tool cooling system, and the MECOF High-Speed Milling system.
Notes and next steps
This description summarizes the technical features and options stated in the provided specification. Numeric details and further configuration specifics that were included in the original specification (for example travel ranges, tool magazine capacity, detailed speed ranges, clamping forces, positioning accuracies and head model numbers) are available in the full technical documentation—please request the complete specification sheet or documentation for exact numeric values, configuration options, and any included accessories. No statements about operational condition, testing, or warranty are made here; please request inspection reports or test records if required.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 5-axis MECOF DYNAMILL 3000L was manufactured in 1999. It features an impressive X-axis travel of 5,500 mm, Y-axis travel of 3,000 mm, and Z-axis travel of 1,500 mm. The machine is equipped with a powerful spindle taper of ISO 50 and a tool magazine capacity of 24 tools. If you are looking to get high-quality milling capabilities, consider the MECOF DYNAMILL 3000L gantry milling machine we have for sale. Contact us for further details.Orthogonal head: 10–3,000 rpm speed range; 22 kW power; automatic tool clamping (20,000 N clamping force)
PDFTwin 15 head (GAMFIOR electrospindle): 600–24,000 rpm speed range; 17.5 kW motor power; E18 electrospindle
Indexed positioning platform: 360 positions; ±180° rotation range; ±0.02/300 mm positioning accuracy; 45,000 Nm axial clamping force
PDFContinuous positioning platform: 360,000 positions; ±185° C-axis rotation range; 0–2,400°/min C-axis rotation speed; 2,000 Nm clamping torque
Additional equipment
Tool profile measurement device
Cart-type head magazine
BLUM radio-transmitted laser probe
Air/oil tool cooling system
MECOF High-Speed Milling system
Number of Axes: 5
Tool Stations: 24
Spindle Power: 22 kW
Spindle Speed: 3000 RPM
Taper Size: ISO 50
X-axis Travel: 5500 mm
Y-axis Travel: 3000 mm
Z-axis Travel: 1500 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2095 |
| Last activity | Oct. 27, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
This 5-axis MECOF DYNAMILL 3000L was manufactured in 1999. It features an impressive X-axis travel of 5,500 mm, Y-axis travel of 3,000 mm, and Z-axis travel of 1,500 mm. The machine is equipped with a powerful spindle taper of ISO 50 and a tool magazine capacity of 24 tools. If you are looking to get high-quality milling capabilities, consider the MECOF DYNAMILL 3000L gantry milling machine we have for sale. Contact us for further details.Orthogonal head: 10–3,000 rpm speed range; 22 kW power; automatic tool clamping (20,000 N clamping force)
PDFTwin 15 head (GAMFIOR electrospindle): 600–24,000 rpm speed range; 17.5 kW motor power; E18 electrospindle
Indexed positioning platform: 360 positions; ±180° rotation range; ±0.02/300 mm positioning accuracy; 45,000 Nm axial clamping force
PDFContinuous positioning platform: 360,000 positions; ±185° C-axis rotation range; 0–2,400°/min C-axis rotation speed; 2,000 Nm clamping torque
Additional equipment
Tool profile measurement device
Cart-type head magazine
BLUM radio-transmitted laser probe
Air/oil tool cooling system
MECOF High-Speed Milling system
Number of Axes: 5
Tool Stations: 24
Spindle Power: 22 kW
Spindle Speed: 3000 RPM
Taper Size: ISO 50
X-axis Travel: 5500 mm
Y-axis Travel: 3000 mm
Z-axis Travel: 1500 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
