Contact us to receive an offer.
| Manufacturer | MECOF |
|---|---|
| Model | AGILE M3 |
| Year | 2003 |
| Location | Italy
|

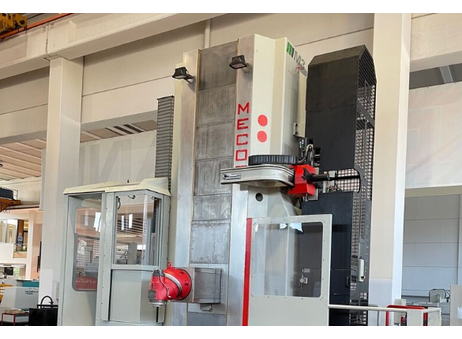

The MECOF AGILE M3 is a travelling column milling machine manufactured in 2003, designed for versatile and precise machining tasks. It features a HEIDENHAIN iTNC530 control system, providing advanced programmable adaptive control and tool life monitoring capabilities. The machine is equipped with an automatic birotative head TBA4, offering 1° and 3° rotation with HIRTH gearing, which has been completely overhauled by EMCO MECOF.
The spindle head includes a refrigerated oil cooling system to maintain optimal operating temperatures. The spindle motor delivers a powerful 30 kW output with a maximum torque of 780 Nm, enabling heavy-duty milling operations. An automatic tool changer with 61 positions allows for efficient and flexible tooling setups.
The work area consists of two STOLLE worktables, each measuring 2,500 x 1,000 x 1,200 mm, combining for a total worktable size of 12,000 x 2,500 mm. These tables offer a robust and stable platform for large and complex workpieces. The machine is also equipped with a chain chip conveyor for effective chip removal and a tool coolant system supplying coolant around the spindle to enhance tool life and machining quality.
Additional features include a mobile operator platform with hydraulic vertical movement, enhancing operator ergonomics and accessibility. The machine has a protective enclosure with transparent panels surrounding the working area, ensuring safety while allowing clear visibility during operation. A control cabin with a window is located on the left side, providing a dedicated and comfortable operator environment.
Overall, the MECOF AGILE M3 is a well-maintained, clean travelling column milling machine suitable for demanding industrial milling applications, offering a combination of advanced control, powerful spindle performance, and extensive tooling capacity.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The MECOF AGILE M3 is a mobile vertical milling machine. It features a control system by HEIDENHAIN iTNC530, a rotating and translating worktable, and an automatic birotative head TBA4 1° + 3° with HIRTH gear. The machine is equipped with a refrigerated oil head spindle, a 30 Kw spindle motor, a maximum couple of 780 Nm, an automatic tool changer for 61 positions, a mobile operator pedal with vertical hydraulic movement, and an adaptive programmable control. The machine also includes a chip conveyor by chain, a tool refrigeration system around the spindle, and a two-plane STOLLE worktable for a total of 12,000 x 2,500 mm. The head TBA4 has been completely revised by EMCO MECOF.
HEIDENHAIN iTNC530 CONTROL
TBA4 AUTOMATIC BI-ROTARY HEAD 1° + 3° with HIRTH gearing
Spindle head oil cooler
30 kW spindle motor power
780 Nm maximum spindle torque
61-station automatic tool changer
Mobile operator platform with hydraulic vertical movement
Programmable adaptive control
Tool life monitoring
Chain chip conveyor
Tool coolant with supply around the spindle
Worktable with 2 STOLLE tables for a total of 12,000 x 2,500 mm
Lrecbozcfg Hot R Up Ejn
4 squares per worktable measuring 2,500 x 1,000 x 1,200 mm
CE mark and manuals
TBA4 HEAD COMPLETELY OVERHAULED BY EMCO MECOF
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Does this AGILE M3 have a mobile-column configuration?
This AGILE M3 milling machine has a mobile-column configuration.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 3 |
| Last activity | Oct. 22, 2026 |
The MECOF AGILE M3 is a mobile vertical milling machine. It features a control system by HEIDENHAIN iTNC530, a rotating and translating worktable, and an automatic birotative head TBA4 1° + 3° with HIRTH gear. The machine is equipped with a refrigerated oil head spindle, a 30 Kw spindle motor, a maximum couple of 780 Nm, an automatic tool changer for 61 positions, a mobile operator pedal with vertical hydraulic movement, and an adaptive programmable control. The machine also includes a chip conveyor by chain, a tool refrigeration system around the spindle, and a two-plane STOLLE worktable for a total of 12,000 x 2,500 mm. The head TBA4 has been completely revised by EMCO MECOF.
HEIDENHAIN iTNC530 CONTROL
TBA4 AUTOMATIC BI-ROTARY HEAD 1° + 3° with HIRTH gearing
Spindle head oil cooler
30 kW spindle motor power
780 Nm maximum spindle torque
61-station automatic tool changer
Mobile operator platform with hydraulic vertical movement
Programmable adaptive control
Tool life monitoring
Chain chip conveyor
Tool coolant with supply around the spindle
Worktable with 2 STOLLE tables for a total of 12,000 x 2,500 mm
Lrecbozcfg Hot R Up Ejn
4 squares per worktable measuring 2,500 x 1,000 x 1,200 mm
CE mark and manuals
TBA4 HEAD COMPLETELY OVERHAULED BY EMCO MECOF
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Does this AGILE M3 have a mobile-column configuration?
This AGILE M3 milling machine has a mobile-column configuration.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The MECOF AGILE M3 is a travelling column milling machine manufactured in 2003, designed for versatile and precise machining tasks. It features a HEIDENHAIN iTNC530 control system, providing advanced programmable adaptive control and tool life monitoring capabilities. The machine is equipped with an automatic birotative head TBA4, offering 1° and 3° rotation with HIRTH gearing, which has been completely overhauled by EMCO MECOF.
The spindle head includes a refrigerated oil cooling system to maintain optimal operating temperatures. The spindle motor delivers a powerful 30 kW output with a maximum torque of 780 Nm, enabling heavy-duty milling operations. An automatic tool changer with 61 positions allows for efficient and flexible tooling setups.
The work area consists of two STOLLE worktables, each measuring 2,500 x 1,000 x 1,200 mm, combining for a total worktable size of 12,000 x 2,500 mm. These tables offer a robust and stable platform for large and complex workpieces. The machine is also equipped with a chain chip conveyor for effective chip removal and a tool coolant system supplying coolant around the spindle to enhance tool life and machining quality.
Additional features include a mobile operator platform with hydraulic vertical movement, enhancing operator ergonomics and accessibility. The machine has a protective enclosure with transparent panels surrounding the working area, ensuring safety while allowing clear visibility during operation. A control cabin with a window is located on the left side, providing a dedicated and comfortable operator environment.
Overall, the MECOF AGILE M3 is a well-maintained, clean travelling column milling machine suitable for demanding industrial milling applications, offering a combination of advanced control, powerful spindle performance, and extensive tooling capacity.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 3 |
| Last activity | Oct. 22, 2026 |
