| Manufacturer | MECOF |
|---|---|
| Model | AGILE M 3 CNC |
| Year | 2004 |
| Location | Italy
|
This MECOF AGILE M 3 CNC travelling column milling machine, manufactured in 2004, is designed for heavy-duty milling applications. It features a large worktable measuring 2500 mm in length and 2000 mm in width, capable of supporting a maximum load of 28 tons. The machine offers substantial travel ranges with an X-axis stroke of 4000 mm, a Y-axis stroke of 2000 mm, and a Z-axis stroke of 1250 mm, providing versatility for machining large workpieces.

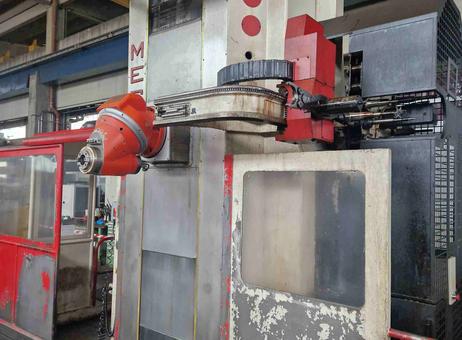

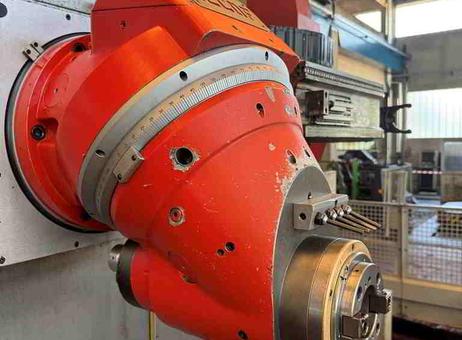

The spindle is powered by a 30 kW motor, with a maximum spindle speed of 4000 rpm, accommodating a wide range of machining operations. The spindle cone uses an ISO 50 taper. The machine is equipped with a universal indexed milling head featuring a C axis and continuous A axis movement, enhancing its capability for complex machining tasks.
Additional features include a 41-place tool magazine and a chip evacuator system to manage machining debris efficiently. The CNC control system is a FIDIA C 20/XPOWER, supporting precise and automated machining processes.

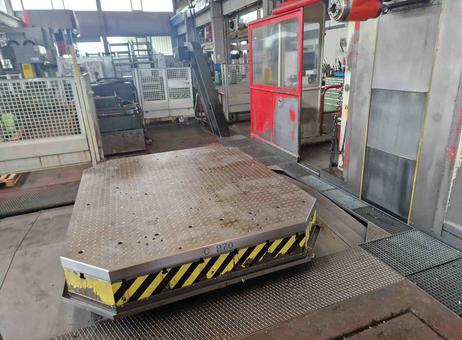

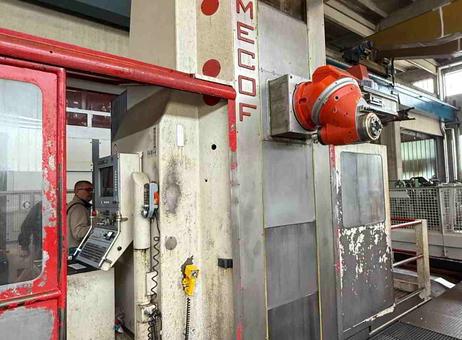

The machine is housed in a red and white painted frame with visible signs of wear and chipped paint consistent with industrial use. It includes a red protective enclosure door with a glass window for operator safety and visibility. A yellow overhead protective guard is installed above the spindle head, and cable chains guide cables and hoses along the machine column. The worktable surface shows some wear and minor rust spots and is equipped with multiple drilled holes for clamping.

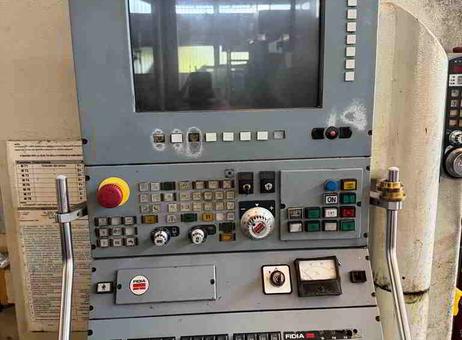

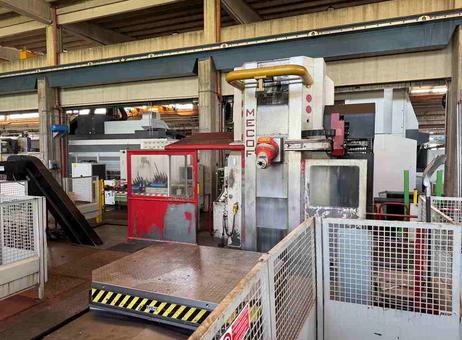

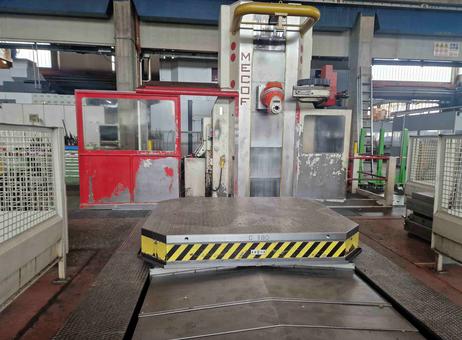

The milling machine is installed indoors within an industrial workshop environment, surrounded by metal grating flooring and safety barriers. An operator control panel with buttons and switches is mounted inside the enclosure, and a yellow emergency stop button is located on the machine column for safety. Overall, this machine is a robust solution for large-scale milling operations requiring precision and flexibility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Complete with:
- universal indexed milling head: C axis 1st, A axis continuous
- No. 1 cnc 2-axis rototranslating table:
2,500 x 2,000 mm area.
capacity 28 tons.
stroke (V) 2,000 mm.
working feeds (V) 0 ÷ 6,000 mm/min.
- 41-place tool magazine
- chip evacuator
Transverse Stroke: 4,000 mm.
Vertical Stroke: 2,000 mm.
Ram Stroke: 1,250 mm.
Spindle Cone: ISO 50
Spindle Motor Power: 30 Kw.
Spindle Rotation Speed: 15 ÷ 4,000 Rpm.
Table Capacity: 28 Tonn.
Working Feeds: 0 ÷ 20.000 mm/min.
Cnc: CNC FIDIA C 20/XPOWER
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
