Contact us to receive an offer.
| Manufacturer | MEBA |
|---|---|
| Model | 320 DGA CNC |
| Year | |
| Location | Poland
|
This MEBA 320 DGA CNC band saw is a metal cutting machine designed for precise straight and diagonal cuts. It offers cutting angles ranging from 90° to 30° on the right side and 90° to 45° on the left side, with a maximum cutting capacity of 500 mm at 90° and 300 mm at 45°. The saw blade has a width of 32 mm and operates at a cutting speed of up to 115 m/min, allowing for efficient material processing.
The machine is powered by a 2.2 kW electric motor and features a stepless adjustable belt speed from 18 to 115 m/min. Material feeding capabilities include single feed up to 800 mm and multiple feed up to 999.9 mm, accommodating various workpiece sizes. The saw uses band dimensions of 4200 x 32 x 1.1 mm.

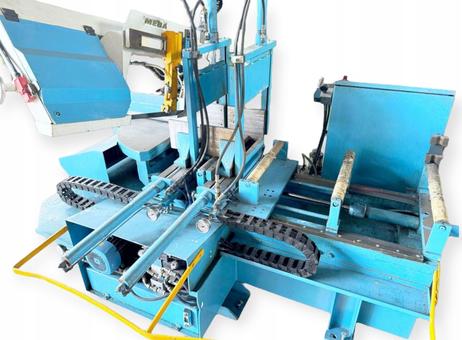

Measuring 2600 mm in length, 2300 mm in width, and 2000 mm in height, this band saw weighs approximately 1600 kg. It is equipped with two hydraulic cylinders with pressure gauges, which are part of the clamping system to securely hold materials during cutting. The material holder includes two cylindrical rollers wrapped in protective material, aiding smooth material feeding. The clamping system consists of two vertical clamps and a horizontal base plate for stable positioning of workpieces.

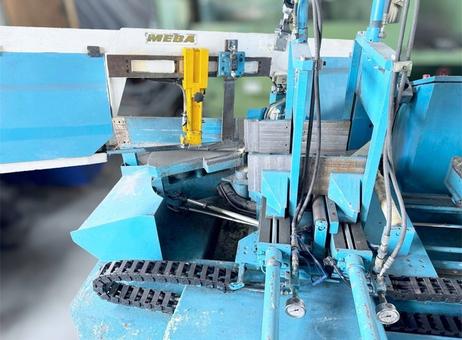

The machine's exterior is painted blue with MEBA branding on the upper arm. A yellow blade guard is installed on the cutting arm for safety. The machine shows signs of use, including some paint wear and dirt, but there is no visible major damage. This band saw is suitable for metalworking applications requiring precise angled cuts with CNC control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The saw comes from Germany, is 100% functional, in very good condition. CNC control! It is connected - you can test it.
TECHNICAL DATA:
for straight and diagonal cuts in the range of 90° - 30° to the right and 90° - 45° to the left
flat 90° 500 x 300 mm
belt speed (stepless) 18 – 115 m/min.
material feed (single) 0 – 800 mm
material feed (multiple) 0 – 999.9 mm
tape dimensions 4 200 x 32 x 1.1 mm
power 2.2 kW
machine dimensions 2.6 × 2.3 × 2.0 m
weight approx. 1,600 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 12 |
| Last activity | Oct. 13, 2026 |
The saw comes from Germany, is 100% functional, in very good condition. CNC control! It is connected - you can test it.
TECHNICAL DATA:
for straight and diagonal cuts in the range of 90° - 30° to the right and 90° - 45° to the left
flat 90° 500 x 300 mm
belt speed (stepless) 18 – 115 m/min.
material feed (single) 0 – 800 mm
material feed (multiple) 0 – 999.9 mm
tape dimensions 4 200 x 32 x 1.1 mm
power 2.2 kW
machine dimensions 2.6 × 2.3 × 2.0 m
weight approx. 1,600 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This MEBA 320 DGA CNC band saw is a metal cutting machine designed for precise straight and diagonal cuts. It offers cutting angles ranging from 90° to 30° on the right side and 90° to 45° on the left side, with a maximum cutting capacity of 500 mm at 90° and 300 mm at 45°. The saw blade has a width of 32 mm and operates at a cutting speed of up to 115 m/min, allowing for efficient material processing.
The machine is powered by a 2.2 kW electric motor and features a stepless adjustable belt speed from 18 to 115 m/min. Material feeding capabilities include single feed up to 800 mm and multiple feed up to 999.9 mm, accommodating various workpiece sizes. The saw uses band dimensions of 4200 x 32 x 1.1 mm.
Measuring 2600 mm in length, 2300 mm in width, and 2000 mm in height, this band saw weighs approximately 1600 kg. It is equipped with two hydraulic cylinders with pressure gauges, which are part of the clamping system to securely hold materials during cutting. The material holder includes two cylindrical rollers wrapped in protective material, aiding smooth material feeding. The clamping system consists of two vertical clamps and a horizontal base plate for stable positioning of workpieces.
The machine's exterior is painted blue with MEBA branding on the upper arm. A yellow blade guard is installed on the cutting arm for safety. The machine shows signs of use, including some paint wear and dirt, but there is no visible major damage. This band saw is suitable for metalworking applications requiring precise angled cuts with CNC control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 12 |
| Last activity | Oct. 13, 2026 |
