Contact us to receive an offer.
| Manufacturer | MAZAK |
|---|---|
| Model | Space gear 48 |
| Year | 2000 |
| Location | Italy
|

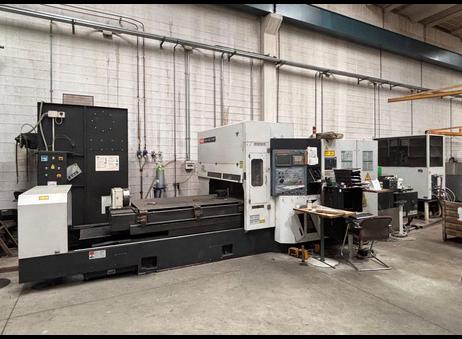

The Mazak Space Gear 48 is an industrial CO₂ laser cutting machine designed for precision cutting of various metal materials. Manufactured in 2000, this machine features a robust build with dimensions of 4000 mm in length, 10400 mm in width, and 2700 mm in height, weighing approximately 12,900 kg. It operates with a 2000 W laser power source, suitable for cutting steel up to 12 mm thick, stainless steel up to 6 mm, and aluminum up to 3 mm.

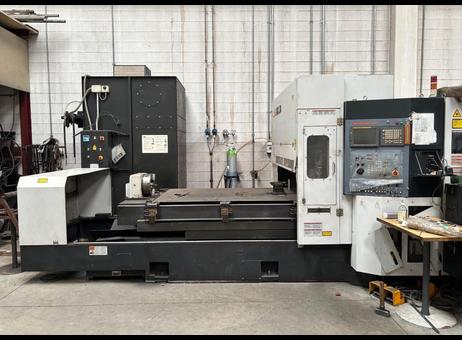

This model is equipped with a Fanuc 160i-l control system, which includes a control panel with a screen and buttons situated on the right side of the machine, facilitating user interaction and operation. The control interface supports floppy disk input. The machine offers multi-axis movement capabilities, including 2775 mm travel along the X-axis, 1270 mm along the Y-axis, and 420 mm along the Z-axis, along with rotational movements of 360º on the A-axis and 135º on the B-axis, allowing for versatile and complex cutting operations.

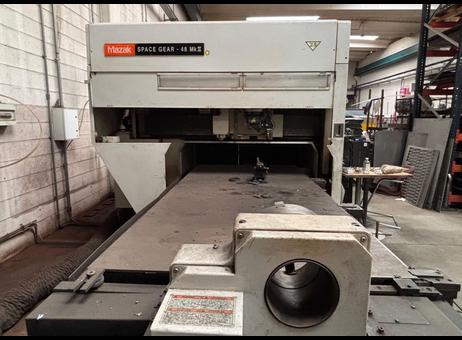

The cutting head size is 5 inches, with a single cutting head installed. The machine's flatbed work area includes clamps and a rotary chuck designed for holding cylindrical workpieces, enhancing its functionality for various applications.

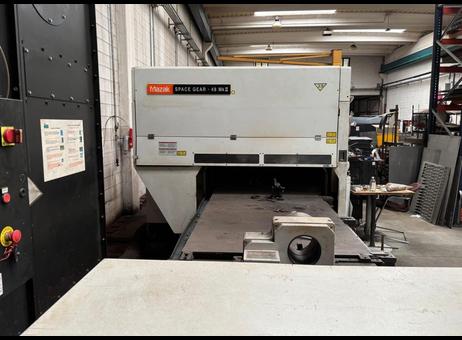

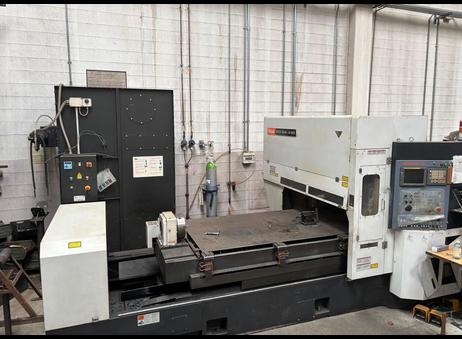

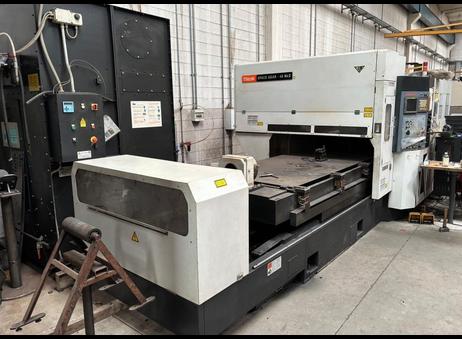

Visible components include a large black exhaust or filtration unit positioned behind the machine on the left side, contributing to ventilation and safety. The machine's exterior features a black and white color scheme, with a black base and white upper housing covering the laser source and mechanics. Safety warning labels are present on the housing.

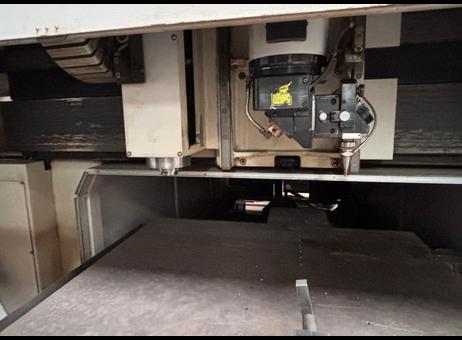

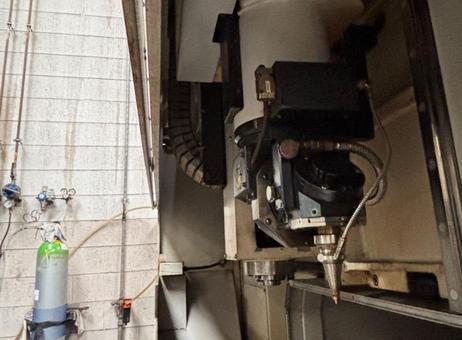

The machine shows signs of use, with surface wear and some metal debris visible on the flatbed, indicating prior operation. The interior components, including the laser head and nozzle assembly, appear used but without visible damage. Nearby, a gas cylinder with regulator and piping is present in the workshop area. An attached table with various items and a chair are located near the control panel, supporting operator convenience.
Overall, the Mazak Space Gear 48 is a substantial laser cutting machine suitable for industrial applications requiring precise metal cutting with a CO₂ laser source and multi-axis movement capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Control Unit Brand: Fanuc
General Information
Machine Length: 4000 Mm
Machine Width: 10400 Mm
Machine Height: 2700 Mm
Machine Weight: 12900 Kg
Control System
Brand: Fanuc
Model: 160i-l
Interface: Floppy Disk
Main Transmission
Laser Power: 2 Kw
Laser Type: Co2
Laser Brand: Fanuc
Movement
Axis-x Movement: 2775 Mm
Y-Axis Movement: 1270 Mm
Axis-Z Motion: 420 Mm
Axis-a Motion: 360º Mm
Axis-b Movement: 135º Mm
Maximum Material Thickness
Steel: 12 Mm
Stainless Steel: 6 Mm
Aluminum: 3 Mm
Machine Specification Information
Number Of Cutting Heads: 1
Cutting Head Size 1: 5"
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 203 |
| Last activity | Oct. 26, 2026 |
Control Unit Brand: Fanuc
General Information
Machine Length: 4000 Mm
Machine Width: 10400 Mm
Machine Height: 2700 Mm
Machine Weight: 12900 Kg
Control System
Brand: Fanuc
Model: 160i-l
Interface: Floppy Disk
Main Transmission
Laser Power: 2 Kw
Laser Type: Co2
Laser Brand: Fanuc
Movement
Axis-x Movement: 2775 Mm
Y-Axis Movement: 1270 Mm
Axis-Z Motion: 420 Mm
Axis-a Motion: 360º Mm
Axis-b Movement: 135º Mm
Maximum Material Thickness
Steel: 12 Mm
Stainless Steel: 6 Mm
Aluminum: 3 Mm
Machine Specification Information
Number Of Cutting Heads: 1
Cutting Head Size 1: 5"
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Mazak Space Gear 48 is an industrial CO₂ laser cutting machine designed for precision cutting of various metal materials. Manufactured in 2000, this machine features a robust build with dimensions of 4000 mm in length, 10400 mm in width, and 2700 mm in height, weighing approximately 12,900 kg. It operates with a 2000 W laser power source, suitable for cutting steel up to 12 mm thick, stainless steel up to 6 mm, and aluminum up to 3 mm.
This model is equipped with a Fanuc 160i-l control system, which includes a control panel with a screen and buttons situated on the right side of the machine, facilitating user interaction and operation. The control interface supports floppy disk input. The machine offers multi-axis movement capabilities, including 2775 mm travel along the X-axis, 1270 mm along the Y-axis, and 420 mm along the Z-axis, along with rotational movements of 360º on the A-axis and 135º on the B-axis, allowing for versatile and complex cutting operations.
The cutting head size is 5 inches, with a single cutting head installed. The machine's flatbed work area includes clamps and a rotary chuck designed for holding cylindrical workpieces, enhancing its functionality for various applications.
Visible components include a large black exhaust or filtration unit positioned behind the machine on the left side, contributing to ventilation and safety. The machine's exterior features a black and white color scheme, with a black base and white upper housing covering the laser source and mechanics. Safety warning labels are present on the housing.
The machine shows signs of use, with surface wear and some metal debris visible on the flatbed, indicating prior operation. The interior components, including the laser head and nozzle assembly, appear used but without visible damage. Nearby, a gas cylinder with regulator and piping is present in the workshop area. An attached table with various items and a chair are located near the control panel, supporting operator convenience.
Overall, the Mazak Space Gear 48 is a substantial laser cutting machine suitable for industrial applications requiring precise metal cutting with a CO₂ laser source and multi-axis movement capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 203 |
| Last activity | Oct. 26, 2026 |
