| Manufacturer | Mazak |
|---|---|
| Model | HQR-250MSY |
| Year | 2018 |
| Location | United Kingdom
|
| Category | Lathes - CNC lathes |
| Turning Ø | 344 mm |
| Ø above the bed | 370 mm |
| Length between centers | 860 mm |
| Type of CNC | MAZATROL Smooth G |
| X-axis | 207 mm |
| Z-axis | 760 mm |
| Spindle taper | |
| Number of tools on turret | 12 |
| Turning speed | 5000 rpm |
| Spindle motor power | 22 kW |
| Tailstock | no |
| Bar feeder | yes |
| Length x width x height | 4670.0 × 2701.0 × 2497.0 |
| Weight | 15100 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | yes |
| status | visible |
| Last availability date | 17/10/2026 |
| Product id | P230825170 |
| Language |
Mazak HQR-250MSY
Soustruh cnc Mazak HQR-250MSY
Mazak HQR-250MSY
Mazak HQR-250MSY Drehmaschine CNC
Mazak HQR-250MSY
Mazak HQR-250MSY cnc lathe
Torno cnc Mazak HQR-250MSY
Tour cnc Mazak HQR-250MSY
Mazak HQR-250MSY
Mazak HQR-250MSY
Tornio cnc Mazak HQR-250MSY
Mazak HQR-250MSY
Mazak HQR-250MSY
Tokarka CNC Mazak HQR-250MSY
Mazak HQR-250MSY
Mazak HQR-250MSY
Mazak HQR-250MSY Токарный станок с ЧПУ
Mazak HQR-250MSY
Mazak HQR-250MSY
Cnc torna Mazak HQR-250MSY
|
This listing features a Mazak Smooth CNC lathe, model HQR-250MSY, manufactured in 2018. The machine offers a maximum turning diameter of 344 mm and a swing diameter above the bed of 370 mm, with a length between centers of 860 mm. It has a robust spindle motor power of 22 kW and a maximum spindle speed of 5000 rpm. The lathe is equipped with a 12-station lower turret and a 12-station upper turret, each capable of accommodating tools up to 25 x 25 mm in size. The X-axis travel is 207 mm, while the Z-axis travel extends to 760 mm, providing ample machining range. The machine dimensions are 4670 mm in length, 2701 mm in width, and 2497 mm in height, with a total weight of 15,100 kg.
The control system is the MAZATROL Smooth G, known for its precision and ease of use. This lathe includes advanced features such as C-axis control with 0.0001-degree accuracy, enhancing machining versatility. Rapid feed rates are impressive, with X1, X2, Y1, Y2, Z1, and Z2 axes capable of speeds up to 30, 24, 26, 20, 36, and 36 meters per minute respectively.

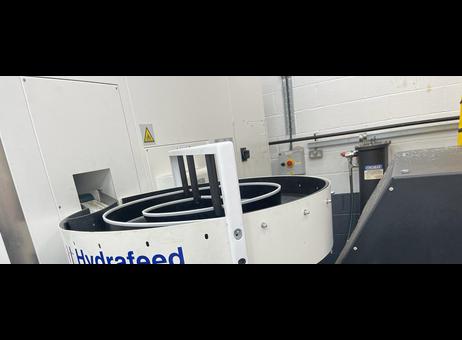

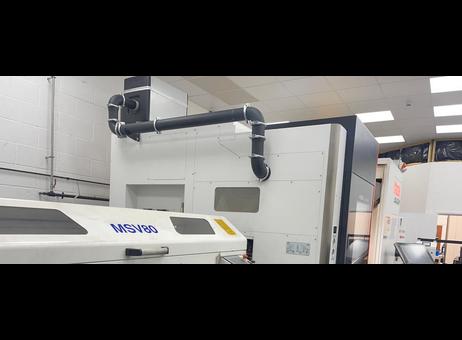

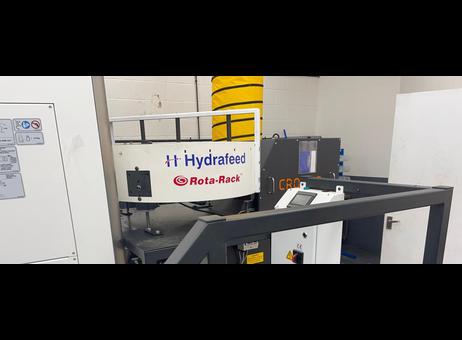

Additional equipment includes a Hydrafeed MSV80 bar feeder and a Rota-Rack parts accumulator, facilitating efficient bar feeding and parts handling. The machine is fitted with milling motors on both turrets rated at 11 kW, with milling speeds reaching 6000 rpm. The spindle nose types are A2-8 for the main spindle and A2-6 for the sub spindle, the latter having a stroke of 865 mm.

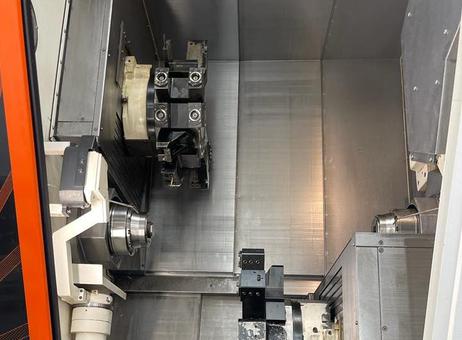

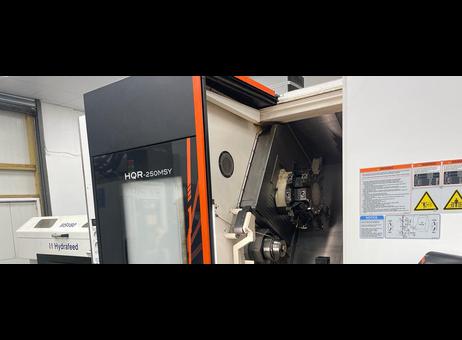

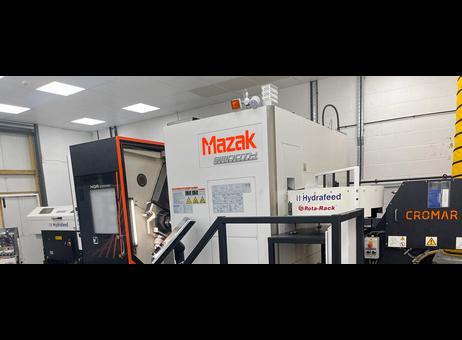

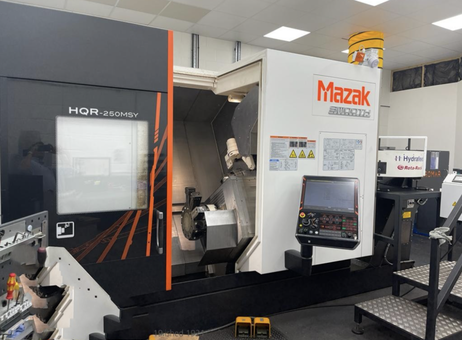

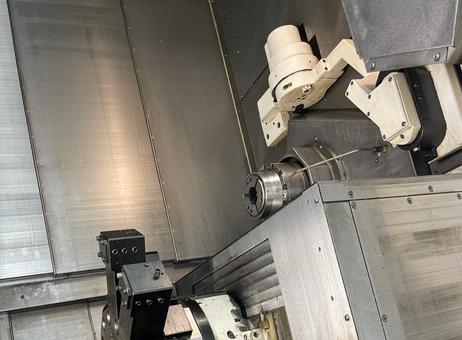

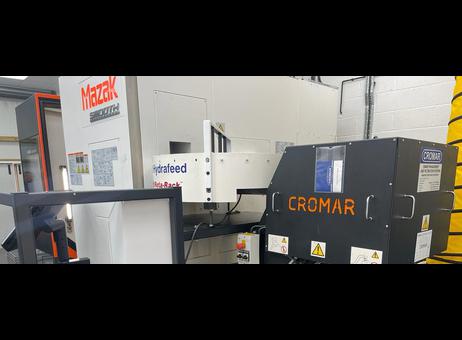

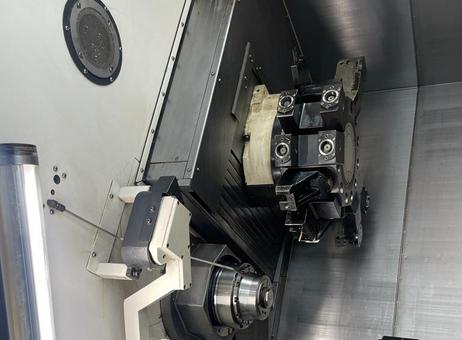

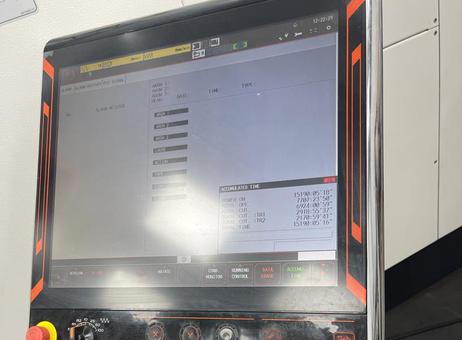

Visual inspection confirms the machine is clean and well-maintained. It features a control panel with a screen and various buttons on the right side, and the main working area houses the tool turret and spindle. There is a yellow extraction or ventilation hose attached to the top of the machine. Adjacent to the lathe is a Cromar branded shaft manager and filtration system, both appearing in good condition. This Mazak HQR-250MSY is a comprehensive CNC lathe solution suitable for complex and high-precision turning tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Control MAZATROL Smooth G
Bar Capacity 80mm
C axis 0.0001 degree
Distance Between Spindles 860mm
Maximum Cutting diameter 344mm
Swing 370mm
Rapid Feedrates X1,X2,Y1,Y2,Z1,Z2: 30 x 24 x 26 x 20 x 36 x 36m/minute
Upper Turret Milling Motor 11kW
Upper Turret Milling Speed 6000rpm
Spindle Motor Power 26/22kW
Spindle Nose A2-8
Spindle Speed 4000rpm
Sub Spindle C axis 0.0001 degree
Sub Spindle Max Speed 5000rpm
Sub Spindle Motor 22/15kW
Sub Spindle Nose A2-6
Sub Spindle Stroke 865mm
Barfeed Hydrafeed MSV80
Boring Bar Holder Diameter 40mm
Lower Turret 12 Station
Lower Turret Milling Motor 11kW
Lower Turret Milling Speed 6000rpm
Tool Size 25 x 25mm
Upper Turret 12 Station
X axis Travel 207mm
X2 axis Travel 141mm
Y axis Travel +/-50mm
Y2 Axis Travel +/-35mm
Z axis Travel 760mm
Z2 axis Travel 815mm
Accessories Rota-Rack Parts Accumulator
Machine Dimensions 4670 x 2701 x 2497mm
Machine Weight 15100kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the bar capacity of this Mazak HQR-250MSY?
This Mazak HQR-250MSY CNC lathe features a bar capacity of 80mm.
What is the maximum machining diameter of the machine?
This Mazak HQR-250MSY CNC lathe has a maximum machining diameter of 344mm.
How many turrets are included with this model?
This Mazak HQR-250MSY CNC lathe includes 2 off 12 Station Turrets.
What is the distance between spindles on this machine?
This Mazak HQR-250MSY CNC lathe has 860mm between spindles.
What is the precision of the C axis on this model?
This Mazak HQR-250MSY CNC lathe is equipped with C axis on both spindles with a precision of 0.0001 degrees.
Does this machine have a Y axis on both turrets?
This Mazak HQR-250MSY CNC lathe features a Y Axis on both turrets.
What is the spindle speed of this Mazak HQR-250MSY?
This Mazak HQR-250MSY CNC lathe has a spindle speed of 4000rpm.
What is the power of the spindle motors on the machine?
This Mazak HQR-250MSY CNC lathe is powered by spindle motors of 22kW.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
