Contact us to receive an offer.
| Manufacturer | MATSUURA |
|---|---|
| Model | H.PLUS -405 |
| Year | 2005 |
| Location | Spain
|

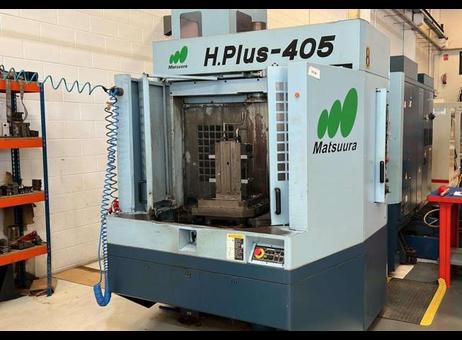

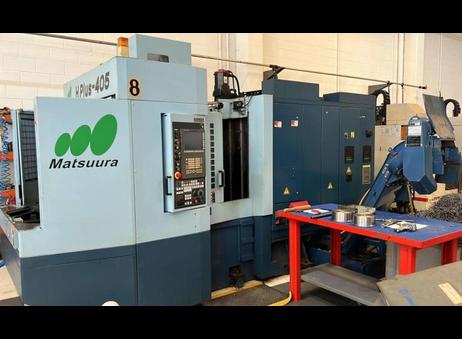

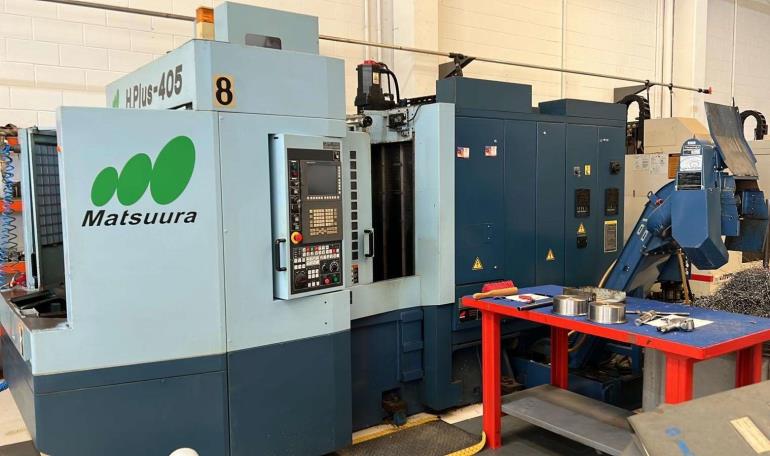

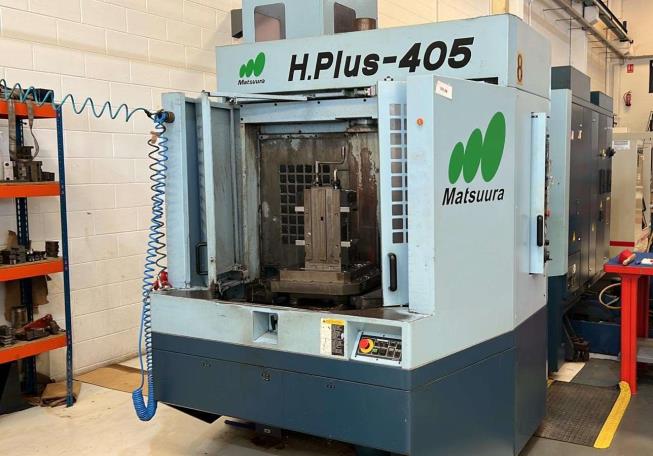

MATSUURA H.PLUS-405 horizontal machining center, manufactured in 2005. The machine is equipped with Fanuc CNC control and an automatic tool changer with 51 tool pockets. A CNC control panel is mounted at the front, and a blue chip-handling unit is visible on the right side.
The machine has X, Y and Z travels of 600 mm each. The table measures 500 x 500 mm and has a maximum load capacity of 400 kg. Maximum spindle speed is 30,000 rpm, with a spindle motor power of 15 kW. The current description lists a maximum workpiece size of 650 mm diameter x 750 mm, a maximum tool diameter of 90 mm, maximum tool length of 350 mm and maximum tool weight of 10 kg. It also lists rapid traverse at 50 m/min and an 80 mm spindle bearing inner diameter. The tool magazine holds 51 tools, and 20 cones are included.
Overall dimensions are 4,500 x 4,500 x 2,500 mm, and the machine weight is 4,800 kg. The machine is marked CE in the current description and is stated to be viewable in operation.

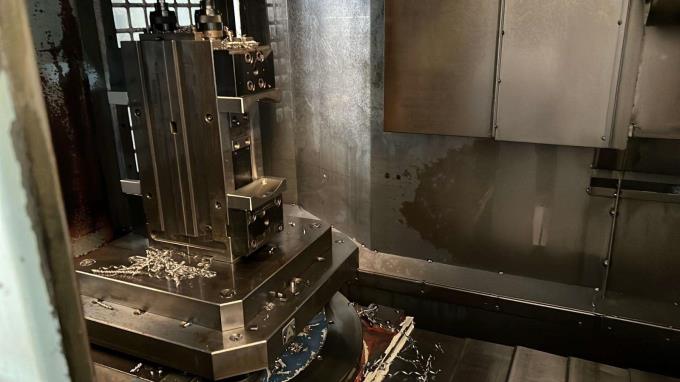

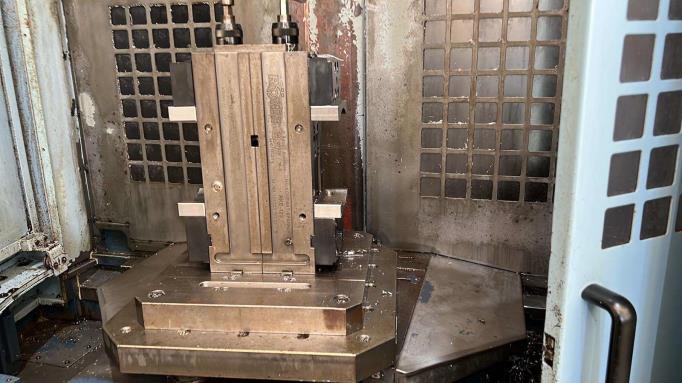

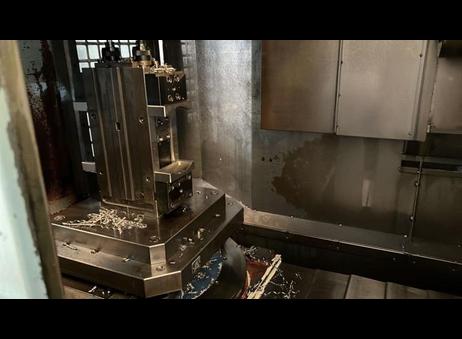

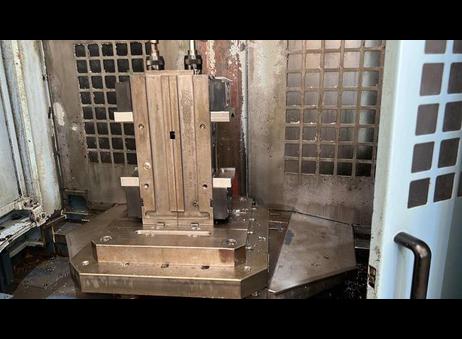

A large upright fixture is mounted on the table inside the enclosure. Metal chips and residue are visible on the table and interior surfaces, with discoloration on some enclosure surfaces. The fixture is present in the machine, but its inclusion with the sale is not specified.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Horizontal machining center with automatic tool changer for 51 tools and accessories. Fanuc CNC
Brand: MATSUURA
Model: H.PLUS - 405
Year: 2005
Fanuc CNC
Work surface on pallet: 500 x 500 mm
Maximum load on pallet: 400 kg
Maximum workpiece size: Diam. 650 x 750 mm
X-axis travel: 600 mm
Y-axis travel: 600 mm
Z-axis travel: 600 mm
Spindle speed: 40–12,000 rpm
Spindle bearing inner diameter: 80 mm
Number of tools: 51
Maximum tool diameter: 90 mm
Maximum tool length: 350 mm
Maximum tool weight: 10 kg
Rapid traverse: 50 m/min
CE
Can be viewed in operation
INCLUDES 20 CONES
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 17 |
| Last activity | Oct. 27, 2026 |
Horizontal machining center with automatic tool changer for 51 tools and accessories. Fanuc CNC
Brand: MATSUURA
Model: H.PLUS - 405
Year: 2005
Fanuc CNC
Work surface on pallet: 500 x 500 mm
Maximum load on pallet: 400 kg
Maximum workpiece size: Diam. 650 x 750 mm
X-axis travel: 600 mm
Y-axis travel: 600 mm
Z-axis travel: 600 mm
Spindle speed: 40–12,000 rpm
Spindle bearing inner diameter: 80 mm
Number of tools: 51
Maximum tool diameter: 90 mm
Maximum tool length: 350 mm
Maximum tool weight: 10 kg
Rapid traverse: 50 m/min
CE
Can be viewed in operation
INCLUDES 20 CONES
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
MATSUURA H.PLUS-405 horizontal machining center, manufactured in 2005. The machine is equipped with Fanuc CNC control and an automatic tool changer with 51 tool pockets. A CNC control panel is mounted at the front, and a blue chip-handling unit is visible on the right side.
The machine has X, Y and Z travels of 600 mm each. The table measures 500 x 500 mm and has a maximum load capacity of 400 kg. Maximum spindle speed is 30,000 rpm, with a spindle motor power of 15 kW. The current description lists a maximum workpiece size of 650 mm diameter x 750 mm, a maximum tool diameter of 90 mm, maximum tool length of 350 mm and maximum tool weight of 10 kg. It also lists rapid traverse at 50 m/min and an 80 mm spindle bearing inner diameter. The tool magazine holds 51 tools, and 20 cones are included.
Overall dimensions are 4,500 x 4,500 x 2,500 mm, and the machine weight is 4,800 kg. The machine is marked CE in the current description and is stated to be viewable in operation.
A large upright fixture is mounted on the table inside the enclosure. Metal chips and residue are visible on the table and interior surfaces, with discoloration on some enclosure surfaces. The fixture is present in the machine, but its inclusion with the sale is not specified.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
