Contact us to receive an offer.
| Manufacturer | Matsuura |
|---|---|
| Model | H.PLUS-405 |
| Year | 2005 |
| Location | Spain
|
This listing features a Matsuura H.PLUS-405 horizontal machining center manufactured in 2005. It is equipped with a Fanuc CNC control system, offering precise and reliable machining capabilities. The machine has a working surface on the pallet measuring 500 x 500 mm, and it can handle a maximum part weight of up to 400 kg. The maximum workpiece size accommodated is 650 mm in diameter by 750 mm in length.

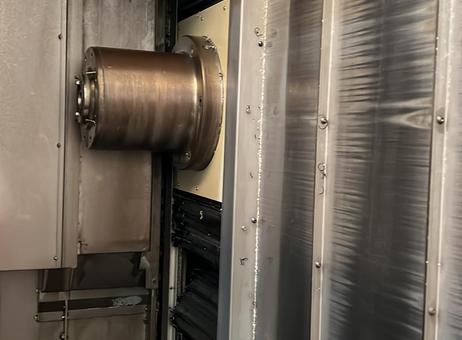

The machining center provides travel distances of 600 mm along the X, Y, and Z axes, allowing for versatile machining operations within this range. The spindle operates at speeds ranging from 40 to 12,000 rpm, supported by a spindle bearing with an inner diameter of 80 mm. This enables a variety of machining tasks requiring different spindle speeds.

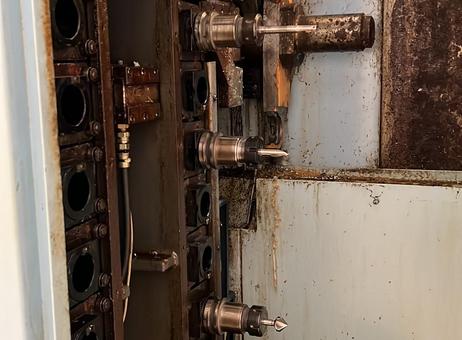

Tool management is facilitated by an automatic tool changer with 31 tool pockets. It supports tools with a maximum diameter of 90 mm, a maximum length of 350 mm, and a maximum weight of 10 kg per tool. Rapid feed rates of up to 50 meters per minute contribute to efficient machining cycles.

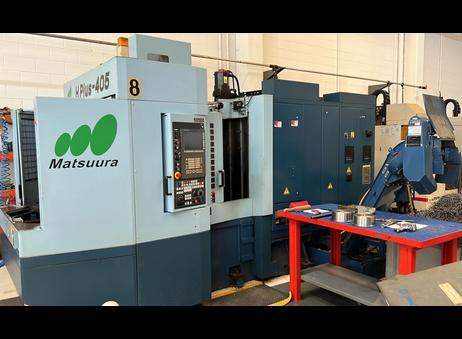

The machine's design includes a control panel with buttons and an emergency stop located on the front right side of the base for operator convenience and safety. A blue coiled air hose is attached to the left side of the machine, which may be used for cleaning or other pneumatic needs.

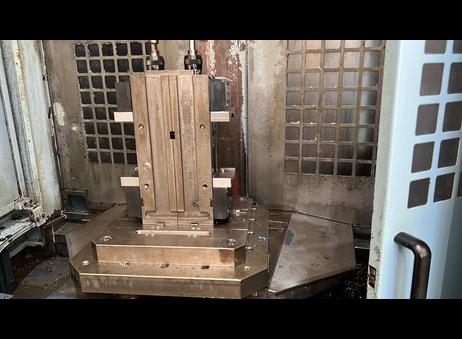

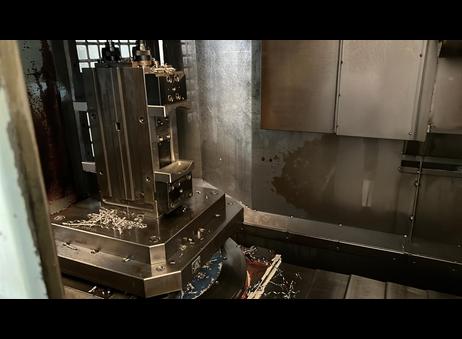

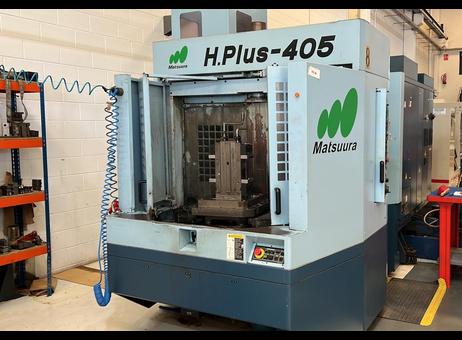

Visual inspection of the machining area reveals signs of use, including some dirt and residue on surfaces, which is typical for a machine of this type and age. The doors are open in the images, showing the spacious machining area and worktable. This horizontal machining center is suitable for various industrial applications requiring precise horizontal milling and drilling operations.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
TECHNICAL FEATURES
Horitzontal machining center MATSUURA
Model H.PLUS-405
Year 2005
CNC Fanuc
Working surface on pallet 500 x 500 mm
Maximum load on pallet 400 Kg
Maximum workpiece size Diam. 650 x 750 mm
X axis travel 600 mm
Y axis travel 600 mm
Z axis travel 600 mm
Spindle speed 40-12000 rpm
Spindle bearing inner diameter 80 mm
Number of tools 31
Maximum tool diameter 90 mm
Maximum tool length 350 mm
Maximum tool weight 10 Kg
Rapid feeds 50 m/min
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
