Contact us to receive an offer.
| Manufacturer | MAS |
|---|---|
| Model | MCV 1270 POWER |
| Year | 2002 |
| Location | Czech Republic
|

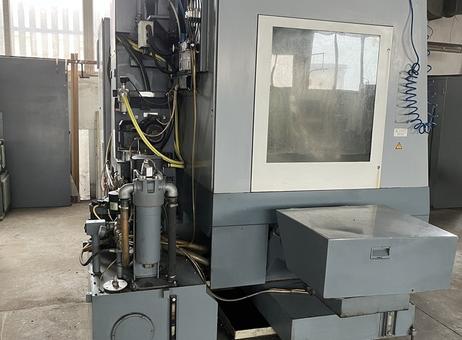

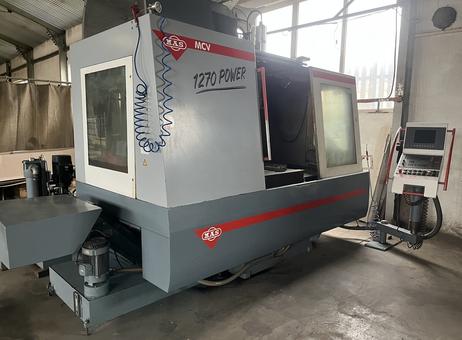

This MAS MCV 1270 POWER is a vertical machining center designed for precision and efficiency in metalworking tasks. Manufactured in 2002, it features a robust construction with dimensions of 5000 mm in length, 3600 mm in width, and 3300 mm in height, and weighs approximately 11,000 kg. The machine offers substantial travel distances across its axes: 1270 mm on the X-axis, 610 mm on the Y-axis, and 720 mm on the Z-axis, allowing for versatile machining capabilities.

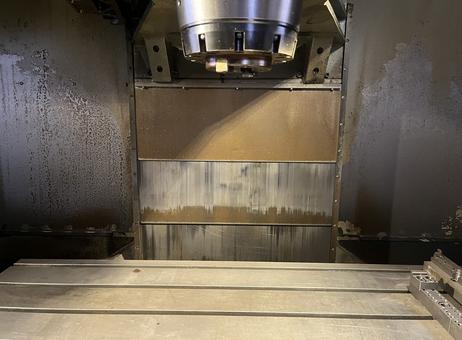

Equipped with a Heidenhain iTNC 530 control system, it supports advanced numerical control for complex machining operations. The machine includes a tool magazine with 24 pockets, facilitating efficient tool changes and extended machining runs. The vertical spindle operates at a maximum speed of 10,000 rpm and utilizes an ISO 50 taper, suitable for a wide range of tooling.

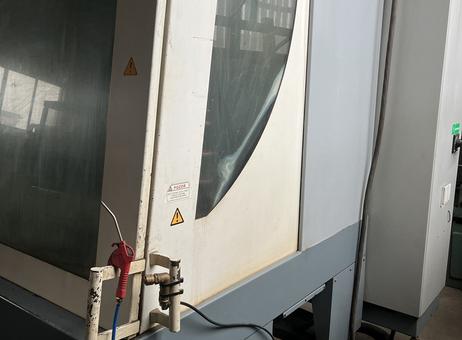

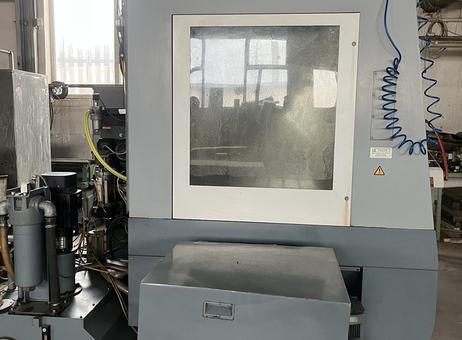

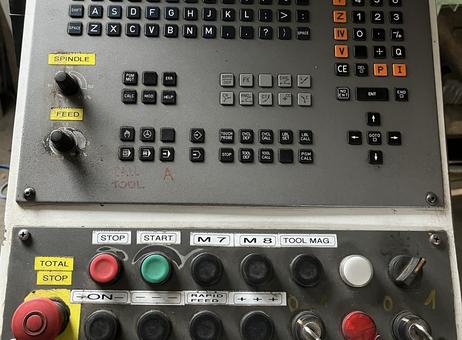

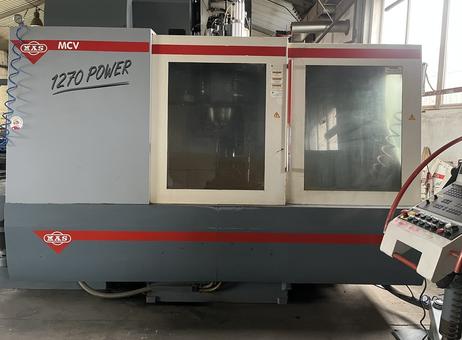

The worktable measures 1500 mm in length and 670 mm in width, and it can accommodate parts weighing up to 1200 kg. The machine is fitted with two large windows on the front doors, providing clear visibility into the machining area while maintaining safety. The control panel is conveniently positioned on the right side of the machine for easy operator access.
Additional equipment includes technical documentation, a workpiece probe, a tool probe, and an internal cooling system operating at 15 bar pressure. Maintenance and repairs have been carried out periodically, including cleaning, hose replacements, sealing of key components, and repairs to the Siemens power module and spindle system.
The exterior shows some signs of use consistent with operational machinery but no visible damage, indicating it has been maintained with care. This machining center is suitable for demanding industrial applications requiring reliable and precise vertical machining capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Characteristic:

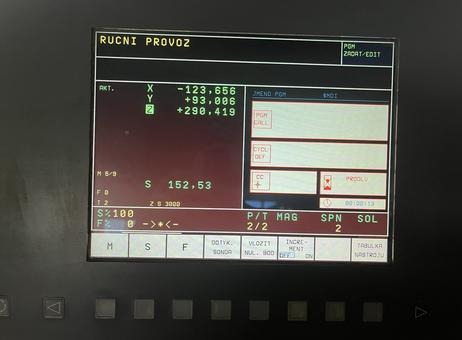

Control system: Heidenhain iTNC 530
Hours on: 1000 h
Number of tools in the magazine: 24 pcs
Maximum rotary speed of the vertical spindle: 10000 1/min
X-Axis travels: 1270 mm
Y-Axis travels: 610 mm
Z-Axis travels: 720 mm
Taper: ISO 50
Machine height: 3300 mm
Machine length: 5000 mm
Machine width: 3600 mm
Machine weight: 11000 kg
Equipment:
Technical books
Workpiece probe
Tool probe

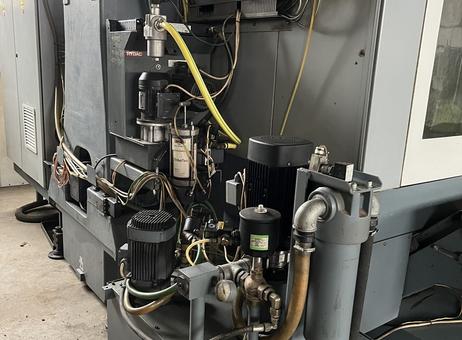

Internal cooling (15 bar)
10/2020:
Complete cleaning and repair of the machine

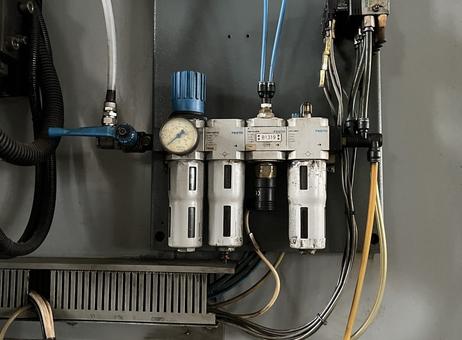

Replacement of the air hoses of the machine
Replacement of the hoses of the coolant line of the tool/workpiece
The piston rod of the tool magazine is sealed
The air/oil clamping manifold is sealed

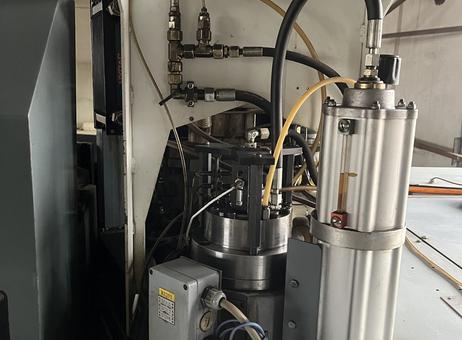

The piston seal of the tool clamping at the top of the spindle is sealed
Checking the automatic lubrication of the machine
8/2022:

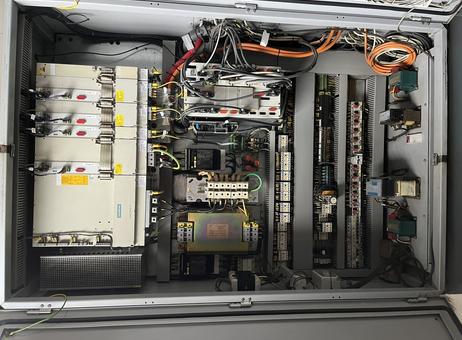

GO complete repair of the main SIEMENS power module
Repair of the AC/DC converter for powering Siemens servomotor amplifiers of the axes
7/2023:

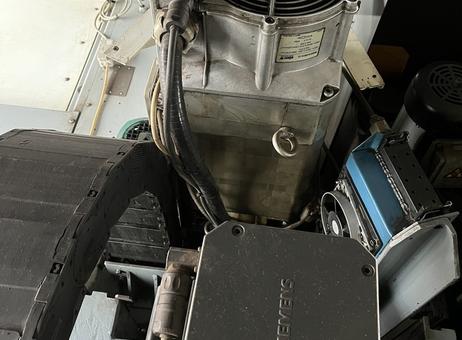

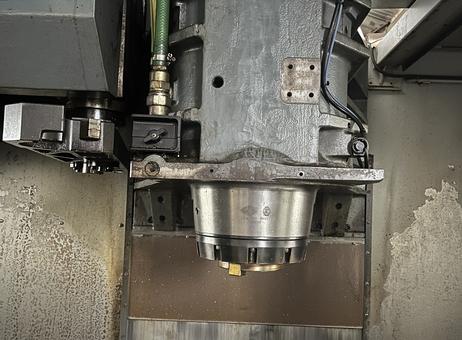

GO complete spindle
Replaced all the spindle cooling hoses on the machine
Replaced the cooling/lubrication hoses of the gearbox
2/2025:
Backup of the machine system and replaced the HDD disk of the Heidenhain system with a new disk
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
