| Manufacturer | MARCHESINI GROUP |
|---|---|
| Model | FB 420 |
| Year | 2006 |
| Location | Italy
|
| Category | Blister machines |
| Forming depth | 42 mm |
| Cycle/min | 50 |
| Engine Power | 36 kW |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 31/03/2026 |
| Product id | P221128025 |
| Language |
MARCHESINI GROUP FB 420
Blistrovací stroj MARCHESINI GROUP FB 420
MARCHESINI GROUP FB 420
MARCHESINI GROUP FB 420 Blistermaschine
MARCHESINI GROUP FB 420
MARCHESINI GROUP FB 420 Blister machine
Máquina blister MARCHESINI GROUP FB 420
Blistéreuse MARCHESINI GROUP FB 420
MARCHESINI GROUP FB 420
MARCHESINI GROUP FB 420
Blisteratrice MARCHESINI GROUP FB 420
MARCHESINI GROUP FB 420
MARCHESINI GROUP FB 420
Blistrownica MARCHESINI GROUP FB 420
MARCHESINI GROUP FB 420
MARCHESINI GROUP FB 420
MARCHESINI GROUP FB 420 Блистерная машина
MARCHESINI GROUP FB 420
MARCHESINI GROUP FB 420
Blister ambalaj makinesi MARCHESINI GROUP FB 420
|
The Marchesini Group FB 420 is a high-production industrial blister packaging machine designed specifically for pharmaceutical applications, complying with GMP standards. Manufactured in 2006, this machine is suitable for forming boxes for vials, syringes, and similar products using various thermoformable materials such as PVC, PET, Polystyrene (PS), PP, PLA, and multilaminate foil. It features a robust stainless steel construction with a clean and well-maintained appearance, ideal for pharmaceutical environments.
Key features include independent brushless motorization for each station, allowing precise control and enhanced reliability. The machine speed is adjustable via a touchscreen control panel, enabling easy format recall and recipe selection. It operates at speeds up to 50 cycles per minute, with a maximum forming depth of 42 mm, accommodating a wide range of product sizes.
The FB 420 is equipped with a double pulling unit with pincers for excellent pitch precision and quick, tool-free format changes. It integrates Robomaster technology for Pick-and-Place product handling and is prepared for seamless line connections with other integrated machines. The machine also supports various high-speed, positive-type automatic product feeding systems.
Technical specifications include a maximum forming area of 254 mm by 320 mm and a maximum cutting area of 248 mm by 310 mm. It has an installed power of 36 kW with the welding station, compressed air consumption of 1150 Nl/min at 6-8 bar, and cooling water consumption of approximately 370 L/h.

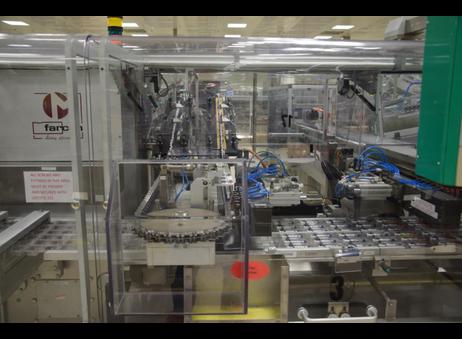

The machine is housed within transparent safety covers and features multiple numbered stations for operational clarity. Blue pneumatic tubes and a rotary indexing table with multiple slots for blister packs are part of the mechanical setup. A warning sign regarding securing screws with Loctite 222 is present, indicating attention to maintenance safety. Accessories observed nearby include a yellow waste bin and a small metal step stool, suggesting readiness for operator use. The FB 420 is a flexible, efficient, and modular solution for pharmaceutical blister packaging needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Machine for high production, flat, balcony, independent brushless motorization for each station, stainless steel finish, managed by PC.
Designed to fit into pharmaceutical production environments, in full compliance with GMP standards, it forms boxes for vials and/or vials, syringes and similar products using thermoformable materials such as PVC, PET, Polystyrene (PS), PP, PLA, multilaminate foil, etc. .
Robustness, modularity, simplicity of operation and ease of format changes make the machine reliable, flexible, efficient and easy to maintain.
Main features:
Independent stations with brushless motorization.
Machine speed adjustable from the panel, recalling the format. Double pulling unit with pincers, great pitch precision.
Quick and simple format change, without the aid of tools: the pitch and the format parameters are automatically selected from the panel by selecting the format recipe.
Integrated Robomaster for Pick-and-Place products.
Prepared for line connections from/to integrated machines.
Wide range of high speed, positive type automatic product feeding systems.
High forming depth (up to 42 mm).
Also available in the ZERO WASTE (FBZ) version with fast shearing (depending on the format configuration).
Technical data:
Max forming depth (mm) up to 42 mm.
Mechanical Speed
Forming/Welding 8-50 cycles/min;
Mechanical speed Standard shear 8-50 cycles/min;
Maximum forming area (mm).
Band (A) max 254 mm.
Wheelbase (B) 320 mm;
Maximum cutting area Band (A) 248 mm;
Wheelbase (B) 310mm.
max speed 48.000 syringes/h.
Machine installed power with welding station 36 KW;
Compressed air consumption (6-8 bar) machine with welding 1150 Nl/min;
Machine cooling water consumption with welding station approx. 370 L/h;
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
