| Manufacturer | MAKINO |
|---|---|
| Model | A61-A60 |
| Year | 2007 |
| Location | Italy
|
| Category | Machining centers - palletized |
| Nbr of pallets | 2 |
| Axis X | 730 mm |
| Axis Y | 650 mm |
| Axis Z | 730 mm |
| Type | Horizontal |
| CNC | Makino Professional 5 |
| Palette length | 500 mm |
| Palette width | 500 mm |
| Number of tool pockets | 60 |
| Spindle taper | HSK 63 |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | yes |
| status | visible |
| Last availability date | 04/10/2026 |
| Product id | P230425080 |
| Language |
MAKINO A61-A60
Obráběcí centrum - paletizované MAKINO A61-A60
MAKINO A61-A60
MAKINO A61-A60 Paletten-Bearbeitungszentrum
MAKINO A61-A60
MAKINO A61-A60 Machining center - palletized
Centro de mecanizado paletizado MAKINO A61-A60
Centre d’usinage palettisé MAKINO A61-A60
MAKINO A61-A60
MAKINO A61-A60
Centro di lavoro con cambio pallet MAKINO A61-A60
MAKINO A61-A60
MAKINO A61-A60
Centrum obróbcze z wymianą palet MAKINO A61-A60
MAKINO A61-A60
MAKINO A61-A60
MAKINO A61-A60 Высокоточный обрабатывающий центр
MAKINO A61-A60
MAKINO A61-A60
Paletli işleme merkezi MAKINO A61-A60
|
This MAKINO A61-A60 horizontal machining center, manufactured in 2007, features a palletized design with two pallets, each measuring 500 x 500 mm. The machine offers a table load capacity of 500 kg, supporting substantial workpieces. It provides travel distances of 730 mm along the X-axis, 650 mm along the Y-axis, and 730 mm along the Z-axis, allowing versatile machining operations. The CNC control system is the Makino Professional 5, known for precise and reliable performance. Rapid traverse rates for the X, Y, and Z axes reach up to 60 m/min, facilitating efficient machining cycles. The distance from the spindle nose to the pallet center ranges between 70 and 800 mm, accommodating various workpiece sizes.
The tool magazine holds up to 60 tools, with a tool tape designed for HSK 63 tool holders. Maximum tool dimensions include a diameter of 70 mm, length of 360 mm, and a maximum tool weight of 12 kg. The machine supports tools up to Ø800 x 1000 mm, enhancing its capability for diverse machining tasks. An optional high-pressure pump operating at 15 bar is included, which can be beneficial for coolant delivery or chip evacuation.

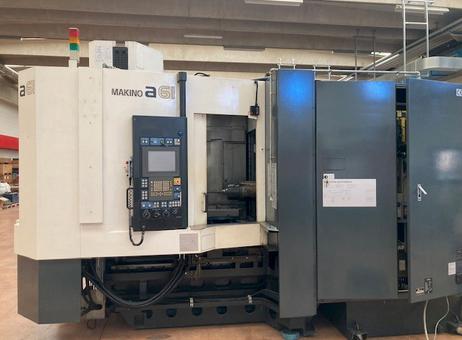

The machine's exterior is clean and in good condition, showing only minor signs of use. A control panel with a screen and buttons is located on the left side for operator interface. The machining area features an open door revealing the spindle or chuck. On the right side, there is a large grey electrical cabinet with an attached label. This setup indicates that the machine is well-maintained and ready for integration into a production environment requiring precise horizontal machining capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Pallet dimensions: 500x500mm
2 Pallets
Table load: 500Kg
X-Axis: 730mm
Y-Axis: 650mm
Z-Axis: 730mm
CNC-Control: Makino Professional 5
Rapid x/y/z: 60 m/min
Distance spindle nose - pallet centre : 70-800mm
Magazine places: 60
Tape: HSK 63
Max. tool dimensions: Ø800x1000mm
Max.tool weight: 12Kg
Max. tool length:360mm
Max. tool diameter: 70mm
Options: High pressure pump 15Bar
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
