| Manufacturer | Maegerle Mägerle Kellenberger Studer Kesel Habrama* |
|---|---|
| Model | MFP-L-260-75 |
| Year | 2009 |
| Location | Germany
|

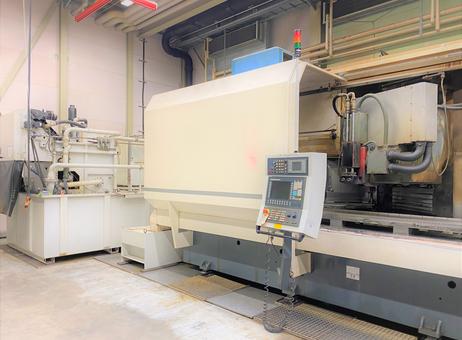

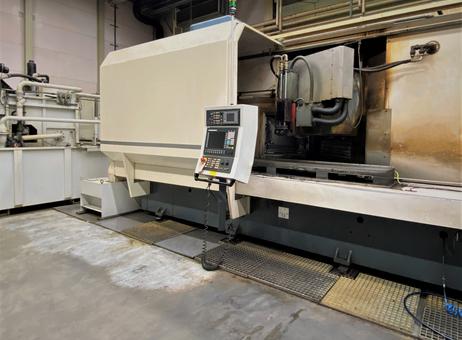

This listing is for a Mägerle MFP-L-260-75 high-precision rack grinding machine manufactured in 2009 by Mägerle Switzerland. The machine is designed for large-scale industrial grinding applications and features a robust construction with a protective enclosure surrounding the grinding area. It includes a control panel mounted on a swinging arm, equipped with a screen and multiple buttons for operational control. The control panel also has an emergency stop button for safety.

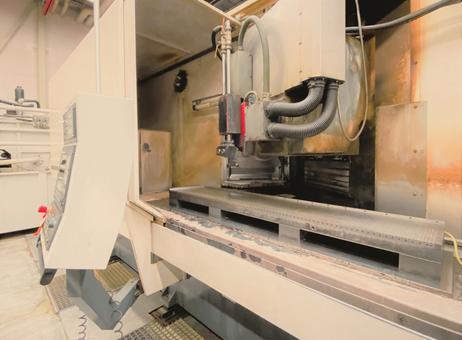

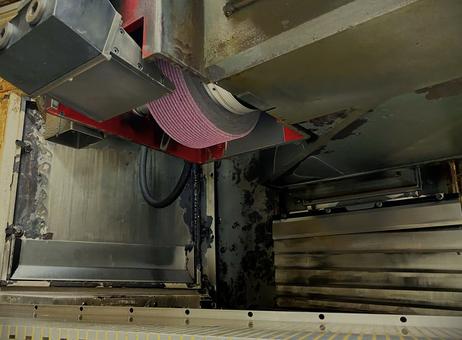

The grinding head assembly is housed inside the enclosed working area and is connected with multiple hoses and piping, indicating a complex grinding setup. A conveyor or chip removal system is attached to the rear side of the machine to manage debris generated during operation. On top of the enclosure, a safety light stack is installed as a visual indicator.
The machine shows signs of use, with some dirt, discoloration, and wear visible on the enclosure surfaces and interior components, which is typical for a used industrial machine.
Key specifications from available documentation include a longitudinal stroke of 2600 mm, grinding wheel diameter of 400 mm, and grinding wheel drive power of 75 kW. The machine requires a total connected load of 113 kVA and weighs approximately 21,000 kg. It occupies a space of approximately 7.06 m in length, 2.7 m in width, and 3.26 m in height.
Complete and detailed technical documentation is available with the machine. This Mägerle MFP-L-260-75 is suitable for precision grinding tasks requiring substantial capacity and advanced control features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Mägerle High-Precision Rack Grinding Machine MFP-L
Manufacturer: Mägerle Switzerland
Type: MFP-L-260-75
Year of Manufacture: 2008
Control Unit: Siemens 840D Sinumerik
Incl. Handwheel
Year of Manufacture: 10/2008
Travel Path: Table Clamping Surface X = 2202 mm
Table Clamping Surface Z = 352 mm
Longitudinal Stroke: 2600 mm
Cross Stroke: Grinding support cross stroke: 650 mm
Distance between table and grinding spindle axis: 806 mm
Grinding wheel dimensions: Diameter 400 mm, Width 160 mm, Bore 127 mm
Peripheral speed of grinding wheel: 35 (50) m/s
Lifting speed: Longitudinal 30 m/min, Transverse 5 m/min, Vertical 5 m/min
Minimum infeed: 0.001 mm
Drive power: Grinding wheel (AC) 75 kW
Total connected load: Machine 113 kVA

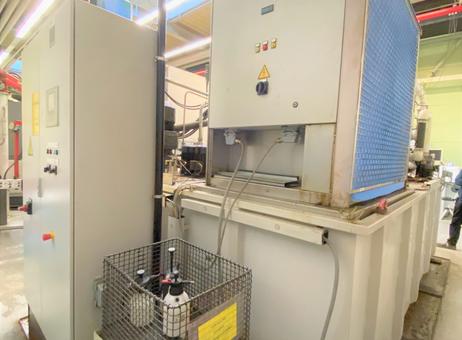

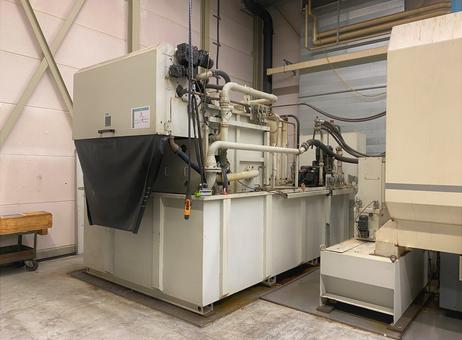

Knoll coolant filtering equipment dimensions approx.: (L x W x H): 5.6 m x 2.4 m x 3m
[Weight]: 2,000 kg
Machine weight: 21,000 kg
Space required (L x W x H): approx. 7.06 m x 2.7 m x 3.26 m
Complete documentation is available.
Detailed technical documentation is available.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
