Contact us to receive an offer.
| Manufacturer | LVD |
|---|---|
| Model | Siena strippit 1212 |
| Year | 2005 |
| Location | Poland
|
The LVD Siena Strippit 1212 is a CNC punching machine manufactured in 2005 by LVD Group NV in Belgium. Designed for precise punching of steel and aluminum sheets, this machine features a robust one-piece frame and a compact design, which ensures high flexibility and reliability for both individual and series production. It is equipped with a 27-position STRIPPIT turret head that includes 3 auto-index stations and supports MultiTool tools, allowing for versatile punching operations.
The machine delivers a maximum pressing force of 20 tons and accommodates metal sheets up to 2500 mm in length and 1250 mm in width, with a maximum steel thickness of 6.4 mm. It can punch holes with diameters up to 88.9 mm in 2 mm mild steel and 30 mm in 6 mm mild steel, maintaining a punching accuracy of ±0.01 mm. The tool length is 205 mm. The working area corresponds to the maximum sheet dimensions, and the machine can handle sheet weights up to 50 kg.
Control is managed via a GE FANUC Series 180i CNC system, which includes a Smart Stroke function for automatic optimization of punching cycles. The machine measures 8500 mm in length, 6300 mm in width, and 2100 mm in height, with a total weight of 11,400 kg.

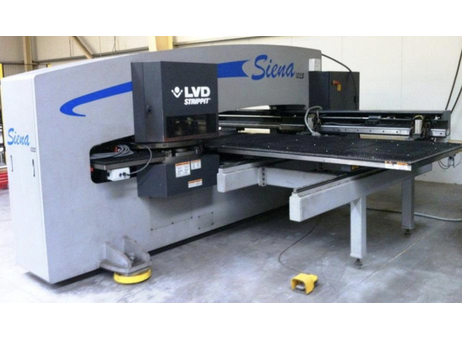

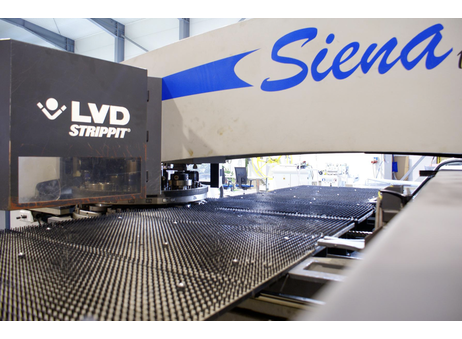

The machine is presented in a clean indoor industrial environment and shows no visible damage. It features a large worktable with numerous small metal support pins arranged in a grid pattern, which help support the sheet metal during processing. The worktable includes support arms extending from the main body to provide stability. A yellow foot pedal is positioned near the machine for operation control. The main control box prominently displays the LVD Strippit logo. The turret area is surrounded by a metal platform with an anti-slip pattern, and safety features include a red emergency stop button and visible warning labels on the metal housing. Overall, the machine appears well-maintained with only minor surface marks on the body.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The LVD Siena strippit 1212 punching machine was manufactured in 2005 in Belgium by LVD Group NV. The machine designed for precise punching of steel and aluminum sheets is distinguished by the use of reliable components with excellent parameters, which guarantee a wide range of possibilities and high flexibility of processing. In combination with a compact design based on a one-piece frame, the SIENA 20 1212 turret press is an irreplaceable tool for both individual and series production, while offering easy operation and a fast set-up time.

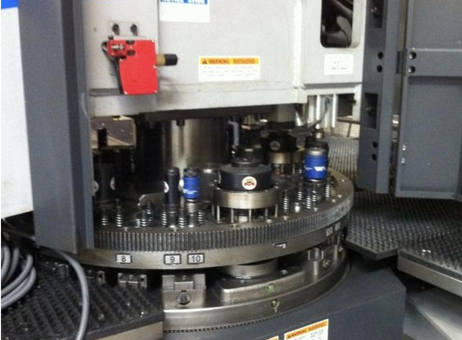

The LVD STRIPPIT 1212 sheet metal punching machine is equipped with, among others, a 27-position STRIPPIT turret head with 3 auto-index stations and support for MultiTool tools. The tools punch sheets with a force of 20 tons on a large brush table, which protects the surface of the detail from scratches and abrasions, while increasing the quality of the processing performed. The whole is completed by a GE FANUC CNC control with a unique Smart Stroke function for automatic optimization of punching cycles. The total weight of the machine is 11,400 kg.
- CNC control : GE FANUC Series 180i
- maximum pressing force : 20 t
- X/Y axis feed : 1326.2/1337.1 mm
- working area area (L x W): 2500 x 1250 mm
- maximum sheet thickness : 6.4 mm
- maximum sheet dimensions (L x W): 2500 x 1250 mm
- maximum sheet weight : 50 kg
- hole diameter (2 mm mild steel): 88.9 mm
- hole diameter (6 mm mild steel): 30 mm
- punching accuracy: ± 0.01 mm
- 27-station STRIPPIT turret head with 3 auto-index stations
- tool length : 205 mm
- dimensions (L x W x H): 8500 x 6300 x 2100 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 425 |
| Last activity | Oct. 26, 2026 |
The LVD Siena strippit 1212 punching machine was manufactured in 2005 in Belgium by LVD Group NV. The machine designed for precise punching of steel and aluminum sheets is distinguished by the use of reliable components with excellent parameters, which guarantee a wide range of possibilities and high flexibility of processing. In combination with a compact design based on a one-piece frame, the SIENA 20 1212 turret press is an irreplaceable tool for both individual and series production, while offering easy operation and a fast set-up time.
The LVD STRIPPIT 1212 sheet metal punching machine is equipped with, among others, a 27-position STRIPPIT turret head with 3 auto-index stations and support for MultiTool tools. The tools punch sheets with a force of 20 tons on a large brush table, which protects the surface of the detail from scratches and abrasions, while increasing the quality of the processing performed. The whole is completed by a GE FANUC CNC control with a unique Smart Stroke function for automatic optimization of punching cycles. The total weight of the machine is 11,400 kg.
- CNC control : GE FANUC Series 180i
- maximum pressing force : 20 t
- X/Y axis feed : 1326.2/1337.1 mm
- working area area (L x W): 2500 x 1250 mm
- maximum sheet thickness : 6.4 mm
- maximum sheet dimensions (L x W): 2500 x 1250 mm
- maximum sheet weight : 50 kg
- hole diameter (2 mm mild steel): 88.9 mm
- hole diameter (6 mm mild steel): 30 mm
- punching accuracy: ± 0.01 mm
- 27-station STRIPPIT turret head with 3 auto-index stations
- tool length : 205 mm
- dimensions (L x W x H): 8500 x 6300 x 2100 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The LVD Siena Strippit 1212 is a CNC punching machine manufactured in 2005 by LVD Group NV in Belgium. Designed for precise punching of steel and aluminum sheets, this machine features a robust one-piece frame and a compact design, which ensures high flexibility and reliability for both individual and series production. It is equipped with a 27-position STRIPPIT turret head that includes 3 auto-index stations and supports MultiTool tools, allowing for versatile punching operations.
The machine delivers a maximum pressing force of 20 tons and accommodates metal sheets up to 2500 mm in length and 1250 mm in width, with a maximum steel thickness of 6.4 mm. It can punch holes with diameters up to 88.9 mm in 2 mm mild steel and 30 mm in 6 mm mild steel, maintaining a punching accuracy of ±0.01 mm. The tool length is 205 mm. The working area corresponds to the maximum sheet dimensions, and the machine can handle sheet weights up to 50 kg.
Control is managed via a GE FANUC Series 180i CNC system, which includes a Smart Stroke function for automatic optimization of punching cycles. The machine measures 8500 mm in length, 6300 mm in width, and 2100 mm in height, with a total weight of 11,400 kg.
The machine is presented in a clean indoor industrial environment and shows no visible damage. It features a large worktable with numerous small metal support pins arranged in a grid pattern, which help support the sheet metal during processing. The worktable includes support arms extending from the main body to provide stability. A yellow foot pedal is positioned near the machine for operation control. The main control box prominently displays the LVD Strippit logo. The turret area is surrounded by a metal platform with an anti-slip pattern, and safety features include a red emergency stop button and visible warning labels on the metal housing. Overall, the machine appears well-maintained with only minor surface marks on the body.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 425 |
| Last activity | Oct. 26, 2026 |
