| Manufacturer | LUZHONG MACHINE TOOL |
|---|---|
| Model | HMC1000 |
| Year | |
| Location | Ukraine
|

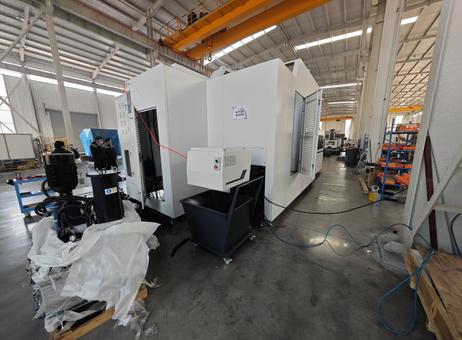

The LUZHONG MACHINE TOOL HMC1000 is a horizontal machining center designed for precision and efficiency in industrial machining tasks. It features a worktable measuring 1000 mm by 1000 mm, capable of supporting a maximum part weight of 1500 kg. The machine provides substantial travel distances across its axes: 1600 mm along the X-axis, 1000 mm along both the Y and Z axes. The spindle center to table surface distance ranges from 120 mm to 1120 mm, with a spindle nose to table center distance of 200 mm to 1200 mm, allowing for versatile machining capabilities.

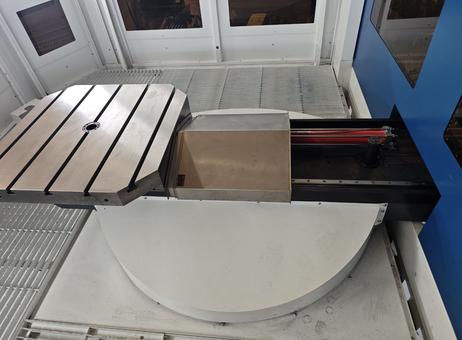

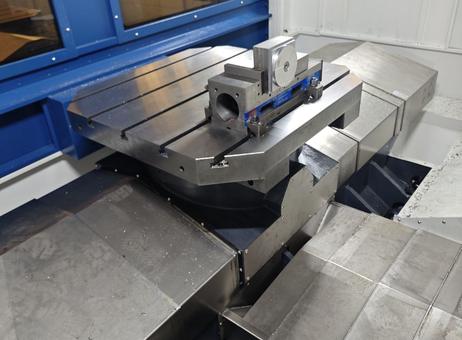

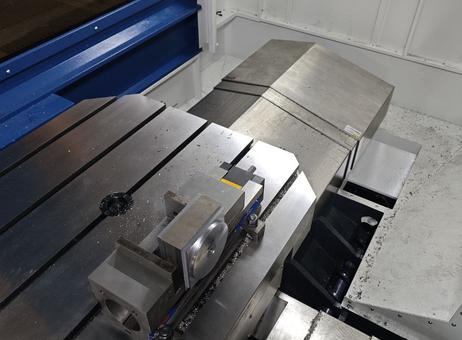

Equipped with a single worktable featuring five T-slots (22 mm width and 125 mm pitch), the table offers 360-degree indexing with 1-degree increments and a maximum rotation speed of 10 rpm. The machine's spindle operates with a BT50 taper and reaches speeds up to 6000 rpm, powered by an 18.5 kW motor. It supports a cutting feed speed range of 1 to 10,000 mm/min and rapid traverse speeds of up to 24 m/min.

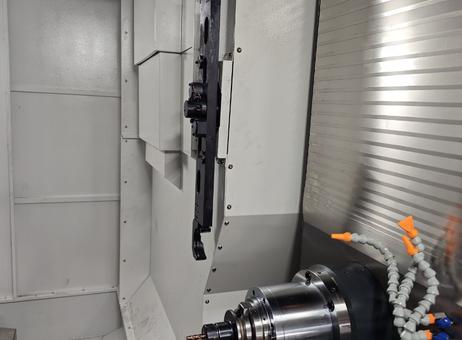

The HMC1000 includes a 30-position arm-type tool magazine accommodating tools up to 112 mm in diameter (200 mm with adjacent pockets empty), lengths up to 400 mm, and weights up to 18 kg. Tool changes are efficient, with an average time of 3 seconds per tool change. Positioning accuracy is high, with 0.012 mm accuracy and 0.008 mm repeatability on the X, Y, and Z axes, and angular positioning accuracy of 10 seconds with 5 seconds repeatability on the B axis.

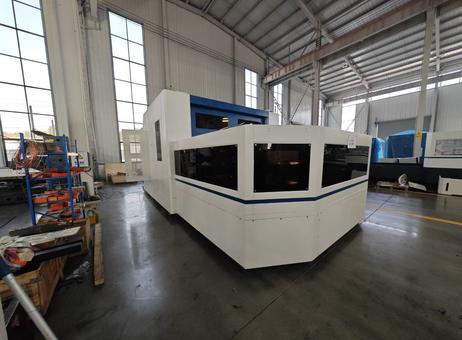

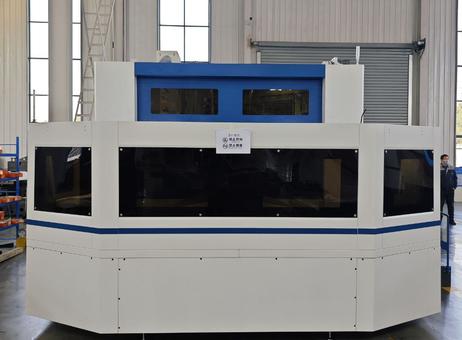

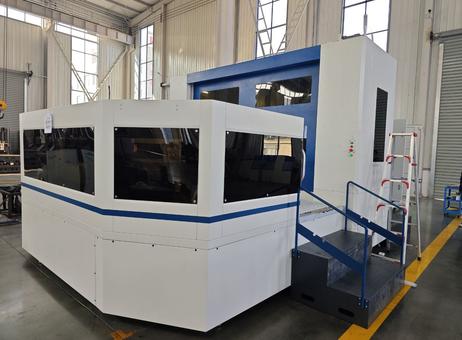

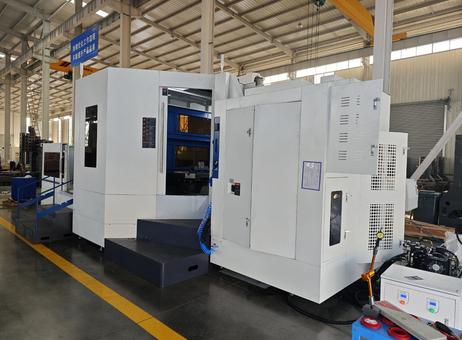

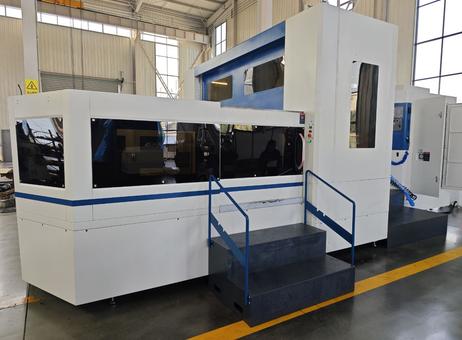

The machine's overall dimensions are 5300 mm in length, 3900 mm in width, and 3300 mm in height, with a total weight of approximately 18,000 kg. Included with the machine are a Fanuc 0i TF(5) CNC controller, lighting for the work area, an automatic lubrication system, chip removal conveyor, coolant supply system, and an air conditioning system for the work cabinet. The machine enclosure incorporates tinted windows, and access is provided via blue metal stairs with handrails. The machine appears clean and well-maintained with no visible damage.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Table size, mm: 1000*1000
X axis travel, mm: 1600
Z axis travel, mm: 1000
Y axis travel, mm: 1000
Distance from spindle center to table surface, mm: 120- 1120
Distance between spindle nose and table center, mm: 200- 1200
Table quantity, pcs: 1
T slot(number-width*pitch) , mm: 5-22*125
Max. worktable load, kg: 1500
Table indexing: 1°*360
Maximum speed of table, r/min: 10
Main motor power, kw: 15/18.5

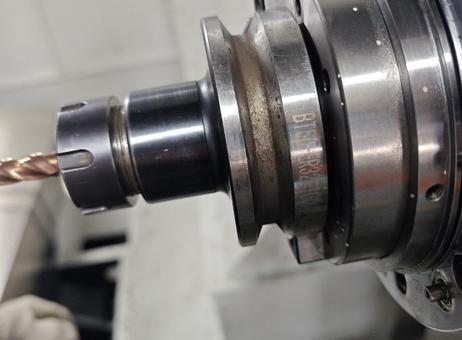

Spindle taper: BT50-190
Max. spindle speed, rpm: 6000
Cutting feed speed, mm/min: 1-10000
Rapid traverse speed, m/min: 24 / 20/ 24
Tool magazine: Arm 30
Max. tool diameter, mm: 112/200
Max. tool length, mm: 400
Max. tool weight, kg: 18
Tool change time (tool to tool), sec: 3
Machine minimum setting unit, mm: 0.001
X,Y,Z axis positioning accuracy, mm: 0.012
X,Y,Z axis repeat positioning accuracy, mm: 0.008
B axis positioning accuracy: 10″
B axis repeat positioning accuracy: 5″
Machine weight, kg: 18000
Overall dimension, mm: 5300*3900*3300
Description
Horizontal Machining Center HMC1000
The machine set includes:
• Machine HMC1000
• CNC controller Fanuc 0i TF(5)

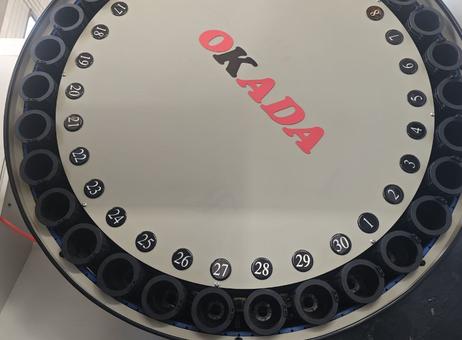

• 30-position Okada tool changer form

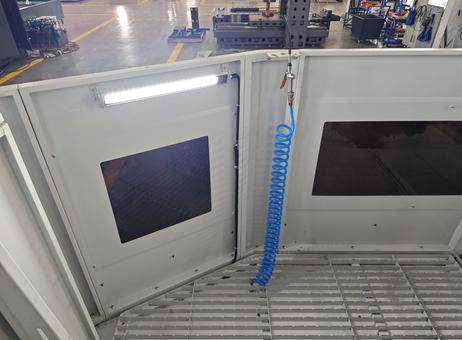

• Lighting of the work area

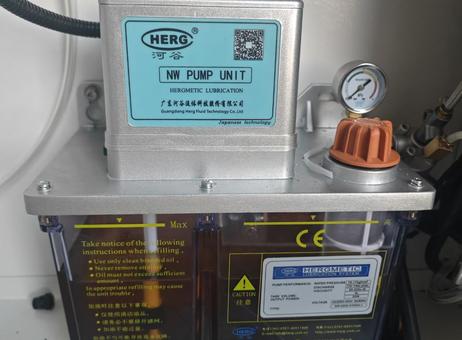

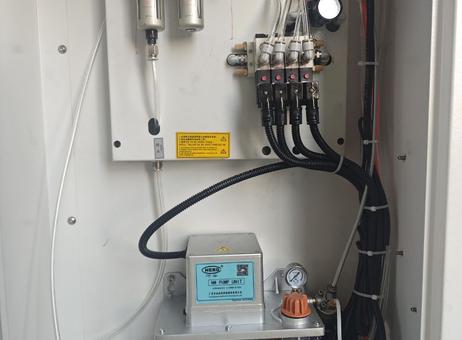

• Automatic lubrication system

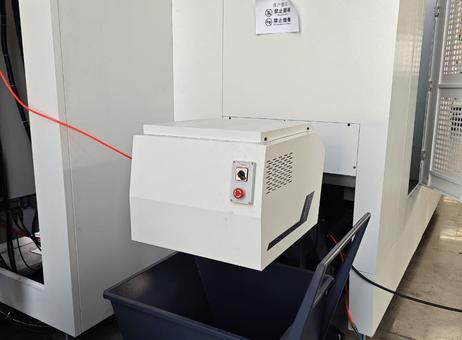

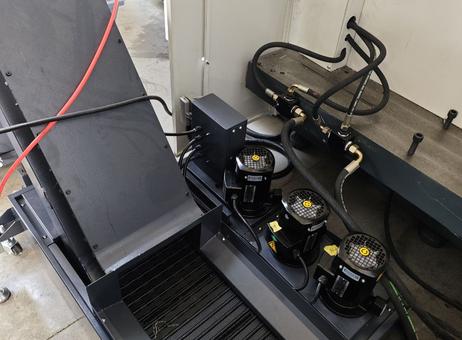

• Automatic chip removal conveyor
• Coolant supply system

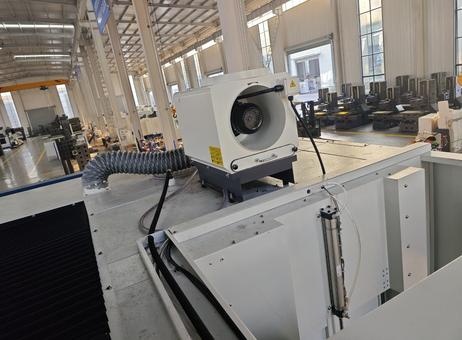

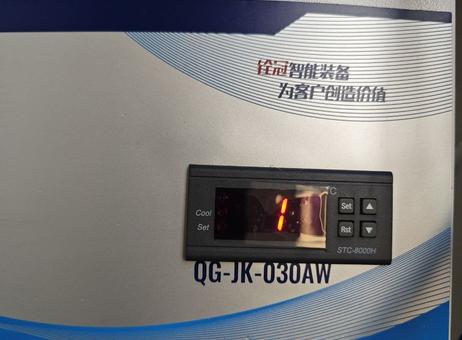

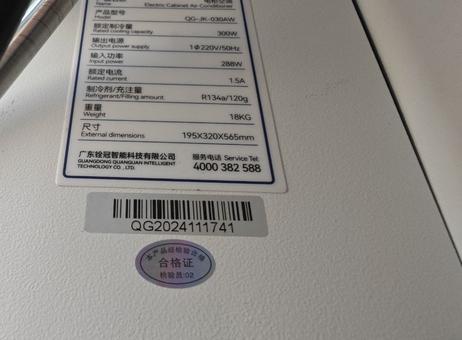

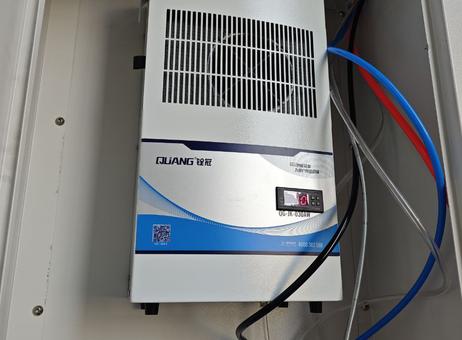

• Air conditioning system of the work cabinet
• User's manual
