| Manufacturer | LUZHONG MACHINE TOOL |
|---|---|
| Model | CK5116/1400 |
| Year | |
| Location | Ukraine
|
The LUZHONG MACHINE TOOL CK5116/1400 is a CNC vertical turret lathe designed for heavy-duty machining applications. This machine features a large worktable with a diameter of 1400 mm, capable of handling maximum workpiece diameters up to 1600 mm and machining heights of up to 1400 mm. It supports a maximum load on the worktable of 5000 kg, making it suitable for machining large and heavy components.
The table rotation speed ranges from 5 to 160 rpm, driven by a 30 kW motor, providing flexibility for various machining operations. The maximum torque of the worktable is rated at 25 kNm. The lathe includes a 5-position electro-driven tool magazine, accommodating tools with a maximum shank size of 30x40 mm. It offers precise movements with longitudinal feed rates from 0.1 to 500 mm/min, horizontal carriage travel of 915 mm, vertical carriage travel of 800 mm, lifting speed of 440 mm/min, and rapid traverse speed of 3750 mm/min.

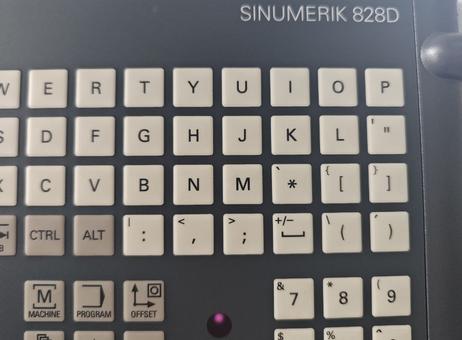

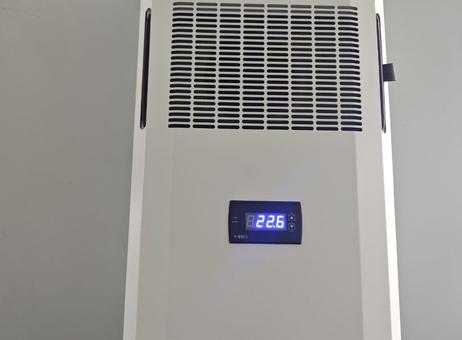

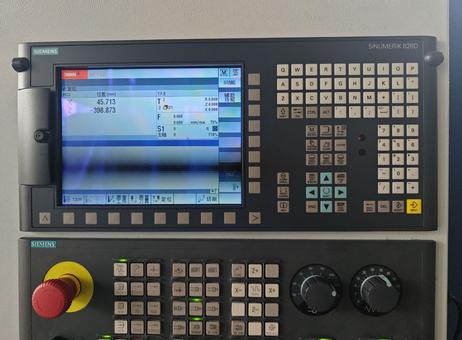

The machine set comes equipped with a Siemens 828D CNC controller, facilitating advanced programming and control. Additional features include a spindle oil cooling system, an automatic chip removal conveyor, a coolant supply system, and an air conditioning system for the work cabinet, enhancing operational efficiency and machine longevity.

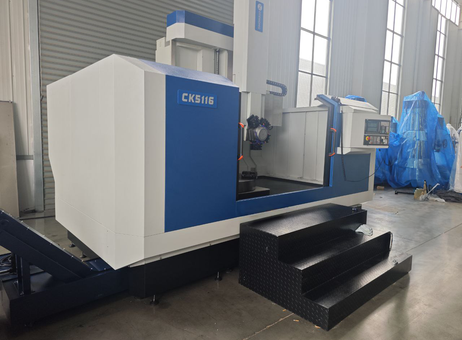

Physically, the lathe measures 5000 mm in length, 3200 mm in width, and 3870 mm in height, with a total weight of 13,500 kg. The machine appears clean and well-maintained, with no visible damage. It includes a turret tool holder with multiple tool positions inside the enclosure and a CNC control panel mounted on the right side, accessible via black metal steps for operator convenience. A user manual is provided to assist with operation and maintenance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Maximum workpiece diameter, mm: 1600
Table diameter, mm: 1400
Maximum machining height, mm: 1400
Maximum load on the worktable, kg: 5000
Table rotation speed, rpm: 5-160
Maximum torque of the worktable, kNm: 25
Table rotation drive power, kW: 30
Tool magazine type: electro
Number of tool positions, pcs: 5
Maximum shank size, mm: 30*40
Longitudinal feed range, mm/min: 0,1-500
Horizontal carriage travel, mm: 915
Vertical carriage travel, mm: 800
Lifting speed, mm/min: 440
Rapid traverse speed, mm/min: 3750
Weight, kg: 13500
Dimensions, mm: 5000*3200*3870
Description
CNC vertical lathes CK5116/1400
The machine set includes:
• Machine CK5116/1400

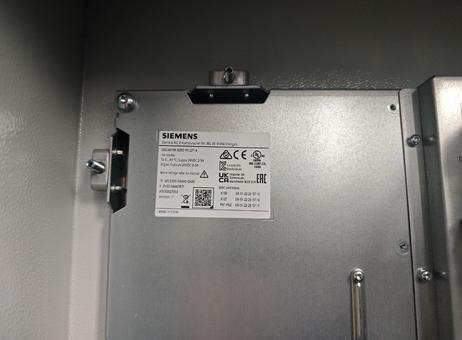

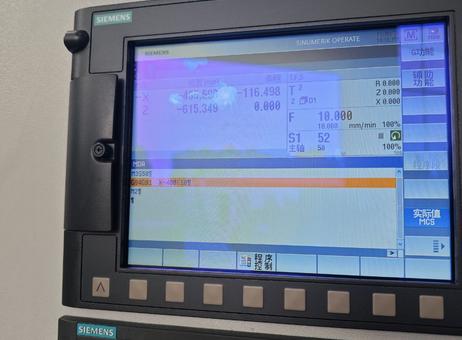

• CNC controller (Siemens 828D)

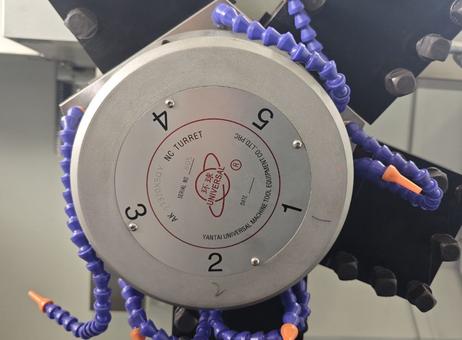

• 5-position tool holder with electric drive

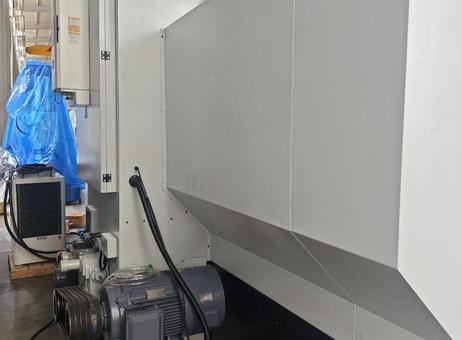

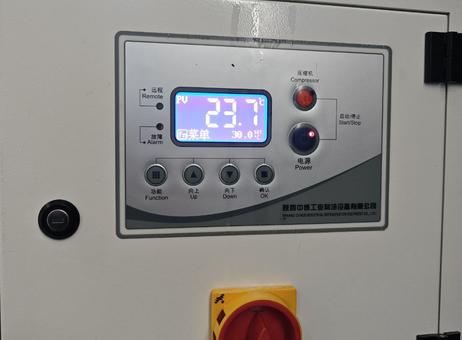

• Spindle oil cooling system

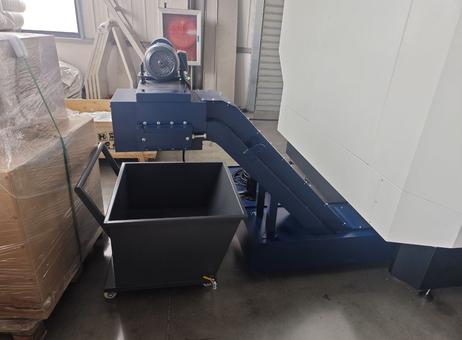

• Automatic chip removal conveyor
• Coolant supply system
• Air conditioning system of the work cabinet
• User's manual
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
